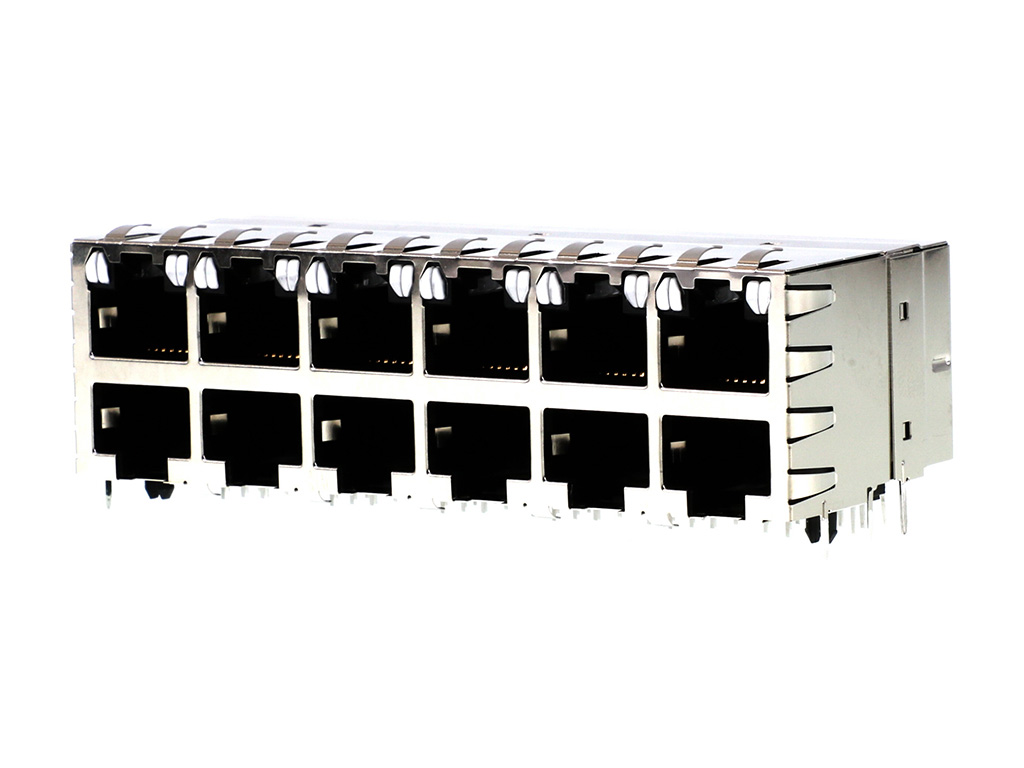

441700002 Modular Jack 8/8,RJ45 by Molex
Modular Jack, Right-Angle, Shielded, Lightpipes, Stacked, 8/8, 12 Ports
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
44170-0002,
0441700002 |
Where to Buy
Prices starting from US$37.43
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$58.23
|
0
in stock
|
Buy Now |
|
Avnet America
from US$37.43
|
0
in stock
|
Buy Now |
|
RS Americas
from US$64.42
|
0
in stock
|
Buy Now |
|
Conrad
from US$60.06
|
0
in stock
|
Buy Now |
|
Sager
from US$40.37
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$39.74
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$68.65
|
0
in stock
|
Buy Now |
|
Farnell
from US$84.13
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 8/8,RJ45 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | Yes |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Color Resin | Black, Clear |
| Durability Mating Cycles Max | 500 |
| Flammability | 94V-0 |
| Inverted Top Latch | Yes |
| Jack Height | 25.41mm |
| Light Pipes Leds | Lightpipes |
| Material Metal | Brass, Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Polycarbonate, Polyester |
| Net Weight | 63.099/g |
| Orientation | Right Angle (Side Entry) |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 1.270µm |
| Plating Min Termination | 2.540µm |
| Port Configuration | 2x6 |
| Positions Loaded Contacts | 8/8 |
| Temperature Range Operating | -40° to +80°C |
| Termination Interface Style | Through Hole |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Modjack Cat5 Stacked W/Lightpipe 12 Port Rohs Compliant: Yes |Molex 44170-0002 | Newark Electronics |
| MODJACK CAT5 STACKED W/LIGHTPIPE 12 PORT | Avnet America |
| JACK, STACKED MODULAR JACK WITH LIGHT PIPES, 8, POLYESTER, GLASS-FILLED, BLACK | RS Americas |
| Molex Molex 441700002 MODJACK STK CAT 5 441700002 1 St. | Conrad |
| Modular Connectors / Ethernet Connectors ModJack Cat5 Stacked W/Lightpipe 12 Port | Sager |
| MODJACK CAT5 STACKED W/LIGHTP PE 12 PORT | Heilind Americas |
