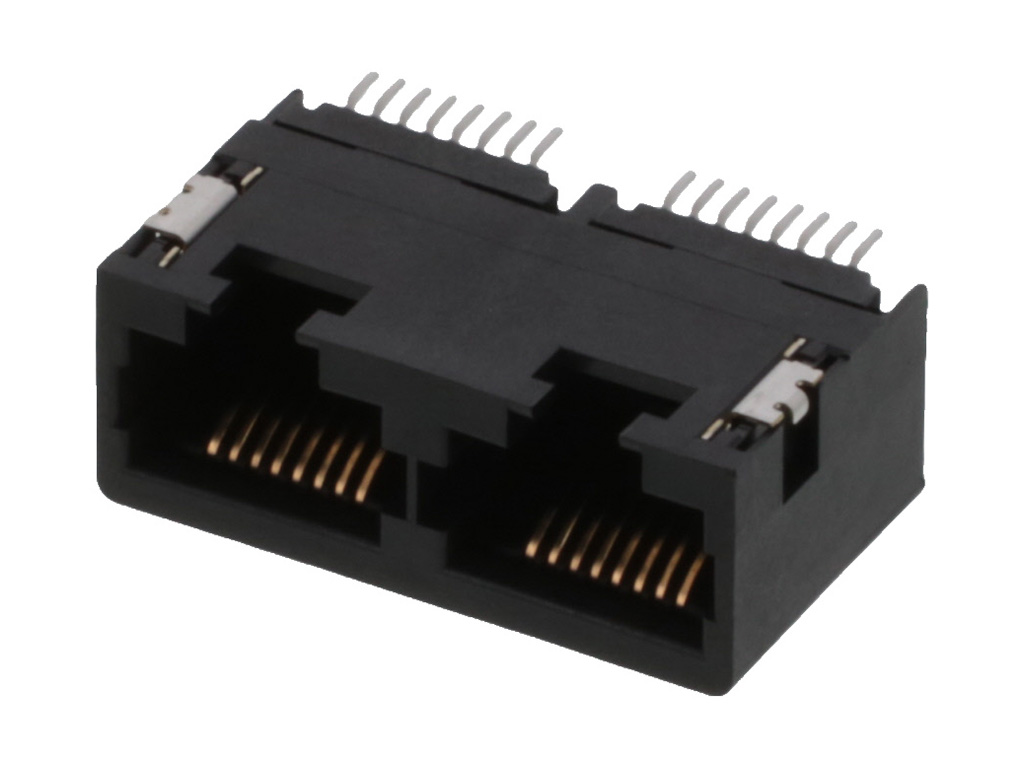

441930003 Modular Jack 8/8,RJ45 by Molex
Modular Jack, Right-Angle, Low Profile, Surface Mount, 8/8, 2 Ports
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
44193-0003,
0441930003 |
Where to Buy
Prices starting from US$1.83
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$1.89
|
6,412
in stock
|
Buy Now |
|
TTI Americas
from US$2.18
|
2,700
in stock
|
Buy Now |
|
RS
from US$4.60
|
0
in stock
|
Buy Now |
|
Newark Electronics
from US$3.34
|
0
in stock
|
Buy Now |
|
TME
from US$4.30
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$3.26
|
0
in stock
|
Buy Now |
|
Conrad
from US$3.50
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$3.51
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$2.95
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.83
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 8/8,RJ45 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | No |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Color Resin | Black |
| Durability Mating Cycles Max | 500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 11.80mm |
| Light Pipes Leds | None |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 5.175/g |
| Orientation | Right Angle (Side Entry) |
| Pcb Retention | Yes |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 1.270µm |
| Plating Min Termination | 2.540µm |
| Port Configuration | 1x2 |
| Positions Loaded Contacts | 8/8 |
| Temperature Range Operating | -40° to +80°C |
| Termination Interface Style | Surface Mount |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MODJACK DUAL PORT W/NAILS 5 SAU 8/ | Heilind Americas |
| MDJCK 8/8 RA LOPRO SMT 2PORTS | TTI Americas |
| Molex 44193-0003 RJ45 Connector | RS |
| Cat3/Cat4 Rj45 Modular Jack, 8 Position, 2Port | Newark Electronics |
| Connector: RJ45 | TME |
| JACK, SMT MOUNTED JACK, 4, BLACK GLASS-FILLED, HIGH TEMPERATURE NYLON, GOLD | RS Americas |
| Molex Cat 3 Mod Jack/Plug 441930003 Buchse Schwarz 1 St. | Conrad |
| MODULAR JACK, RIGHT ANGLE | TTI Europe |
