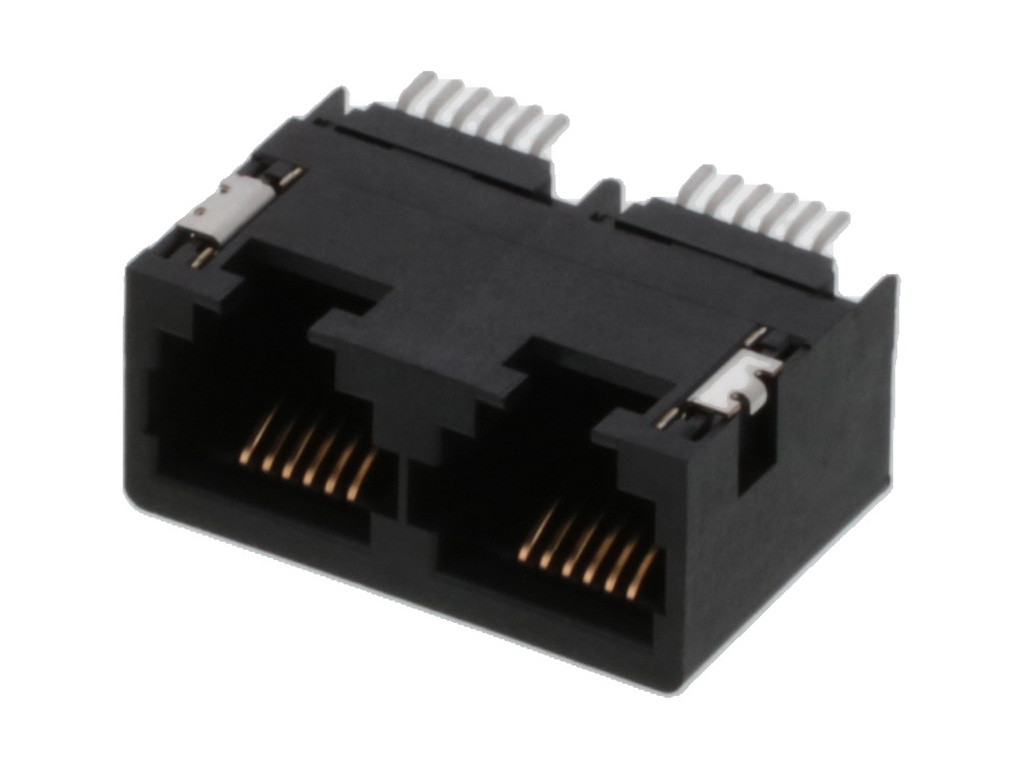

441930005 Modular Jack 6/6 by Molex
Modular Jack, Right-Angle, Low Profile, Surface Mount, 6/6, 2 Ports
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
44193-0005,
0441930005 |
Where to Buy
Prices starting from US$2.15
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$5.77
|
150
in stock
|
Buy Now |
|
element14
from US$4.75
|
150
in stock
|
Buy Now |
|
Farnell
from US$2.45
|
150
in stock
|
Buy Now |
|
RS Americas
from US$3.56
|
0
in stock
|
Buy Now |
|
Conrad
from US$4.08
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$2.15
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$3.87
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$2.59
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 6/6 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | No |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Color Resin | Black |
| Durability Mating Cycles Max | 500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 11.80mm |
| Light Pipes Leds | None |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 4.474/g |
| Orientation | Right Angle (Side Entry) |
| Pcb Retention | Yes |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 1.270µm |
| Plating Min Termination | 2.540µm |
| Port Configuration | 1x2 |
| Positions Loaded Contacts | 6/6 |
| Temperature Range Operating | -40° to +80°C |
| Termination Interface Style | Surface Mount |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Modular Conn, R/A Jack, 6P6C, 2Gang, Smt Rohs Compliant: Yes |Molex 44193-0005 | Newark Electronics |
| MODULAR CONN, R/A JACK, 6P6C, 2GANG, SMT | element14 |
| JACK, SMT MOUNTED JACK, 4, BLACK GLASS-FILLED, HIGH TEMPERATURE NYLON, GOLD | RS Americas |
| Molex Molex 441930005 DUAL PORT SMT PRODCT 441930005 Buchse Polzahl Sensoren 6P6C 1 St. | Conrad |
| MODJACK DUAL PORT W/NAILS 5 SAU 6/ | Heilind Americas |
| MODJACK DUAL PORT W/NAIL | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 441930005?
Additional datasheets, footprints and schematics for 441930005 are listed on our Part Details page. You can also find images and similar parts to 441930005 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 441930005 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 441930005 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 441930005 fall under?
The 441930005 is listed under Modular Jacks and Plugs.
Can I view similar or alternative parts?
You can view similar parts to 441930005 when available in the Modular Jacks and Plugs range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 441930005 you can contact the distributor directly for product support, shipping queries etc.
Is the 441930005 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 441930005 have stock available?
Authorised distributors including Newark Electronics, element14, Farnell, RS Americas and Conrad have stock available or on a lead time for 441930005.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 441930005 often in real-time on the comparison pages.
What if I can't find stock of 441930005?
You can fill out our help required form which you can use to request a quote for 441930005 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
