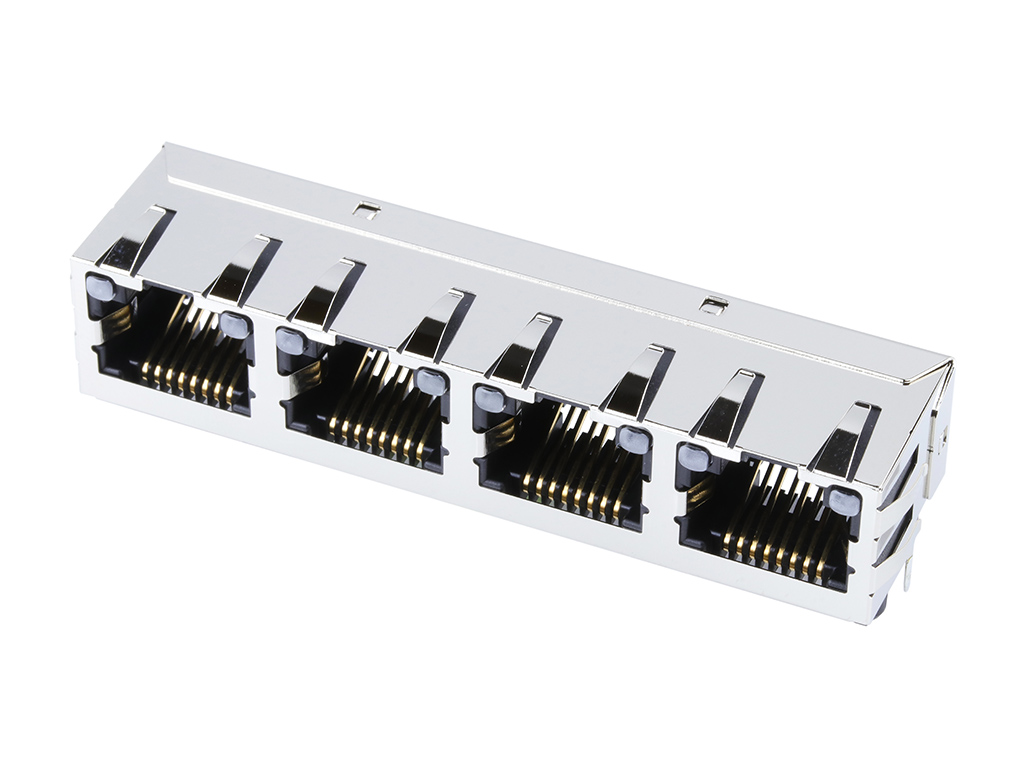

442480030 Modular Jack 8/8,RJ45 by Molex
Modular Jack, Right-Angle, Low Profile, Inverted, Lightpipes, 8/8, 4 Ports
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
44248-0030,
0442480030 |
Where to Buy
Prices starting from US$6.13
| Distributor | Stock | ||
|---|---|---|---|
|
RS Americas
from US$6.13
|
95
in stock
|
Buy Now |
|
Heilind Americas
from US$11.23
|
76
in stock
|
Buy Now |
|
TTI Americas
from US$12.65
|
20
in stock
|
Buy Now |
|
Newark Electronics
from US$14.82
|
8
in stock
|
Buy Now |
|
TME
from US$22.73
|
8
in stock
|
Buy Now |
|
Farnell
from US$29.91
|
8
in stock
|
Buy Now |
|
|
RS
from US$24.10
|
3
in stock
|
Buy Now |
|
Avnet America
from US$9.81
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$19.02
|
0
in stock
|
Buy Now |
|
Sager
from US$13.82
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$16.80
|
0
in stock
|
Buy Now |
|
EME
from US$8.46
|
0
in stock
|
Buy Now |
|
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 8/8,RJ45 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | Yes |
| Voltage Maximum | 150V AC (RMS) |
Physical |
|
|---|---|
| Boot Color | N/A |
| Color Resin | Black, Clear |
| Durability Mating Cycles Max | 500 |
| Flammability | 94V-0 |
| Inverted Top Latch | Yes |
| Jack Height | 13.45mm |
| Light Pipes Leds | Lightpipes |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Polycarbonate, Polyester |
| Net Weight | 12.015/g |
| Orientation | Right Angle (Side Entry) |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.02mm |
| Plating Min Mating | 1.270µm |
| Plating Min Termination | 2.540µm |
| Port Configuration | 1x4 |
| Positions Loaded Contacts | 8/8 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Through Hole |
| Waterproof Dustproof | No |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| GANGED INV MODJACK SHLD W/LT PIPE 8/8 | RS Americas |
| GANGED INV MODJACK SHLD W/LT IPE 8/8 | Heilind Americas |
| MDJCK 8/8 RA LOPRO INVERTED | TTI Americas |
| Cat3 Rj45 Modular Jack, 8 Position, 4 Port | Newark Electronics |
| Connector: RJ45 | TME |
| MODULAR AND ETHERNET CONNECTORS MODULAR | Farnell |
| Molex 44248-0030 RJ45 Connector | RS |
| 4 PORT GANGED JACK RT ANGLE | TTI Europe |
| Modular Connectors / Ethernet Connectors MDJCK 8/8 RA LOPRO INVERTED | Sager |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 442480030?
Additional datasheets, footprints and schematics for 442480030 are listed on our Part Details page. You can also find images and similar parts to 442480030 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 442480030 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 442480030 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 442480030 fall under?
The 442480030 is listed under Modular Jacks and Plugs.
Can I view similar or alternative parts?
You can view similar parts to 442480030 when available in the Modular Jacks and Plugs range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 442480030 you can contact the distributor directly for product support, shipping queries etc.
Is the 442480030 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 442480030 have stock available?
Authorised distributors including RS Americas, Heilind Americas, TTI Americas, Newark Electronics and TME have stock available or on a lead time for 442480030.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 442480030 often in real-time on the comparison pages.
What if I can't find stock of 442480030?
You can fill out our help required form which you can use to request a quote for 442480030 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
