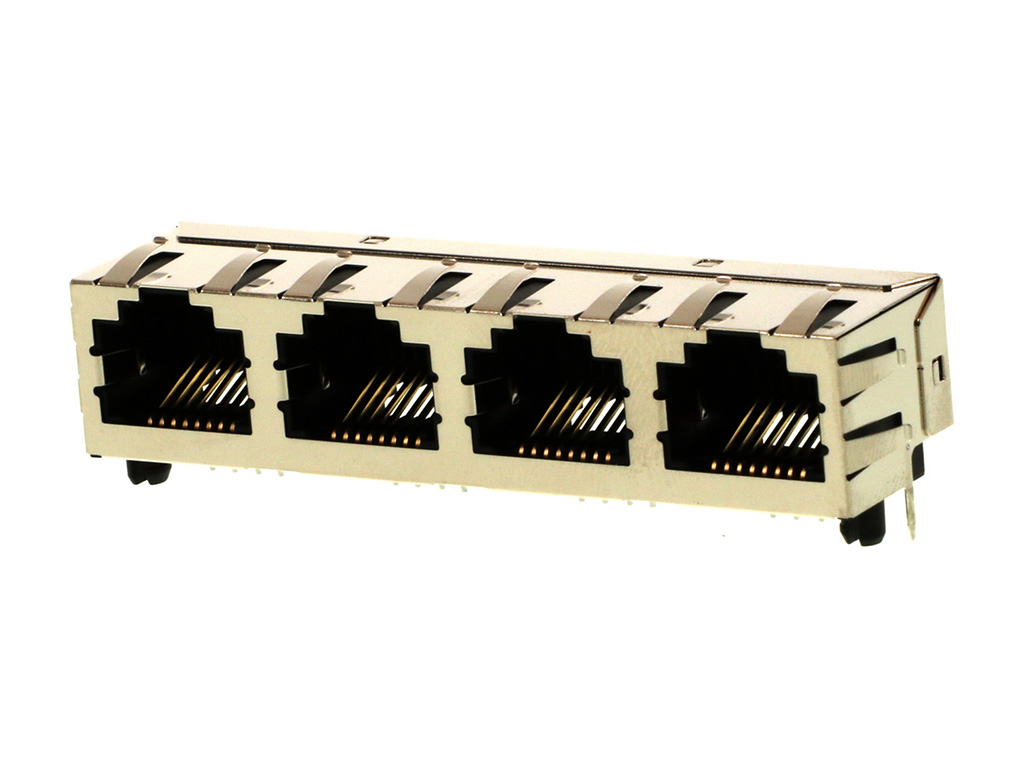

442480086 Modular Jack 8/8,RJ45 by Molex
Modular Jack, Right-Angle, Low Profile, Inverted, 8/8, 4 Ports
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
44248-0086,
0442480086 |
Where to Buy
Prices starting from US$0.76
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$16.74
|
0
in stock
|
Buy Now |
|
element14
from US$12.21
|
0
in stock
|
Buy Now |
|
Conrad
from US$15.07
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$9.07
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$9.66
|
0
in stock
|
Buy Now |
|
Farnell
from US$12.89
|
0
in stock
|
Buy Now |
|
EME
from US$0.76
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 8/8,RJ45 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | Yes |
| Voltage Maximum | 150V AC (RMS) |
Physical |
|
|---|---|
| Boot Color | N/A |
| Color Resin | Black |
| Durability Mating Cycles Max | 500 |
| Flammability | 94V-0 |
| Inverted Top Latch | Yes |
| Jack Height | 13.45mm |
| Light Pipes Leds | None |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Polyester |
| Net Weight | 11.068/g |
| Orientation | Right Angle (Side Entry) |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.02mm |
| Plating Min Mating | 1.270µm |
| Plating Min Termination | 2.540µm |
| Port Configuration | 1x4 |
| Positions Loaded Contacts | 8/8 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Through Hole |
| Waterproof Dustproof | No |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Rj45 Connector, Jack, 8P8C, 4Port, Th | Newark Electronics |
| RJ45 CONNECTOR, JACK, 8P8C, 4PORT, TH | element14 |
| Molex INVERTED GANG 442480086 442480086 1 St. | Conrad |
| GANGED INV MODJACK SHLD 4 POR 8/8 | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 442480086?
Additional datasheets, footprints and schematics for 442480086 are listed on our Part Details page. You can also find images and similar parts to 442480086 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 442480086 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 442480086 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 442480086 fall under?
The 442480086 is listed under Modular Jacks and Plugs.
Can I view similar or alternative parts?
You can view similar parts to 442480086 when available in the Modular Jacks and Plugs range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 442480086 you can contact the distributor directly for product support, shipping queries etc.
Is the 442480086 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 442480086 have stock available?
Authorised distributors including Newark Electronics, element14, Conrad, Heilind Americas and Heilind Europe have stock available or on a lead time for 442480086.
