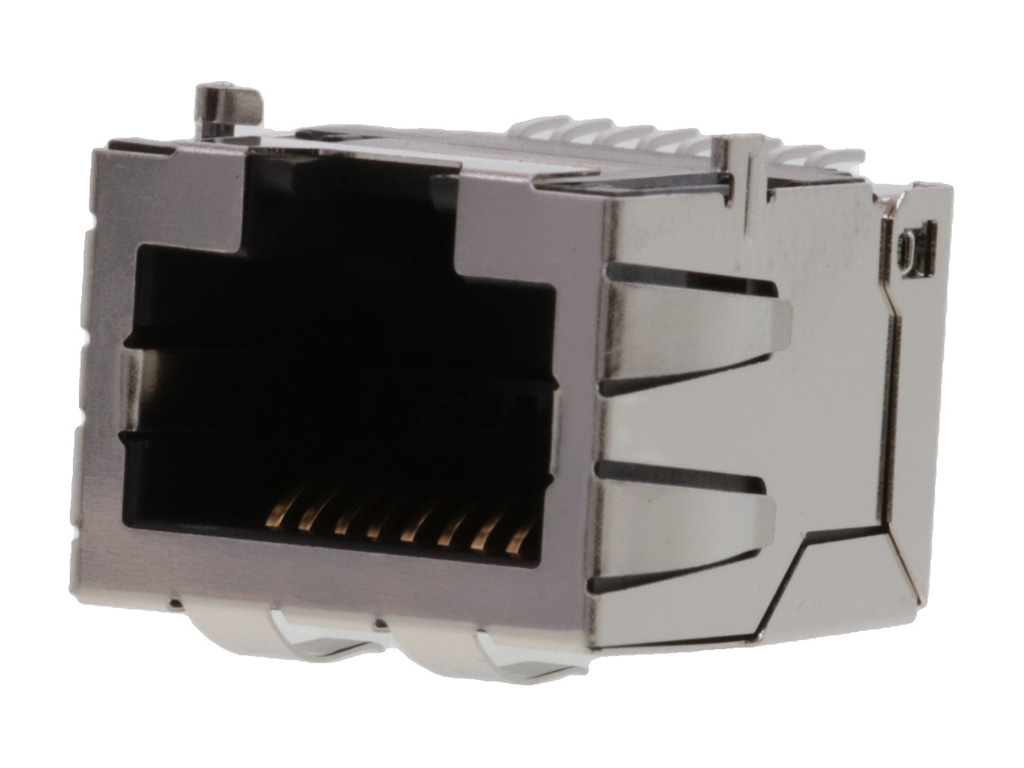

442820001 Modular Jack 8/8,RJ45 by Molex
Modular Jack, Right-Angle, Low Profile, Shielded, Surface Mount, 8/8
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
44282-0001,
0442820001 |
Where to Buy
Prices starting from US$1.99
| Distributor | Stock | ||
|---|---|---|---|
|
element14
from US$5.33
|
551
in stock
|
Buy Now |
|
Farnell
from US$5.61
|
551
in stock
|
Buy Now |
|
Avnet America
from US$2.64
|
360
in stock
|
Buy Now |
|
Newark Electronics
from US$6.58
|
120
in stock
|
Buy Now |
|
Heilind Americas
from US$3.57
|
41
in stock
|
Buy Now |
|
RS Americas
from US$4.63
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$1.99
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$4.16
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 8/8,RJ45 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Grounding To Panel | Yes |
| Shielded | Yes |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Color Resin | Black |
| Durability Mating Cycles Max | 500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 13.45mm |
| Light Pipes Leds | None |
| Material Metal | Brass, Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 4.005/g |
| Orientation | Right Angle (Side Entry) |
| Panel Mount | N/A |
| Pcb Locator | Yes |
| Pcb Retention | No |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 1.270µm |
| Plating Min Termination | 2.540µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 8/8 |
| Temperature Range Operating | -40° to +80°C |
| Termination Interface Style | Surface Mount |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| RJ45 CONN, R/A JACK, 8P8C, 1PORT, SMT | element14 |
| Rj45 Conn, R/A Jack, 8P8C, 1Port, Smt Rohs Compliant: Yes |Molex 44282-0001 | Newark Electronics |
| 8/8CKT FLUSH SMT CUT TAPE SHIELD MOD JK | Heilind Americas |
| 8/8CKT FLUSH SMT SHIELD MOD JK 595PLT | RS Americas |
| MDJCK 8/8 RA LOPROI | TTI Americas |
| 8/8CKT FLUSH SMT SHIELD MOD J 595PLT | Heilind Europe |
