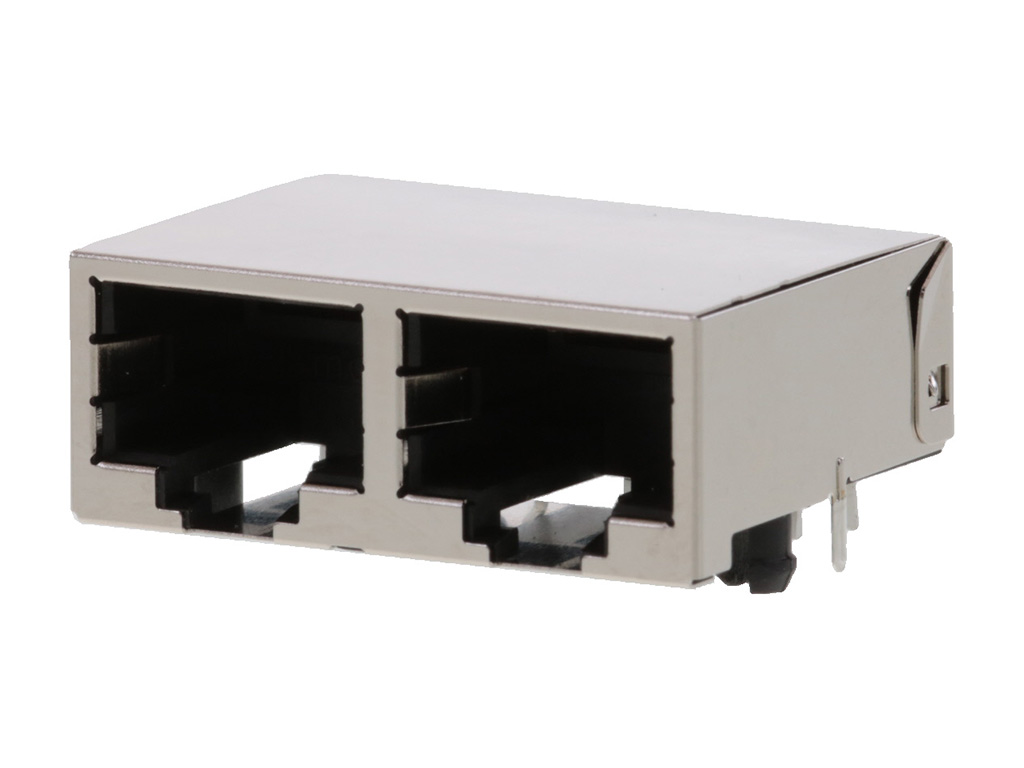

445600002 Modular Jack 8/8,RJ45 by Molex
Modular Jack, Right-Angle, Low Profile, 8/8, 2 Ports
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
44560-0002,
0445600002 |
Where to Buy
Prices starting from US$8.16
| Distributor | Stock | ||
|---|---|---|---|
|
RS
from US$16.36
|
0
in stock
|
Buy Now |
|
Newark Electronics
from US$8.16
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$11.13
|
0
in stock
|
Buy Now |
|
element14
from US$12.79
|
0
in stock
|
Buy Now |
|
Conrad
from US$18.67
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$8.47
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$8.97
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$11.70
|
0
in stock
|
Buy Now |
|
Farnell
from US$12.80
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 8/8,RJ45 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Grounding To Panel | None |
| Shielded | Yes |
| Voltage Maximum | 150V |
Physical |
|
|---|---|
| Color Resin | Black |
| Durability Mating Cycles Max | 500 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 11.23mm |
| Light Pipes Leds | None |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 6.334/g |
| Orientation | Right Angle (Side Entry) |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 1.270µm |
| Plating Min Termination | 2.540µm |
| Port Configuration | 1x2 |
| Positions Loaded Contacts | 8/8 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Through Hole |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex 44560-0002 Connector | RS |
| Phone Connector, pcb Mount,16 Contacts, pin, pc Tail Terminal, locking Rohs Compliant: Yes |Molex 44560-0002 | Newark Electronics |
| MODJACK RA COMPACT CAT 5E PTH SHIELDED | RS Americas |
| CONNECTOR, RJ45, JACK, 8P8C, CAT5/5E | element14 |
| Molex Molex 445600002 Ganged Cat 5 445600002 Buchse Polzahl Sensoren 8P8C 1 St. | Conrad |
| MDJCK 8/8 RA LOPRO | TTI Americas |
