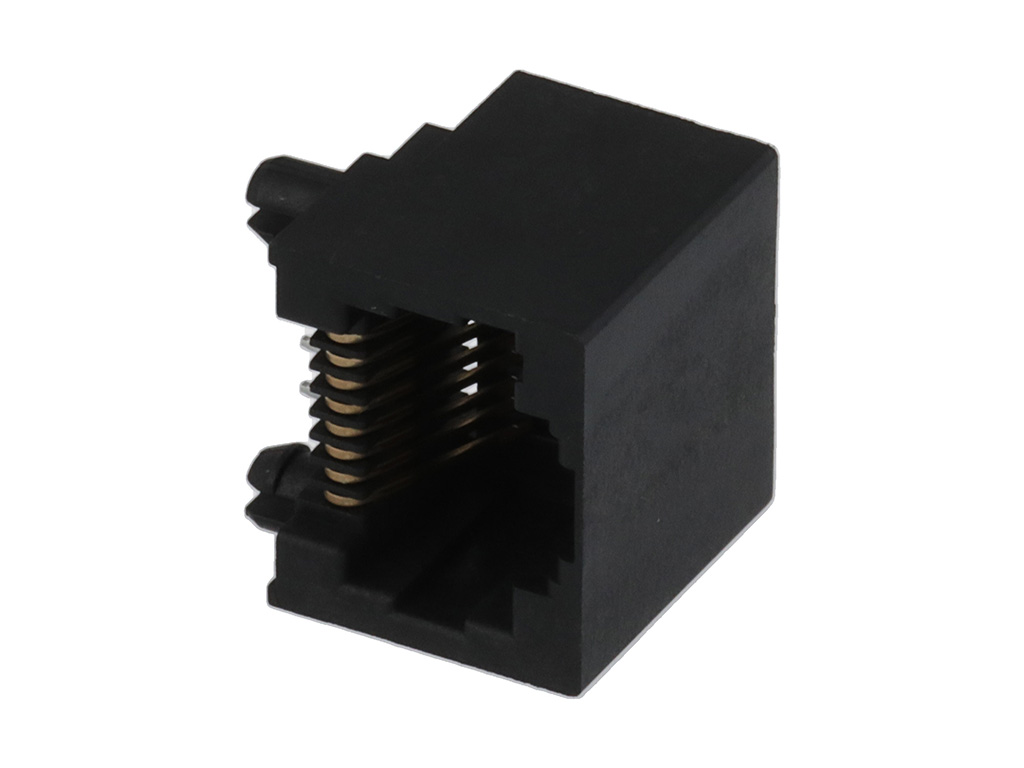

446200001 Modular Jack 8/8,RJ45 by Molex
Modular Jack, Right-Angle, Low Profile, Inverted, Keep out Feature, 8/8
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
44620-0001,
0446200001 |
Where to Buy
Prices starting from US$0.78
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$0.90
|
3,255
in stock
|
Buy Now |
|
Conrad
from US$1.27
|
1,730
in stock
|
Buy Now |
|
Farnell
from US$1.47
|
1,610
in stock
|
Buy Now |
|
Newark Electronics
from US$1.26
|
1,439
in stock
|
Buy Now |
|
TME
from US$1.74
|
53
in stock
|
Buy Now |
|
RS
from US$1.42
|
6
in stock
|
Buy Now |
|
Avnet Abacus
-
|
16,205
in stock
|
Buy Now |
|
Avnet America
from US$0.89
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$1.79
|
0
in stock
|
Buy Now |
|
Compona
from US$1.39
|
0
in stock
|
Buy Now |
|
element14
from US$1.21
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$1.38
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.78
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.24
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.42
|
0
in stock
|
Buy Now |
|
EME
from US$1.59
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 8/8,RJ45 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Shielded | No |
| Voltage Maximum | 150V AC (RMS) |
Physical |
|
|---|---|
| Boot Color | N/A |
| Color Resin | Black |
| Durability Mating Cycles Max | 500 |
| Flammability | 94V-0 |
| Inverted Top Latch | Yes |
| Jack Height | 13.21mm |
| Light Pipes Leds | None |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 2.200/g |
| Orientation | Right Angle (Side Entry) |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.02mm |
| Plating Min Mating | 1.270µm |
| Plating Min Termination | 2.540µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 8/8 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Through Hole |
| Waterproof Dustproof | No |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MDJCK 8/8 RA LOPRO INVERTED | TTI Americas |
| Molex Molex 446200001 RJ45 INVERT W/RJ11 446200001 Buchse Polzahl Sensoren 8P8C 1 St. | Conrad |
| MOD CONN, R/A RJ45 JACK, 8P8C, 1PORT, TH | Farnell |
| Rj-45Invertedmodjackw/Keepoutfeature8Ckt Rohs Compliant: Yes |Molex 44620-0001 | Newark Electronics |
| Connector: RJ45 | TME |
| Molex 44620-0001 RJ45 Connector | RS |
| Modular Connector, RJ45 Jack, 1 x 1 (Port), 8P8C, Cat3, Through Hole Mount | Avnet Abacus |
| RJ-45INVERTEDMODJACKW/KEEPOUTFEATURE8CKT | RS Americas |
| MOLEX 44620-0001 Socket Square RJ 8p THT | Compona |
| RJ45 CONNECTOR, JACK, 8P8C, 1PORT, TH | element14 |
| 8/8 MOD JACK RT ANGLE LOW PRO | TTI Europe |
| RJ-45INVERTEDMODJACKW/KEEPOUT EATURE8CKT | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 446200001?
Additional datasheets, footprints and schematics for 446200001 are listed on our Part Details page. You can also find images and similar parts to 446200001 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 446200001 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 446200001 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 446200001 fall under?
The 446200001 is listed under Modular Jacks and Plugs.
Can I view similar or alternative parts?
You can view similar parts to 446200001 when available in the Modular Jacks and Plugs range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 446200001 you can contact the distributor directly for product support, shipping queries etc.
Is the 446200001 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 446200001 have stock available?
Authorised distributors including TTI Americas, Conrad, Farnell, Newark Electronics and TME have stock available or on a lead time for 446200001.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 446200001 often in real-time on the comparison pages.
What if I can't find stock of 446200001?
You can fill out our help required form which you can use to request a quote for 446200001 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
