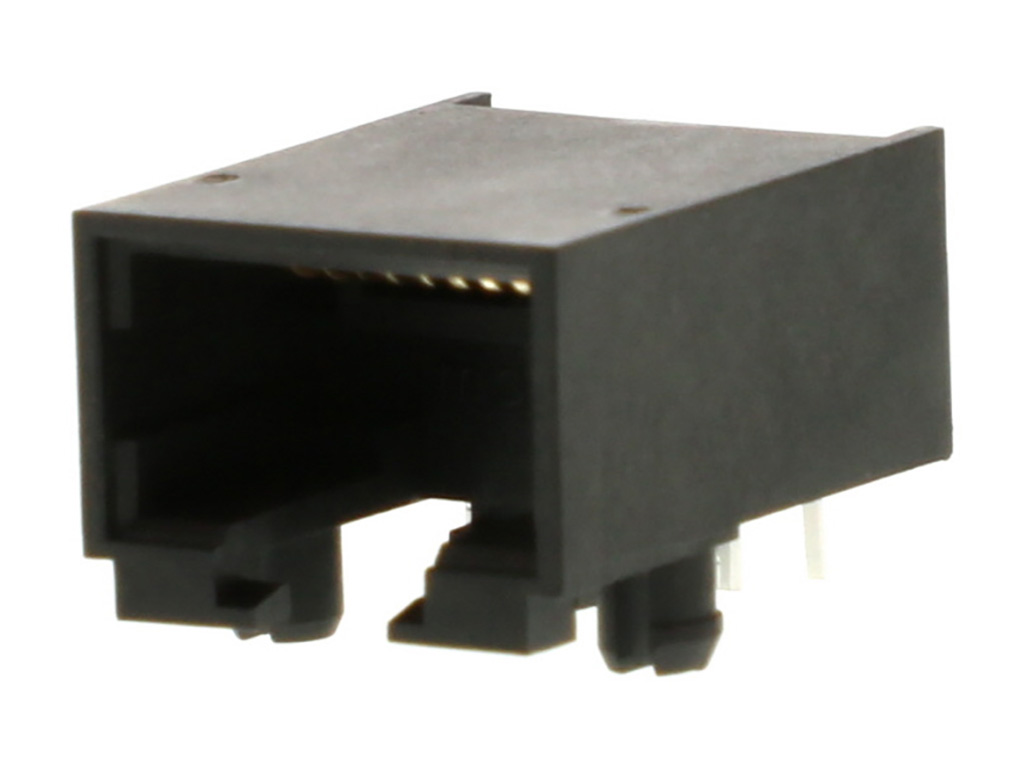

446610002 Modular Jack 8/8,RJ45 by Molex
Modular Jack, Right-Angle, Low Profile, 8/8
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
44661-0002,
0446610002 |
Where to Buy
Prices starting from US$3.55
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$6.02
|
289
in stock
|
Buy Now |
|
element14
from US$4.54
|
289
in stock
|
Buy Now |
|
Farnell
from US$4.49
|
289
in stock
|
Buy Now |
|
TME
from US$4.47
|
262
in stock
|
Buy Now |
|
Conrad
from US$5.16
|
262
in stock
|
Buy Now |
|
RS
from US$6.16
|
0
in stock
|
Buy Now |
|
Avnet America
from US$3.76
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$4.13
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$3.55
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$5.14
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Modular Jack 8/8,RJ45 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Grounding To Panel | Unshielded |
| Shielded | No |
| Voltage Maximum | 150V |
Physical |
|
|---|---|
| Color Resin | Black |
| Durability Mating Cycles Max | 750 |
| Flammability | 94V-0 |
| Inverted Top Latch | No |
| Jack Height | 10.77mm |
| Light Pipes Leds | None |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 2.011/g |
| Orientation | Right Angle (Side Entry) |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 1.270µm |
| Plating Min Termination | 2.540µm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 8/8 |
| Temperature Range Operating | -40° to +85°C |
| Termination Interface Style | Through Hole |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Rj45 Connector, Jack, 8P8C, 1Port, Tht | Newark Electronics |
| RJ45 CONNECTOR, JACK, 8P8C, 1PORT, THT | element14 |
| Connector: RJ45 | TME |
| Molex Molex 446610002 CAT 5 COMPACT MODJ 446610002 Buchse Polzahl Sensoren 8P8C 1 St. | Conrad |
| Molex 44661-0002 Modular Jack | RS |
| JACK, MODULAR, RIGHT ANGLE, THROUGH HOLE, RJ45, 8 POS, 8 CNTS, GOLD, UNSHIELDED | RS Americas |
| MDJCK 8/8 RA HISP ULTRA LOPRO | TTI Americas |
