447641003 Micro-Fit BMI by Molex

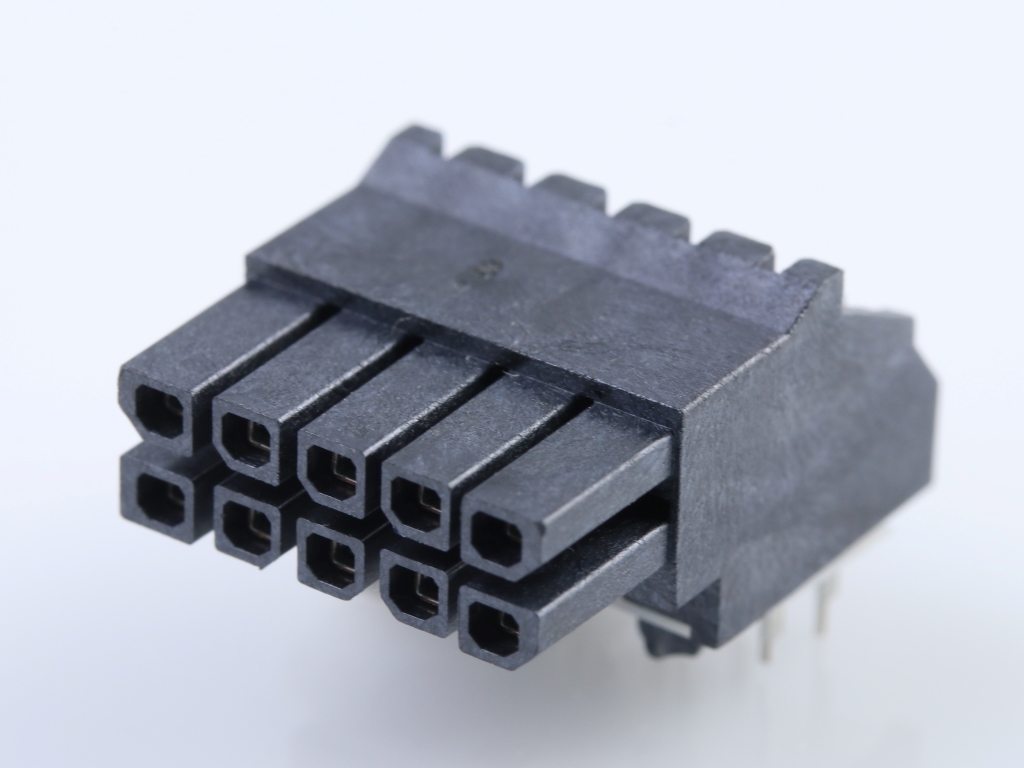

Micro-Fit BMI Receptacle Header, Dual Row, Right-Angle, with Press-fit Plastic Pegs, 0.76µm Gold (Au) Selective Plating, Mylar Positioning Strip, 10 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
44764-1003,
0447641003 |
Where to Buy
Prices starting from US$3.03
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$3.90
|
1,652
in stock
|
Buy Now |
|
Conrad
from US$15.85
|
1,652
in stock
|
Buy Now |
|
Farnell
from US$5.84
|
1,487
in stock
|
Buy Now |
|
Newark Electronics
from US$5.33
|
0
in stock
|
Buy Now |
|
Avnet America
from US$5.65
|
0
in stock
|
Buy Now |
|
RS Americas
from US$7.30
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$5.14
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$3.03
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$3.97
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit BMI |
|---|---|
| Application | Board-to-Board, Power, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.5A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 10 |
| Circuits Maximum | 10 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Glow Wire Capable | No |
| Guide To Mating Part | Yes |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Matte Tin |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 2.914/g |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pc Tail Length | 3.70mm |
| Pitch Mating Interface | 3.00mm |
| Plating Min Mating | 0.760µm |
| Plating Min Termination | 0.760µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector: wire-board | TME |
| Molex Einbau-Buchsenleiste (Standard) 447641003 1 St. Tray | Conrad |
| MICROFIT 3.0 BMI RA HDR-FEM 30AU 10CKT | Farnell |
| Connector, Rcpt, 10Pos, 2Row, 3Mm | Newark Electronics |
| Conn Wire to Board RCP 10 POS 3mm Solder RA Thru-Hole Tray | Avnet America |
| MICROFIT (3.0) BMI RA HDR/FEM 30AU 10CKT | RS Americas |
| MICROFIT (3.0) BMI RA HDR | TTI Asia |
