447641201 Micro-Fit BMI by Molex

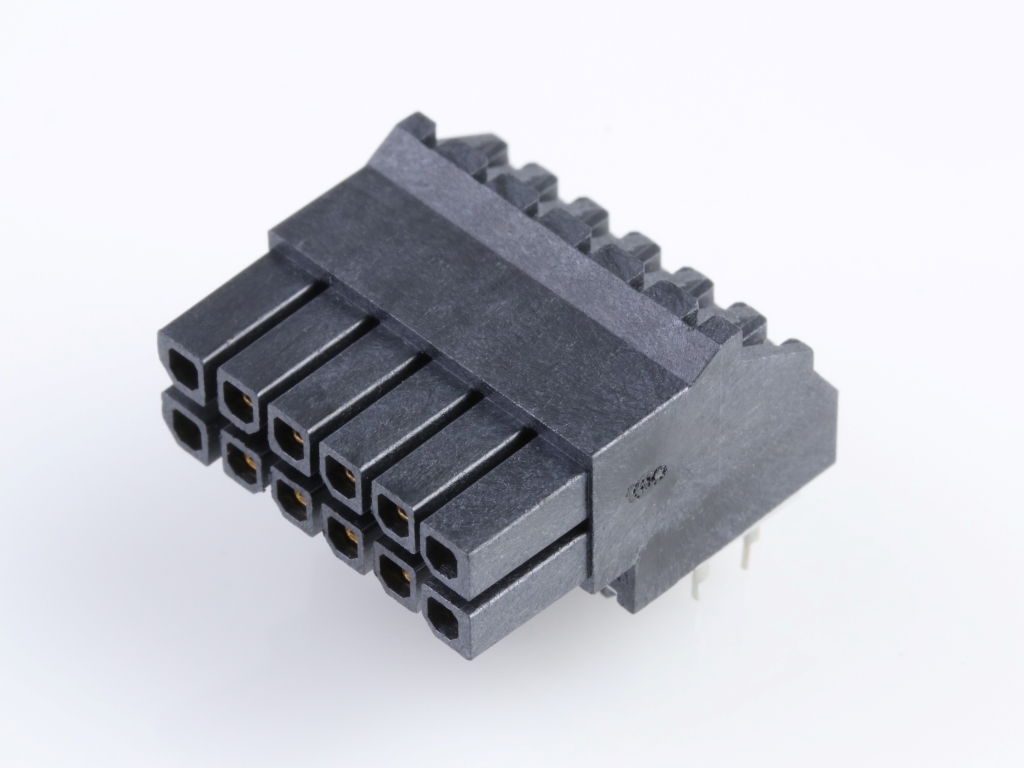

Micro-Fit BMI Receptacle Header, Dual Row, Right-Angle, with Press-fit Plastic Pegs, 1.02µm Tin (Sn) Plating, Mylar Positioning Strip, 12 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
44764-1201,
0447641201 |
Where to Buy
Prices starting from US$1.97
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$3.81
|
481
in stock
|
Buy Now |
|
element14
from US$3.80
|
481
in stock
|
Buy Now |
|
Farnell
from US$4.41
|
481
in stock
|
Buy Now |
|
RS Americas
from US$3.82
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$3.49
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$3.33
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$3.31
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.97
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$3.58
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit BMI |
|---|---|
| Application | Board-to-Board, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.5A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 12 |
| Circuits Maximum | 12 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Gender | Female |
| Glow Wire Capable | No |
| Guide To Mating Part | Yes |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 3.403/g |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pc Tail Length | 3.70mm |
| Pitch Mating Interface | 3.00mm |
| Plating Min Mating | 1.020µm |
| Plating Min Termination | 1.020µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector, Rcpt, 12Pos, 2Row, 3Mm Rohs Compliant: Yes |Molex 44764-1201 | Newark Electronics |
| CONNECTOR, RCPT, 12POS, 2ROW, 3MM | element14 |
| MICRO-FIT (3.0) BMI RA HDR/FEM TIN 12CKT | RS Americas |
| MICRO-FIT 3.0 BMI HDR 2X6P RA | TTI Americas |
| MICRO-FIT (3.0) BMI RA HDR/FEM | TTI Europe |
| MICRO-FIT (3.0) BMI RA HDR/FE TIN 12CKT | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 447641201?
Additional datasheets, footprints and schematics for 447641201 are listed on our Part Details page. You can also find images and similar parts to 447641201 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 447641201 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 447641201 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 447641201 fall under?
The 447641201 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 447641201 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 447641201 you can contact the distributor directly for product support, shipping queries etc.
Is the 447641201 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 447641201 have stock available?
Authorised distributors including Newark Electronics, element14, Farnell, RS Americas and TTI Americas have stock available or on a lead time for 447641201.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 447641201 often in real-time on the comparison pages.
What if I can't find stock of 447641201?
You can fill out our help required form which you can use to request a quote for 447641201 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
