447641202 Micro-Fit BMI by Molex

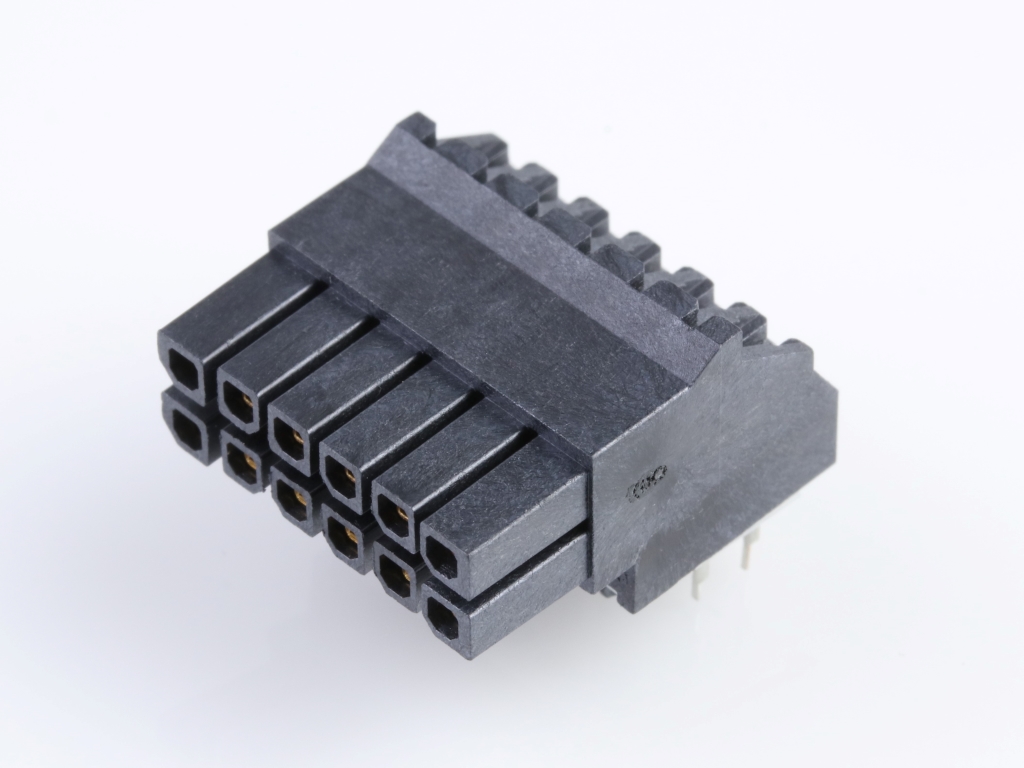

Micro-Fit BMI Receptacle Header, Dual Row, Right-Angle, with Press-fit Plastic Pegs, 0.38µm Gold (Au) Selective Plating, Mylar Positioning Strip, 12 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
44764-1202,
0447641202 |
Where to Buy
Prices starting from US$2.76
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$5.90
|
1,790
in stock
|
Buy Now |
|
Avnet America
from US$4.83
|
0
in stock
|
Buy Now |
|
RS Americas
from US$6.54
|
0
in stock
|
Buy Now |
|
Conrad
from US$6.79
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$4.69
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$2.76
|
0
in stock
|
Buy Now |
|
Farnell
from US$3.39
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$5.37
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit BMI |
|---|---|
| Application | Board-to-Board, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.5A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 12 |
| Circuits Maximum | 12 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Gender | Female |
| Glow Wire Capable | No |
| Guide To Mating Part | Yes |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 3.427/g |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pc Tail Length | 3.70mm |
| Pitch Mating Interface | 3.00mm |
| Plating Min Mating | 0.381µm |
| Plating Min Termination | 0.380µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Plug & Socket Conn Receptacle, 12Pos, 2Row | Newark Electronics |
| MICROFIT (3.0) BMI RA HDR/FEM 15AU 12CKT | RS Americas |
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 12 447641202 1 St. Tray | Conrad |
| MICRO-FIT 3.0 BMI HDR 2X6P RA | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 447641202?
Additional datasheets, footprints and schematics for 447641202 are listed on our Part Details page. You can also find images and similar parts to 447641202 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 447641202 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 447641202 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 447641202 fall under?
The 447641202 is listed under PCB Headers and Receptacles.
Can I view similar or alternative parts?
You can view similar parts to 447641202 when available in the PCB Headers and Receptacles range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 447641202 you can contact the distributor directly for product support, shipping queries etc.
Is the 447641202 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 447641202 have stock available?
Authorised distributors including Newark Electronics, Avnet America, RS Americas, Conrad and Heilind Americas have stock available or on a lead time for 447641202.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 447641202 often in real-time on the comparison pages.
What if I can't find stock of 447641202?
You can fill out our help required form which you can use to request a quote for 447641202 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
