447691202 Micro-Fit BMI by Molex

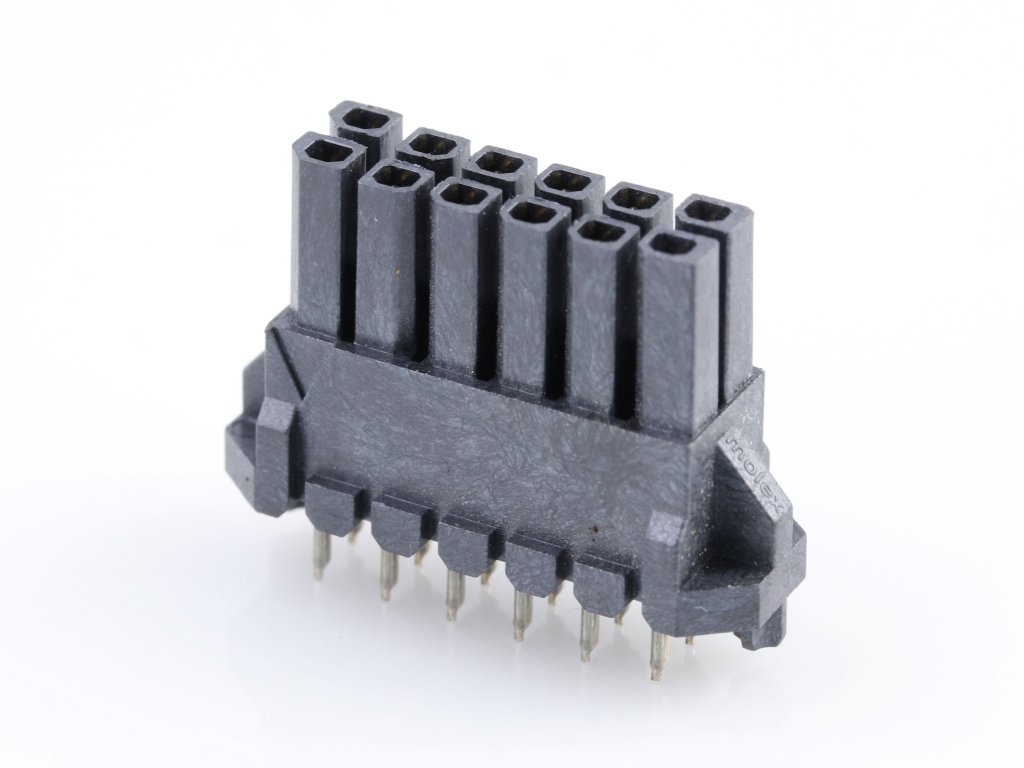

Micro-Fit BMI Receptacle Header, Dual Row, Vertical, with Press-fit Plastic Pegs, 0.38µm Gold (Au) Selective, 12 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
44769-1202,
0447691202 |
Where to Buy
Prices starting from US$2.53
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$4.76
|
1,396
in stock
|
Buy Now |
|
element14
from US$4.73
|
1,396
in stock
|
Buy Now |
|
Farnell
from US$5.55
|
1,396
in stock
|
Buy Now |
|
Conrad
from US$5.69
|
505
in stock
|
Buy Now |
|
Avnet America
from US$4.39
|
0
in stock
|
Buy Now |
|
RS Americas
from US$4.92
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$4.26
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$2.53
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$4.16
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit BMI |
|---|---|
| Application | Board-to-Board, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.5A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Circuits Loaded | 12 |
| Circuits Maximum | 12 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Length | 24.00mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 2.265/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pc Tail Length | 3.40mm |
| Pitch Mating Interface | 3.00mm |
| Plating Min Mating | 0.381µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Conn, Rcpt, 12Pos, 2Row, 3Mm Rohs Compliant: Yes |Molex 44769-1202 | Newark Electronics |
| CONN, RCPT, 12POS, 2ROW, 3MM | element14 |
| Molex Einbau-Stiftleiste (Standard) Polzahl Gesamt 12 447691202 1 St. Tray | Conrad |
| Conn Wire to Board RCP 12 POS 3mm Solder ST Thru-Hole Tray | Avnet America |
| MICRO-FIT BMI VT HDR F DR 15AU 12CKT | RS Americas |
| MICRO-FIT BMI VT HDR F DR 15A 12CKT | Heilind Americas |
| MICRO-FIT BMI VT HDR F DR 15AU | TTI Asia |
