447691601 Micro-Fit BMI by Molex

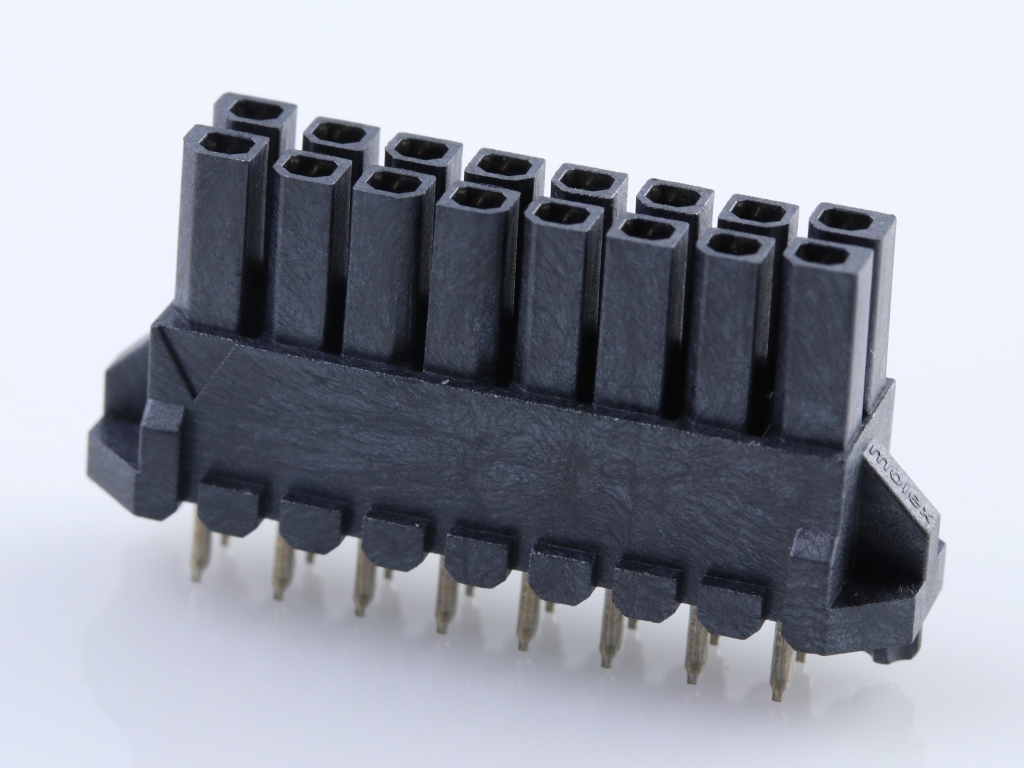

Micro-Fit BMI Receptacle Header, Dual Row, Vertical, with Press-fit Plastic Pegs, 2.54µm Tin (Sn), 16 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
44769-1601,
0447691601 |
Where to Buy
Prices starting from US$3.79
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$5.64
|
147
in stock
|
Buy Now |
|
element14
from US$5.70
|
147
in stock
|
Buy Now |
|
Farnell
from US$5.64
|
147
in stock
|
Buy Now |
|
TME
from US$7.63
|
26
in stock
|
Buy Now |
|
RS
from US$10.47
|
15
in stock
|
Buy Now |
|
Avnet America
from US$4.20
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$4.48
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$3.79
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$5.21
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit BMI |
|---|---|
| Application | Board-to-Board, Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.5A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Circuits Loaded | 16 |
| Circuits Maximum | 16 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Length | 30.00mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 2.972/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pc Tail Length | 3.40mm |
| Pitch Mating Interface | 3.00mm |
| Plating Min Mating | 2.540µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Conn, Rcpt, 16Pos, 2Row, 3Mm Rohs Compliant: Yes |Molex 44769-1601 | Newark Electronics |
| CONN, RCPT, 16POS, 2ROW, 3MM | element14 |
| Connector: wire-board | TME |
| Molex 447691601 PCB Header | RS |
| Conn Wire to Board RCP 16 POS 3mm Solder ST Thru-Hole Tray | Avnet America |
| HEADERS, VERT RECPT 16P TIN W/FRICTION PEGS | RS Americas |
| MICRO-FIT BMI VERT HDR/FE TIN 16CKT | Heilind Americas |
