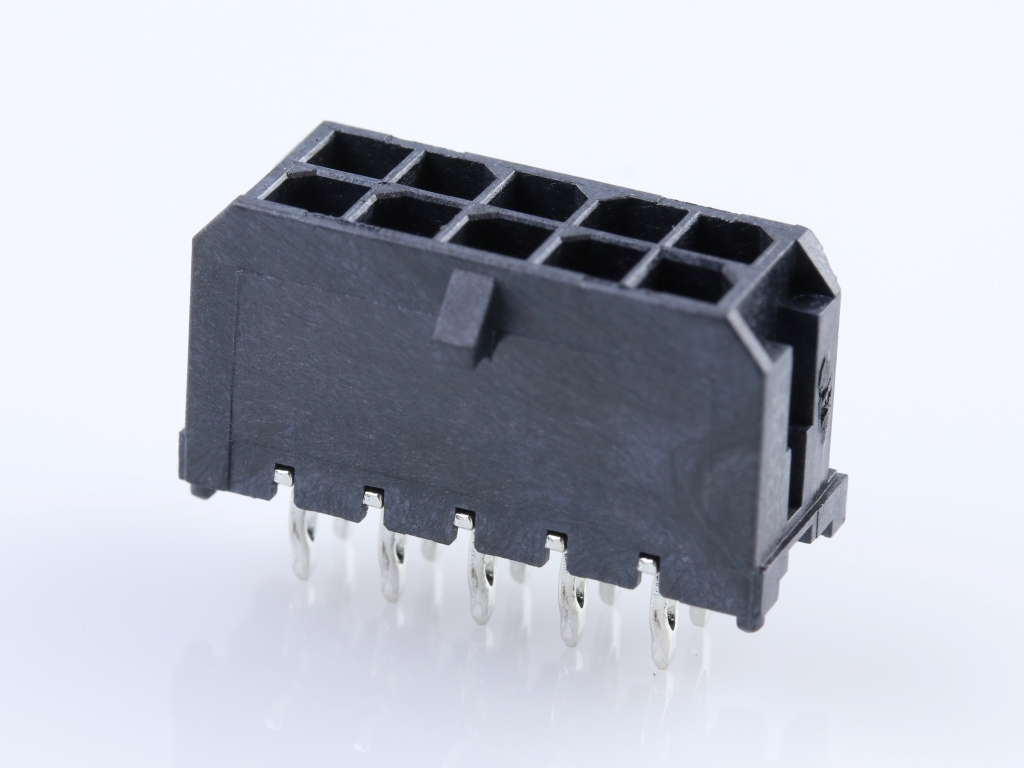

449141001 Micro-Fit CPI by Molex
Micro-Fit CPI Header, Compliant Pin Interface, Dual Row, Vertical, 10 Circuits, Tin (Sn) Plating, Glow-Wire Capable
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
44914-1001,
0449141001 |
Where to Buy
Prices starting from US$1.48
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$1.97
|
945
in stock
|
Buy Now |
|
Farnell
from US$3.46
|
851
in stock
|
Buy Now |
|
Newark Electronics
from US$2.58
|
59
in stock
|
Buy Now |
|
element14
from US$2.39
|
59
in stock
|
Buy Now |
|
Offical Electronic
-
|
597
in stock
|
Buy Now |
|
RS
from US$3.23
|
0
in stock
|
Buy Now |
|
Avnet America
from US$2.12
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$2.85
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$1.94
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$2.02
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.48
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit CPI |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.5A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 10 |
| Circuits Maximum | 10 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Gender | Male |
| Glow Wire Capable | Yes |
| Length | 18.65mm |
| Material Metal | High Performance Alloy (HPA) |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 1.448/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pitch Mating Interface | 3.00mm |
| Plating Min Mating | 5.080µm |
| Plating Min Termination | 5.080µm |
| Polarized To Pcb | Yes |
| Shrouded | Shrouded |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole - Compliant Pin |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector: wire-board | TME |
| CONN, HDR, 10POS, 2ROW, 3MM, PRESS FIT | Farnell |
| Connector, Header, 10Pos, 2Row, 3Mm Rohs Compliant: Yes |Molex 44914-1001 | Newark Electronics |
| CONNECTOR, HEADER, 10POS, 2ROW, 3MM | element14 |
| Molex 44914-1001 PCB Header | RS |
| MICROFIT 3.0 HDR VERT CPI 10 CKT 121 | RS Americas |
| MICROFIT 3.0 HDR VERT CPI 20CK | TTI Europe |
| MICROFIT 3.0 HDR VERT CPI 10 KT 121 | Heilind Americas |
