451110202 Micro-Lock Plus by Molex

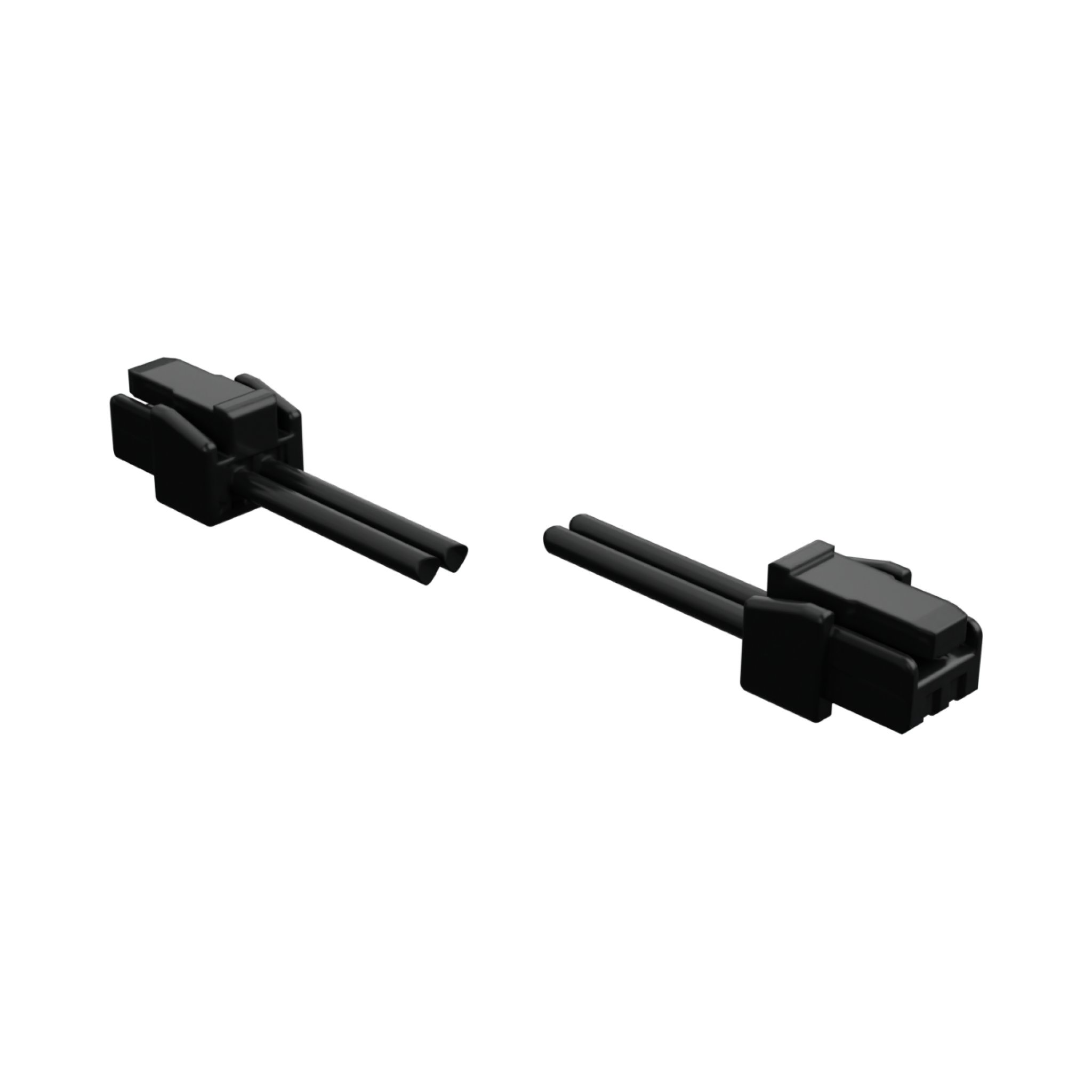

Micro-Lock Plus-to-Micro-Lock Plus Off-the-Shelf (OTS) Cable Assembly, 1.25mm Pitch, Single Row, 150.00mm Length, 2 Circuits, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
45111-0202,
0451110202 |
Where to Buy
Prices starting from US$1.15
Specifications
| Product Name | Micro-Lock Plus |
|---|---|
| Application | Wire-to-Board, Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Voltage Maximum | 50V AC (RMS)/DC |
Physical |
|
|---|---|
| Cable Length | 150.00mm |
| Circuits Loaded | 2 |
| Circuits Maximum | 2 |
| Color Resin | Black |
| Gender | Female-Female |
| Lock To Mating Part | Yes |
| Material Metal | Copper Alloy |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Polyester |
| Net Weight | 0.979/g |
| Number Of Rows | 1 |
| Over Molded | No |
| Pitch Mating Interface | 1.25mm |
| Plating Min Mating | 0.700µm |
| Singleended | No |
| Termination Interface Style | Crimp or Compression |
| Wire Cable Type | UL 1061 |
| Wire Size Awg | 26 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Cable Assy, 2Pos, Rcpt-Rcpt, 150Mm | Newark Electronics |
| CABLE ASSY, 2POS, RCPT-RCPT, 150MM | element14 |
| MICROLOCK PLUS CABLE BLACK 2-CKT 150MM | Heilind Americas |
| Molex 45111-0202 Wire to Board Cable | RS |
