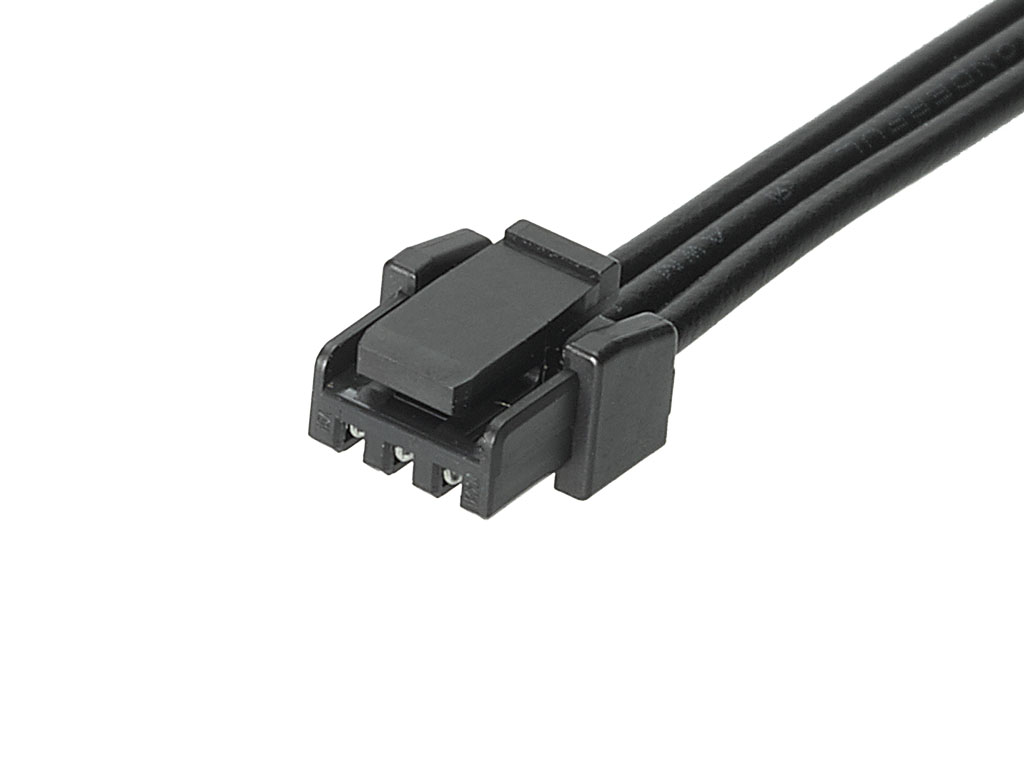

451110302 Micro-Lock Plus by Molex
Micro-Lock Plus-to-Micro-Lock Plus Off-the-Shelf (OTS) Cable Assembly, 1.25mm Pitch, Single Row, 150.00mm Length, 3 Circuits, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
45111-0302,
0451110302 |
Where to Buy
Prices starting from US$1.19
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$1.49
|
750
in stock
|
Buy Now |
|
Heilind Americas
from US$1.65
|
325
in stock
|
Buy Now |
|
Newark Electronics
from US$1.78
|
0
in stock
|
Buy Now |
|
Avnet America
from US$1.28
|
0
in stock
|
Buy Now |
|
RS Americas
from US$1.94
|
0
in stock
|
Buy Now |
|
Conrad
from US$2.34
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$1.45
|
0
in stock
|
Buy Now |
|
Sager
from US$1.33
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.19
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Lock Plus |
|---|---|
| Application | Wire-to-Board, Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Voltage Maximum | 50V AC (RMS)/DC |
Physical |
|
|---|---|
| Cable Length | 150.00mm |
| Circuits Loaded | 3 |
| Circuits Maximum | 3 |
| Color Resin | Black |
| Gender | Female-Female |
| Lock To Mating Part | Yes |
| Material Metal | Copper Alloy |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Polyester |
| Net Weight | 1.436/g |
| Number Of Rows | 1 |
| Over Molded | No |
| Pitch Mating Interface | 1.25mm |
| Plating Min Mating | 0.700µm |
| Singleended | No |
| Termination Interface Style | Crimp or Compression |
| Wire Cable Type | UL 1061 |
| Wire Size Awg | 26 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CABLE ASSY, 3POS, RCPT-RCPT, 150MM | Farnell |
| MICROLOCK PLUS CABLE BLACK 3-CKT 150MM | Heilind Americas |
| Cable Assy, 3Pos, Rcpt-Rcpt, 5.9" | Newark Electronics |
| Cable Assembly UL 1061 0.15m 26AWG 3POS Discrete Wire Housing to 3POS Discrete Wire Housing F-F Bag | Avnet America |
| Molex Buchsengehäuse-Kabel Polzahl Gesamt 3 Rastermaß: 1.25 mm 451110302 1 St. Bulk | Conrad |
| MICRO-LOCK PLUS 03P OTS ASSY | TTI Americas |
| Molex MICRO-LOCK PLUS 03P OTS ASSY | Sager |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 451110302?
Additional datasheets, footprints and schematics for 451110302 are listed on our Part Details page. You can also find images and similar parts to 451110302 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 451110302 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 451110302 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 451110302 fall under?
The 451110302 is listed under Power and Signal Cable Assemblies.
Can I view similar or alternative parts?
You can view similar parts to 451110302 when available in the Power and Signal Cable Assemblies range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 451110302 you can contact the distributor directly for product support, shipping queries etc.
Is the 451110302 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 451110302 have stock available?
Authorised distributors including Farnell, Heilind Americas, Newark Electronics, Avnet America and RS Americas have stock available or on a lead time for 451110302.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 451110302 often in real-time on the comparison pages.
What if I can't find stock of 451110302?
You can fill out our help required form which you can use to request a quote for 451110302 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
