451110401 Micro-Lock Plus by Molex

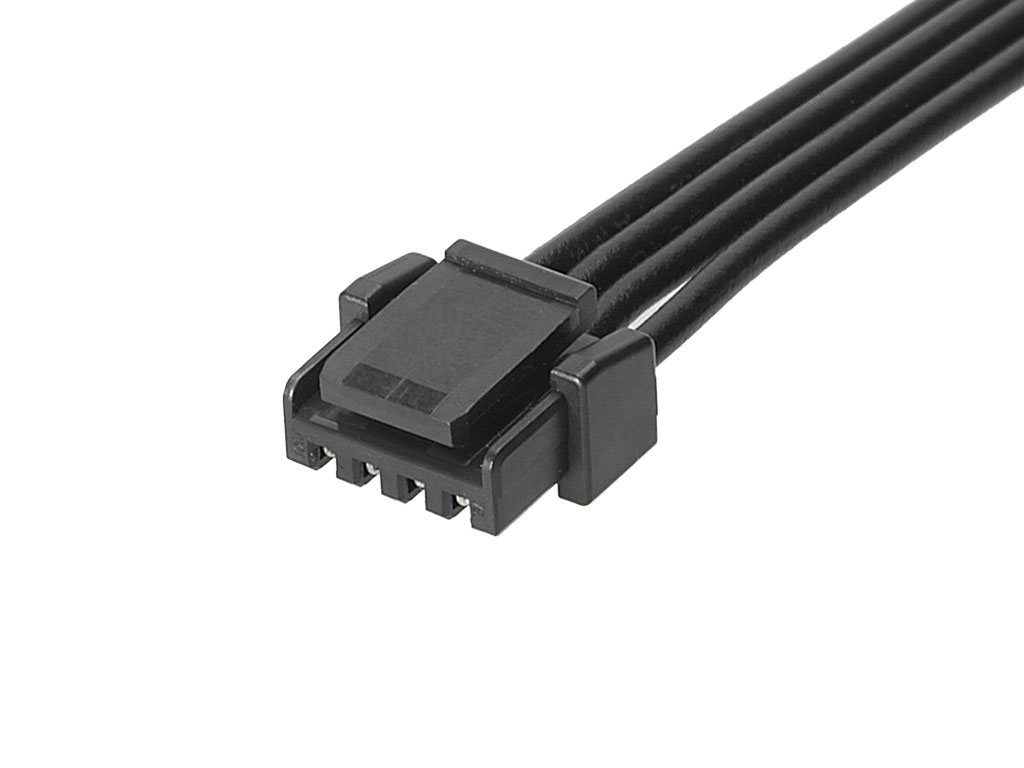

Micro-Lock Plus-to-Micro-Lock Plus Off-the-Shelf (OTS) Cable Assembly, 1.25mm Pitch, Single Row, 100.00mm Length, 4 Circuits, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
45111-0401,
0451110401 |
Where to Buy
Prices starting from US$0.92
| Distributor | Stock | ||
|---|---|---|---|
|
RS Americas
from US$0.92
|
1,055
in stock
|
Buy Now |
|
Farnell
from US$1.69
|
1,000
in stock
|
Buy Now |
|
Conrad
from US$1.96
|
750
in stock
|
Buy Now |
|
Newark Electronics
from US$2.14
|
480
in stock
|
Buy Now |
|
|
RS
from US$2.80
|
0
in stock
|
Buy Now |
|
Avnet America
from US$1.09
|
0
in stock
|
Buy Now |
|
TME
from US$1.96
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$1.10
|
0
in stock
|
Buy Now |
|
Sager
from US$1.34
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.38
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.27
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Lock Plus |
|---|---|
| Application | Wire-to-Board, Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Voltage Maximum | 50V AC (RMS)/DC |
Physical |
|
|---|---|
| Cable Length | 100.00mm |
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Color Resin | Black |
| Gender | Female-Female |
| Lock To Mating Part | Yes |
| Material Metal | Copper Alloy |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Polyester |
| Net Weight | 1.432/g |
| Number Of Rows | 1 |
| Over Molded | No |
| Pitch Mating Interface | 1.25mm |
| Plating Min Mating | 0.700µm |
| Singleended | No |
| Termination Interface Style | Crimp or Compression |
| Wire Cable Type | UL 1061 |
| Wire Size Awg | 26 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MICROLOCK PLUS CABLE BLACK 4 CKT 100MM | RS Americas |
| Molex Buchsengehäuse-Kabel 451110401 1 St. | Conrad |
| Cable Assy, 4P Rcpt-Rcpt, 100Mm Rohs Compliant: Yes |Molex 45111-0401 | Newark Electronics |
| Molex 45111-0401 Cable Assembly | RS |
| Cable Assembly UL 1061 0.1m 26AWG 4POS Discrete Wire Housing to 4POS Discrete Wire Housing F-F Bag | Avnet America |
| Connector: wire-board | TME |
| MICRO-LOCK PLUS 04P OTS ASSY | TTI Americas |
| Molex MICRO-LOCK PLUS 04P OTS ASSY | Sager |
