451300201 Nano-Fit by Molex

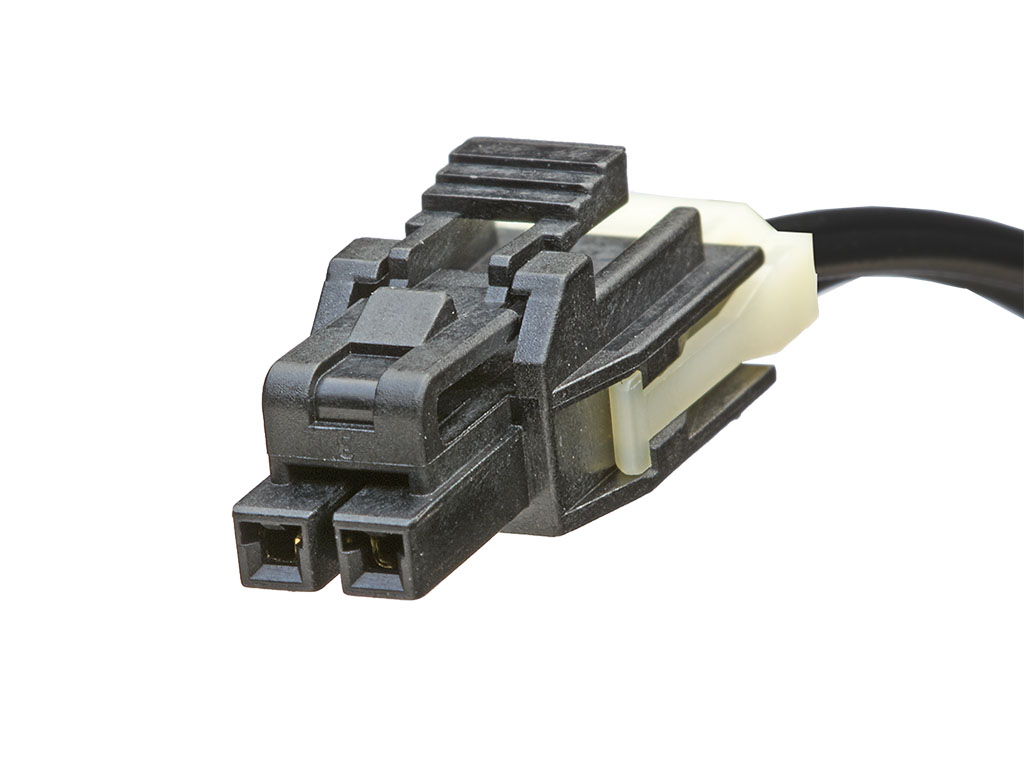

Nano-Fit-to-Nano-Fit Off-the-Shelf (OTS) Cable Assembly, Single Row, 150.00mm Length, 2 Circuits, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
45130-0201,
0451300201 |
Where to Buy
Prices starting from US$2.08
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$2.90
|
2,240
in stock
|
Buy Now |
|
Newark Electronics
from US$3.57
|
2,164
in stock
|
Buy Now |
|
element14
from US$2.87
|
2,164
in stock
|
Buy Now |
|
Farnell
from US$3.28
|
2,164
in stock
|
Buy Now |
|
RS
from US$3.83
|
354
in stock
|
Buy Now |
|
Heilind Americas
from US$2.17
|
11
in stock
|
Buy Now |
|
Avnet America
from US$2.38
|
0
in stock
|
Buy Now |
|
TME
from US$3.32
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$3.01
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$2.08
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$2.36
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Nano-Fit |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 8.0A |
| Voltage Maximum | 250V AC (RMS) |
Physical |
|
|---|---|
| Cable Length | 150.00mm |
| Circuits Loaded | 2 |
| Circuits Maximum | 2 |
| Color Resin | Black |
| Gender | Female-Female |
| Lock To Mating Part | Yes |
| Material Metal | High Conductivity Copper |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 3.552/g |
| Number Of Rows | 1 |
| Over Molded | No |
| Pitch Mating Interface | 2.50mm |
| Plating Min Mating | 0.381µm |
| Plating Min Termination | 2.540µm |
| Singleended | No |
| Termination Interface Style | Crimp or Compression |
| Wire Cable Type | UL 1061 |
| Wire Size Awg | 20 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex 45130-0201 1 St. Bulk | Conrad |
| Cable Assy, 2P Rcpt-Rcpt, 150Mm Rohs Compliant: Yes |Molex 45130-0201 | Newark Electronics |
| CABLE ASSY, 2P RCPT-RCPT, 150MM | element14 |
| Molex 45130-0201 Wire to Board Cable | RS |
| NANO-FIT 2 CIRCUIT 150MM CABLE ASSEMBLY | Heilind Americas |
| Cable | TME |
| NANO-FIT 2 CIRCUIT 150MM | RS Americas |
| NANO-FIT TO NANO-FIT ASSY | TTI Americas |
