451350201 Mini-Fit TPA2 by Molex

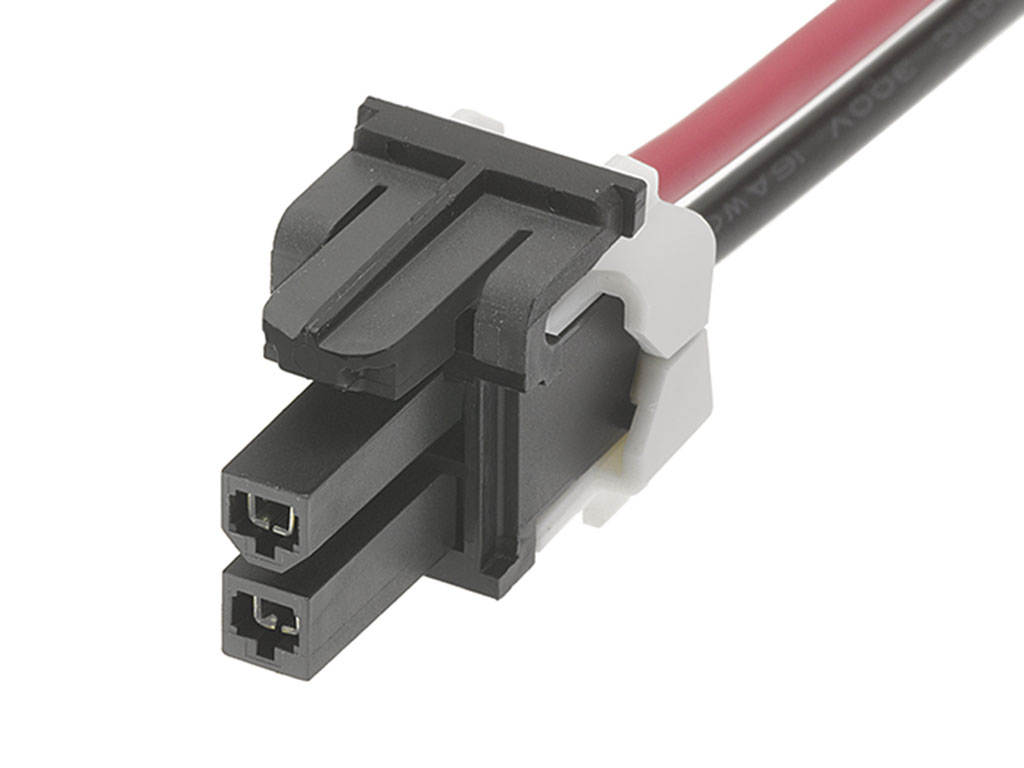

Mini-Fit TPA2-to-Mini-Fit TPA2 Off-the-Shelf (OTS) Cable Assembly, Dual Row, 150.00mm Length, 2 Circuits, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
45135-0201,
0451350201 |
Where to Buy
Prices starting from US$1.76
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$3.14
|
1,300
in stock
|
Buy Now |
|
Heilind Americas
from US$1.76
|
45
in stock
|
Buy Now |
|
TME
from US$3.32
|
16
in stock
|
Buy Now |
|
Newark Electronics
from US$3.51
|
5
in stock
|
Buy Now |
|
element14
from US$2.93
|
5
in stock
|
Buy Now |
|
Avnet America
from US$1.86
|
0
in stock
|
Buy Now |
|
RS Americas
from US$1.97
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$2.24
|
0
in stock
|
Buy Now |
|
EME
from US$3.16
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit TPA2 |
|---|---|
| Application | Wire-to-Board, Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 9.0A |
| Voltage Maximum | 300V |
Physical |
|
|---|---|
| Cable Length | 150.00mm |
| Circuits Loaded | 2 |
| Circuits Maximum | 2 |
| Color Resin | Black |
| Gender | Female-Female |
| Lock To Mating Part | Yes |
| Material Metal | Brass |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 9.650/g |
| Number Of Rows | 2 |
| Over Molded | No |
| Pitch Mating Interface | 4.20mm |
| Plating Min Mating | 0.889µm |
| Plating Min Termination | 0.889µm |
| Singleended | No |
| Termination Interface Style | Crimp or Compression |
| Wire Cable Type | UL 1007 |
| Wire Size Awg | 16 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CABLE ASSY, 2POS, IDC SOCKET, 150MM | Farnell |
| MINIFIT 2 CIRCUIT 150MM CABLE CABLE ASSEMBLY | Heilind Americas |
| Connector: wire-wire | TME |
| Cable Assy, 2Pos, Rcpt-Rcpt, 150Mm | Newark Electronics |
| CABLE ASSY, 2POS, RCPT-RCPT, 150MM | element14 |
| Cable Assembly, OTS, Mini-Fit TPA Receptacle to Mini-Fit TPA Receptacle, 2 Ways, 4.2 mm, 2 Row | Avnet America |
| Minifit 2 Circuit 150MM Cable Assembly | RS Americas |
