451360403 Mega-Fit by Molex

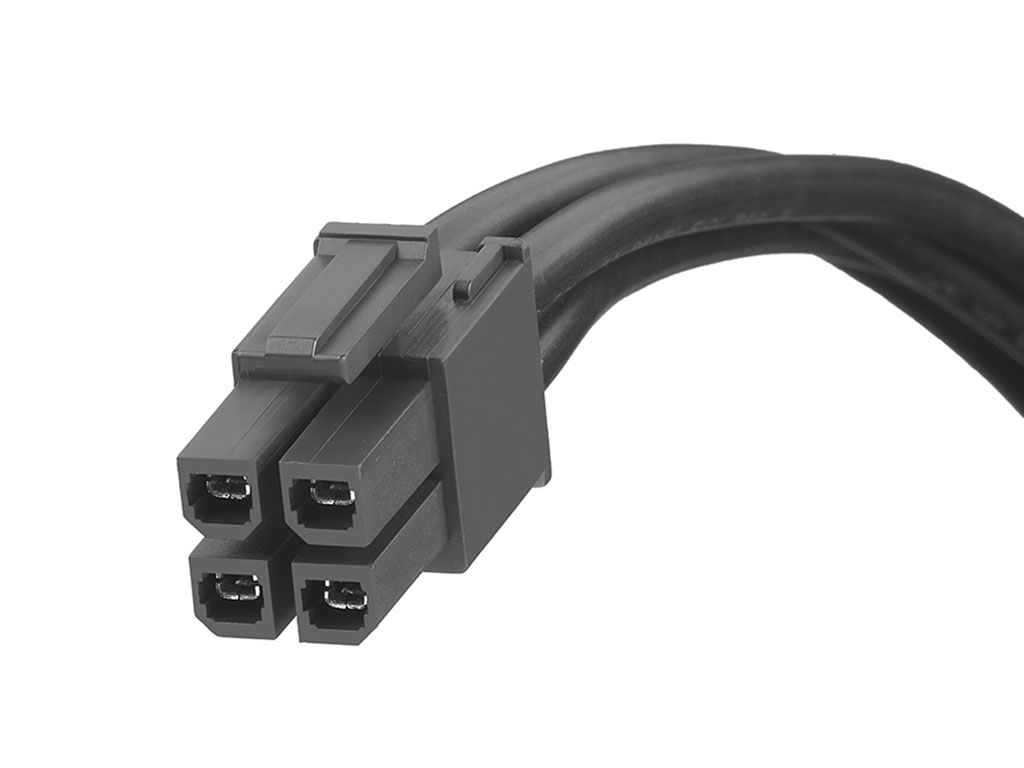

Mega-Fit-to-Mega-Fit Off-the-Shelf (OTS) Cable Assembly, Dual Row, 300.00mm Length, Matte Tin Plated, 4 Circuits, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
45136-0403,
0451360403 |
Where to Buy
Prices starting from US$4.56
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$7.88
|
458
in stock
|
Buy Now |
|
Conrad
from US$7.31
|
458
in stock
|
Buy Now |
|
Farnell
from US$8.25
|
413
in stock
|
Buy Now |
|
Heilind Americas
from US$4.74
|
67
in stock
|
Buy Now |
|
Newark Electronics
from US$6.00
|
64
in stock
|
Buy Now |
|
RS
from US$4.94
|
7
in stock
|
Buy Now |
|
|
RS Americas
from US$4.56
|
5
in stock
|
Buy Now |
|
element14
from US$7.61
|
1
in stock
|
Buy Now |
|
Avnet America
from US$6.21
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$4.56
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$6.00
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mega-Fit |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 23.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Cable Length | 300.00mm |
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Color Resin | Black |
| Gender | Female-Female |
| Lock To Mating Part | Yes |
| Material Metal | Copper Alloy |
| Material Plating Mating | Matte Tin |
| Material Plating Termination | Matte Tin |
| Material Resin | Nylon |
| Net Weight | 60.722/g |
| Number Of Rows | 2 |
| Over Molded | No |
| Pitch Mating Interface | 5.70mm |
| Plating Min Mating | 1.524µm |
| Plating Min Termination | 1.524µm |
| Singleended | No |
| Termination Interface Style | Crimp or Compression |
| Wire Cable Type | UL 1015 |
| Wire Size Awg | 12 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 45136-0403 | TME |
| Molex Stiftleiste (Standard) 45136-0403 1 St. Bulk | Conrad |
| CABLE ASSY, 4POS, RCPT-RCPT, 11.8" | Farnell |
| MEGA-FIT 4 CIRCUIT 300M DUAL ROW | Heilind Americas |
| Cable Assy, 4Pos, Rcpt-Rcpt, 11.8" | Newark Electronics |
| Molex 45136-0403 Wire to Board Cable | RS |
| MEGA FIT TO MEGA FIT OFF THE SHELF CABLE ASSEMBLY, DUAL ROW, 300MM LENGTH | RS Americas |
| CABLE ASSY, 4POS, RCPT-RCPT, 300MM | element14 |
| MEGA-FIT OTS CBL ASSY 02X02P | TTI Americas |
