451360601 Mega-Fit by Molex

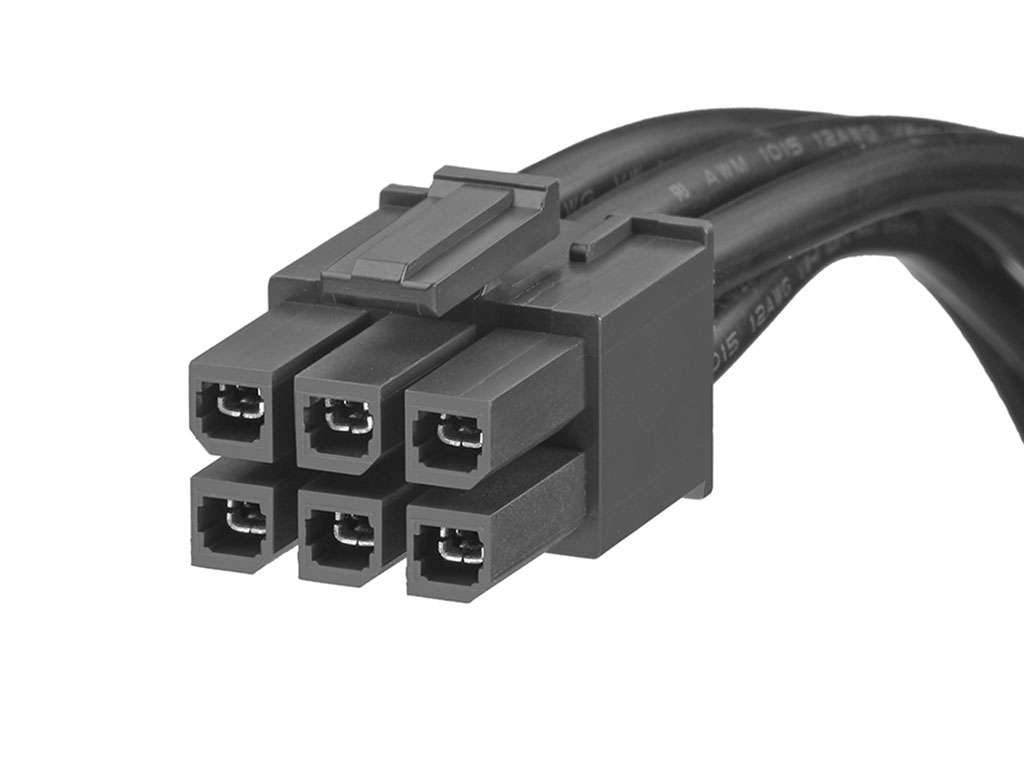

Mega-Fit-to-Mega-Fit Off-the-Shelf (OTS) Cable Assembly, Dual Row, 150.00mm Length, Matte Tin Plated, 6 Circuits, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
45136-0601,
0451360601 |
Where to Buy
Prices starting from US$5.45
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$7.94
|
1,235
in stock
|
Buy Now |
|
TME
from US$8.57
|
1,235
in stock
|
Buy Now |
|
Conrad
from US$12.51
|
1,235
in stock
|
Buy Now |
|
Farnell
from US$14.63
|
1,112
in stock
|
Buy Now |
|
Heilind Americas
from US$5.45
|
75
in stock
|
Buy Now |
|
RS
from US$13.56
|
0
in stock
|
Buy Now |
|
Avnet America
from US$6.50
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$7.00
|
0
in stock
|
Buy Now |
|
element14
from US$8.81
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$5.45
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$6.95
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mega-Fit |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 23.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Cable Length | 150.00mm |
| Circuits Loaded | 6 |
| Circuits Maximum | 6 |
| Color Resin | Black |
| Gender | Female-Female |
| Lock To Mating Part | Yes |
| Material Metal | Copper Alloy |
| Material Plating Mating | Matte Tin |
| Material Plating Termination | Matte Tin |
| Material Resin | Nylon |
| Net Weight | 54.530/g |
| Number Of Rows | 2 |
| Over Molded | No |
| Pitch Mating Interface | 5.70mm |
| Plating Min Mating | 1.524µm |
| Plating Min Termination | 1.524µm |
| Singleended | No |
| Termination Interface Style | Crimp or Compression |
| Wire Cable Type | UL 1015 |
| Wire Size Awg | 12 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Mega-Fit-To-Mega-Fit Off-The-Shelf (Ots) Cable As |Molex 45136-0601 | Newark Electronics |
| Cable | TME |
| Molex Stiftleiste (Standard) 45136-0601 1 St. Bulk | Conrad |
| CABLE ASSY, 6POS, RCPT-RCPT, 5.9" | Farnell |
| MEGA-FIT 6 CIRCUIT 150MM DUAL ROW | Heilind Americas |
| Molex 45136-0601 Cable Assembly | RS |
| CABLE ASSEMBLY, MEGA-FIT 6 CIRCUIT 150MM | RS Americas |
| CABLE ASSY, 6POS, RCPT-RCPT, 150MM | element14 |
| MEGA-FIT OTS CBL ASSY 02X03P | TTI Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 451360601?
Additional datasheets, footprints and schematics for 451360601 are listed on our Part Details page. You can also find images and similar parts to 451360601 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 451360601 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 451360601 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 451360601 fall under?
The 451360601 is listed under Power and Signal Cable Assemblies.
Can I view similar or alternative parts?
You can view similar parts to 451360601 when available in the Power and Signal Cable Assemblies range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 451360601 you can contact the distributor directly for product support, shipping queries etc.
Is the 451360601 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 451360601 have stock available?
Authorised distributors including Newark Electronics, TME, Conrad, Farnell and Heilind Americas have stock available or on a lead time for 451360601.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 451360601 often in real-time on the comparison pages.
