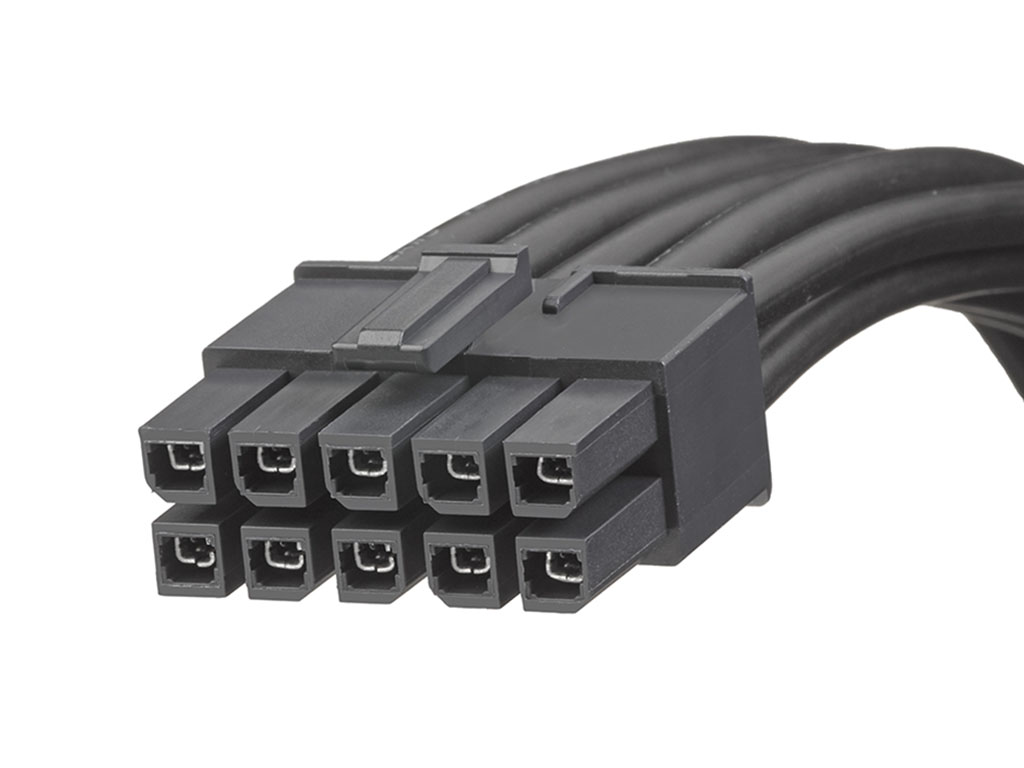

451361001 Mega-Fit by Molex
Mega-Fit-to-Mega-Fit Off-the-Shelf (OTS) Cable Assembly, Dual Row, 150.00mm Length, Matte Tin Plated, 10 Circuits, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
45136-1001,
0451361001 |
Where to Buy
Prices starting from US$7.91
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$12.22
|
1,946
in stock
|
Buy Now |
|
Conrad
from US$16.26
|
1,946
in stock
|
Buy Now |
|
Farnell
from US$13.25
|
1,752
in stock
|
Buy Now |
|
Heilind Americas
from US$7.91
|
75
in stock
|
Buy Now |
|
Newark Electronics
from US$15.59
|
18
in stock
|
Buy Now |
|
element14
from US$13.89
|
18
in stock
|
Buy Now |
|
RS
from US$20.06
|
0
in stock
|
Buy Now |
|
Avnet America
from US$9.71
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$10.46
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$7.91
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$10.28
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mega-Fit |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 23.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Cable Length | 150.00mm |
| Circuits Loaded | 10 |
| Circuits Maximum | 10 |
| Color Resin | Black |
| Gender | Female-Female |
| Lock To Mating Part | Yes |
| Material Metal | Copper Alloy |
| Material Plating Mating | Matte Tin |
| Material Plating Termination | Matte Tin |
| Material Resin | Nylon |
| Net Weight | 89.088/g |
| Number Of Rows | 2 |
| Over Molded | No |
| Pitch Mating Interface | 5.70mm |
| Plating Min Mating | 1.524µm |
| Plating Min Termination | 1.524µm |
| Singleended | No |
| Termination Interface Style | Crimp or Compression |
| Wire Cable Type | UL 1015 |
| Wire Size Awg | 12 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Cable | TME |
| Molex Stiftgehäuse-Kabel Polzahl Gesamt 10 451361001 1 St. Bulk | Conrad |
| CABLE ASSY, 10POS, RCPT-RCPT, 5.9" | Farnell |
| MEGA-FIT 10 CIRCUIT 150MM DUAL ROW | Heilind Americas |
| Cable Assy, 10Pos, Rcpt-Rcpt, 150Mm | Newark Electronics |
| CABLE ASSY, 10POS, RCPT-RCPT, 150MM | element14 |
| Molex 45136-1001 Cable Assembly | RS |
| MEGA-FIT 10 CIRCUIT 150MM | Avnet America |
| CABLE ASSEMBLY, MEGA-FIT 10 CIRCUIT 150MM | RS Americas |
| MEGA-FIT OTS CBL ASSY 02X05P | TTI Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 451361001?
Additional datasheets, footprints and schematics for 451361001 are listed on our Part Details page. You can also find images and similar parts to 451361001 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 451361001 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 451361001 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 451361001 fall under?
The 451361001 is listed under Power and Signal Cable Assemblies.
Can I view similar or alternative parts?
You can view similar parts to 451361001 when available in the Power and Signal Cable Assemblies range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 451361001 you can contact the distributor directly for product support, shipping queries etc.
Is the 451361001 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 451361001 have stock available?
Authorised distributors including TME, Conrad, Farnell, Heilind Americas and Newark Electronics have stock available or on a lead time for 451361001.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 451361001 often in real-time on the comparison pages.
What if I can't find stock of 451361001?
You can fill out our help required form which you can use to request a quote for 451361001 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
