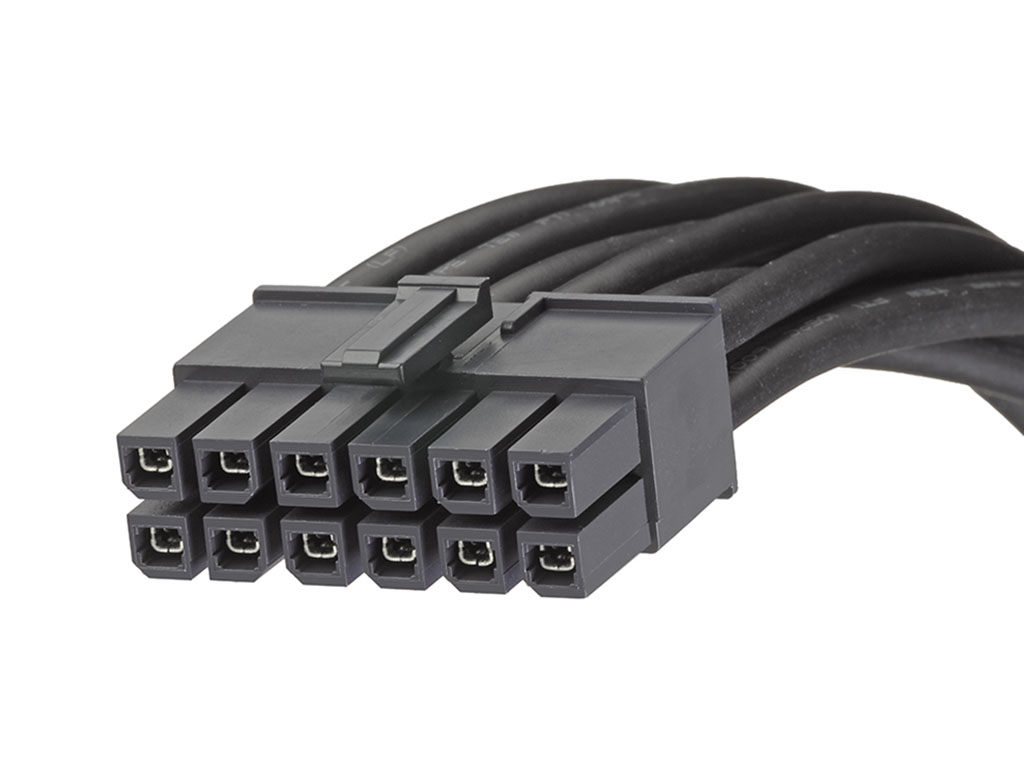

451361210 Mega-Fit by Molex
Mega-Fit-to-Mega-Fit Off-the-Shelf (OTS) Cable Assembly, Dual Row, 1.0m Length, Matte Tin Plated, 12 Circuits, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
45136-1210,
0451361210 |
Where to Buy
Prices starting from US$21.50
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$21.81
|
0
in stock
|
Buy Now |
|
RS Americas
from US$37.71
|
0
in stock
|
Buy Now |
|
element14
from US$26.53
|
0
in stock
|
Buy Now |
|
Conrad
from US$27.08
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$21.50
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$21.91
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$22.37
|
0
in stock
|
Buy Now |
|
Farnell
from US$28.77
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mega-Fit |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 23.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Cable Length | 1.0m |
| Circuits Loaded | 12 |
| Circuits Maximum | 12 |
| Color Resin | Black |
| Gender | Female-Female |
| Lock To Mating Part | Yes |
| Material Metal | Copper Alloy |
| Material Plating Mating | Matte Tin |
| Material Plating Termination | Matte Tin |
| Material Resin | Nylon |
| Net Weight | 526.711/g |
| Number Of Rows | 2 |
| Over Molded | No |
| Pitch Mating Interface | 5.70mm |
| Plating Min Mating | 1.524µm |
| Plating Min Termination | 1.524µm |
| Singleended | No |
| Termination Interface Style | Crimp or Compression |
| Wire Cable Type | UL 1015 |
| Wire Size Awg | 12 |
