451460203 Squba by Molex

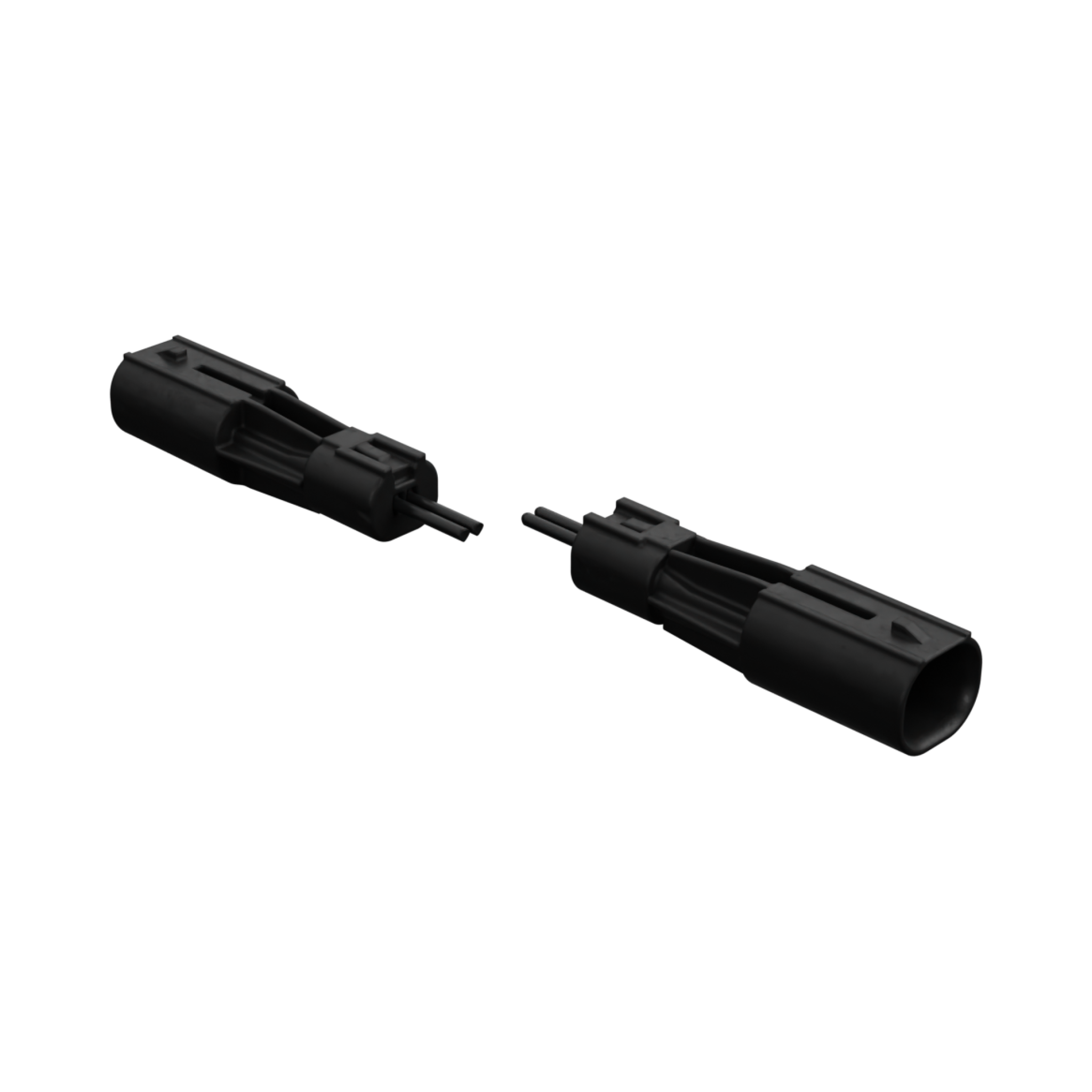

Squba 1.8-to-Squba 1.8 Off-the-Shelf (OTS) Plug Cable Assembly, Single Row, 300.00mm, 2 Circuits, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
45146-0203,
0451460203 |
Where to Buy
Prices starting from US$3.34
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$8.28
|
150
in stock
|
Buy Now |
|
Conrad
from US$9.01
|
150
in stock
|
Buy Now |
|
Farnell
from US$14.49
|
135
in stock
|
Buy Now |
|
RS Americas
from US$3.34
|
50
in stock
|
Buy Now |
|
Newark Electronics
from US$3.72
|
47
in stock
|
Buy Now |
|
Heilind Americas
from US$5.94
|
37
in stock
|
Buy Now |
|
Avnet America
from US$4.95
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$5.51
|
0
in stock
|
Buy Now |
|
Sager
from US$6.96
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$6.01
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Squba |
|---|---|
| Application | Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 5.0A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Cable Length | 300.00mm |
| Circuits Loaded | 2 |
| Circuits Maximum | 2 |
| Color Resin | Black |
| Gender | Male-Male |
| Lock To Mating Part | Yes |
| Material Metal | Copper Alloy |
| Material Plating Mating | Matte Tin |
| Material Plating Termination | Matte Tin |
| Material Resin | Nylon |
| Net Weight | 8.024/g |
| Number Of Rows | 1 |
| Over Molded | No |
| Pitch Mating Interface | 1.80mm |
| Plating Min Mating | 2.500µm |
| Plating Min Termination | 2.500µm |
| Singleended | No |
| Termination Interface Style | Crimp or Compression |
| Wire Cable Type | UL 1061 |
| Wire Size Awg | 22 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 45146-0203 | TME |
| Molex 45146-0203 1 St. Bulk | Conrad |
| CABLE ASSY, SQUBA 2P RCPT-RCPT, 11.8" | Farnell |
| SQUBA OFF-THE-SHELF, PLUG CABLE ASSEMBLY, 300MM, 2 CIRCUITS, BLACK, SEALED IP68 | RS Americas |
| Cable Assy, Squba 2P Rcpt-Rcpt, 11.8" | Newark Electronics |
| CAB ASY,2 CKT PLUG,300MM SQUBA | Heilind Americas |
| SQUBA 02P PLG OTS CABLE ASSY | TTI Americas |
| Rectangular Cable Assemblies SQUBA 02P PLG OTS CABLE ASSY | Sager |
