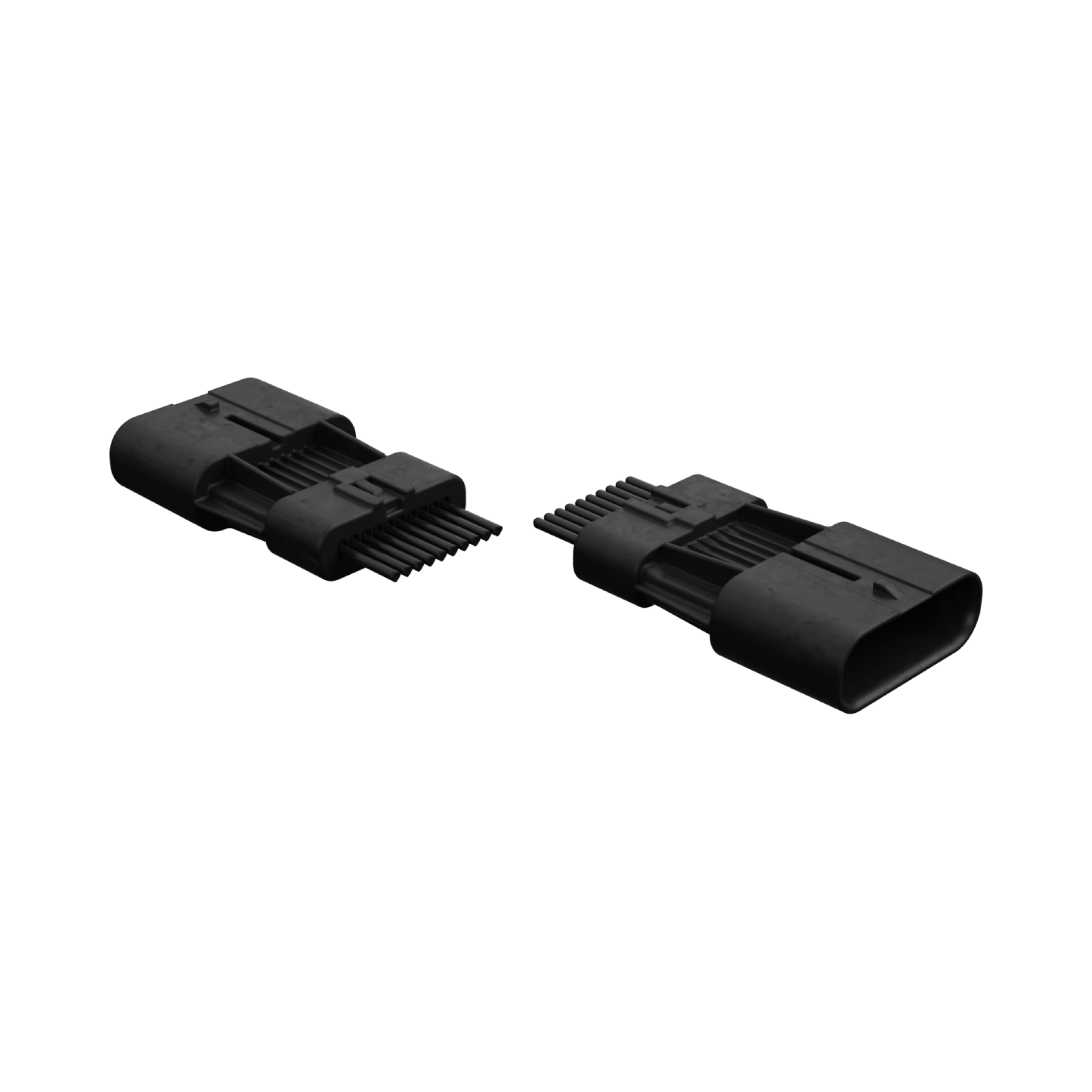

451461003 Squba by Molex
Squba 1.8-to-Squba 1.8 Off-the-Shelf (OTS) Plug Cable Assembly, Single Row, 300.00mm, 10 Circuits, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
45146-1003,
0451461003 |
Where to Buy
Prices starting from US$4.67
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$12.11
|
143
in stock
|
Buy Now |
|
Conrad
from US$15.80
|
143
in stock
|
Buy Now |
|
Farnell
from US$12.82
|
129
in stock
|
Buy Now |
|
RS Americas
from US$4.67
|
50
in stock
|
Buy Now |
|
Heilind Americas
from US$7.94
|
37
in stock
|
Buy Now |
|
Newark Electronics
from US$10.83
|
24
in stock
|
Buy Now |
|
element14
from US$11.90
|
20
in stock
|
Buy Now |
|
|
RS
from US$16.08
|
0
in stock
|
Buy Now |
|
Avnet America
from US$10.61
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$6.96
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$8.52
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Squba |
|---|---|
| Application | Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 5.0A |
| Voltage Maximum | 125V |
Physical |
|
|---|---|
| Cable Length | 300.00mm |
| Circuits Loaded | 10 |
| Circuits Maximum | 10 |
| Color Resin | Black |
| Gender | Male-Male |
| Lock To Mating Part | Yes |
| Material Metal | Copper Alloy |
| Material Plating Mating | Matte Tin |
| Material Plating Termination | Matte Tin |
| Material Resin | Nylon |
| Net Weight | 27.501/g |
| Number Of Rows | 1 |
| Over Molded | No |
| Pitch Mating Interface | 1.80mm |
| Plating Min Mating | 2.500µm |
| Plating Min Termination | 2.500µm |
| Singleended | No |
| Termination Interface Style | Crimp or Compression |
| Wire Cable Type | UL 1061 |
| Wire Size Awg | 22 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 45146-1003 | TME |
| Molex 45146-1003 1 St. Bulk | Conrad |
| CABLE ASSY, SQUBA 10P RCPT-RCPT, 11.8" | Farnell |
| SQUBA OFF-THE-SHELF, PLUG CABLE ASSEMBLY, 300MM, 10 CIRCUITS, BLACK, SEALED IP68 | RS Americas |
| CAB ASY,10 CKT PLUG,300MM SQUBA | Heilind Americas |
| Cable Assy, Squba 10P Rcpt-Rcpt, 11.8" | Newark Electronics |
| CABLE ASSY, SQUBA 10P PLUG-PLUG, 300MM | element14 |
| Molex 45146-1003 Cable Assembly | RS |
| SQUBA 10P PLG OTS CABLE ASSY | TTI Americas |
