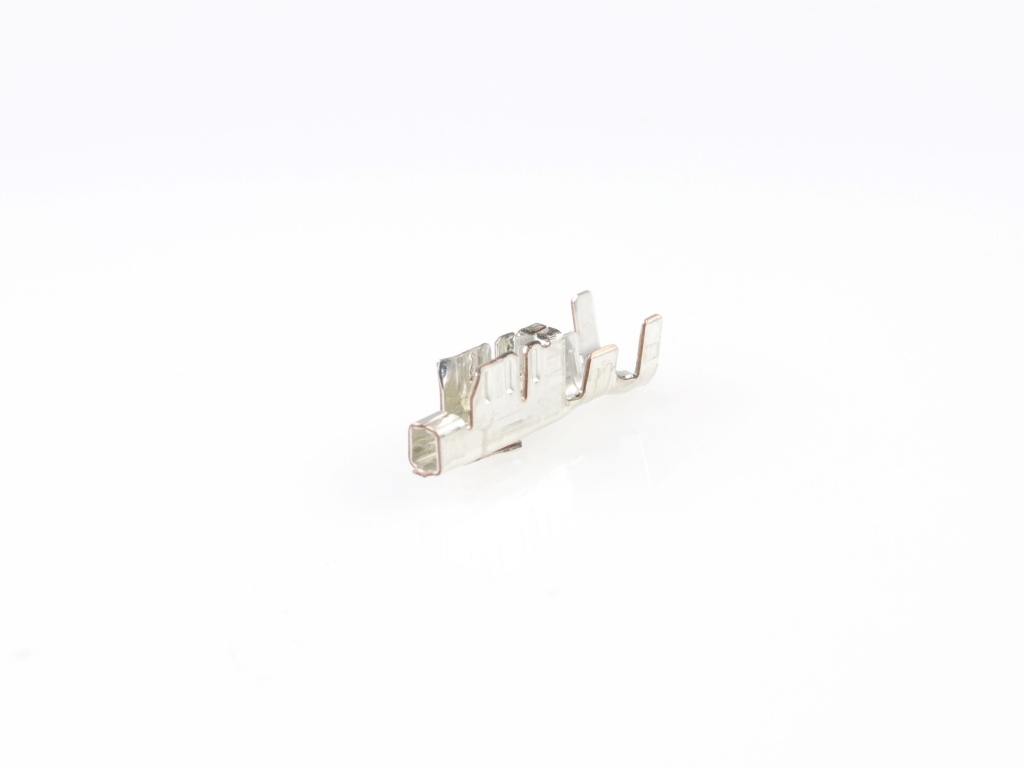

455703050 KK 396,KK Plus by Molex
Female Crimp Terminal for 3.96mm Pitch Housing, 20-18 AWG, Pre-Tinned Plating, Bag
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
45570-3050,
0455703050 |
Where to Buy
Prices starting from US$0.09
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$0.10
|
4,915
in stock
|
Buy Now |
|
TME
from US$0.12
|
727
in stock
|
Buy Now |
|
RS
from US$0.12
|
0
in stock
|
Buy Now |
|
Avnet America
from US$0.09
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$0.20
|
0
in stock
|
Buy Now |
|
element14
from US$0.11
|
0
in stock
|
Buy Now |
|
Farnell
from US$0.10
|
0
in stock
|
Buy Now |
|
Newark Electronics
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | KK 396,KK Plus |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 13.0A |
| Voltage Maximum | 600V DC |
Physical |
|
|---|---|
| Durability Mating Cycles Max | 25 |
| Gender | Female |
| Material Metal | Copper Alloy |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 0.242/g |
| Packaging Alternative Part | Array |
| Plating Min Mating | 2.032µm |
| Plating Min Termination | 2.032µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 3.12mm |
| Wire Size Awg | 18, 20 |
| Wire Size Mm | 1.14 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| KK .156 CRMP 18-20 SN | TTI Americas |
| Connector: wire-board | TME |
| Molex 45570-3050 Crimp Terminal | RS |
| Contact SKT Crimp ST Cable Mount Bag | Avnet America |
| HEADERS, 18-20AWG CRIMP TERM PRE-TINNED FEM LOOSE | RS Americas |
| CONTACT, SOCKET, 18AWG, CRIMP | element14 |
| Contact, Markkt, 45570 Series, Socket, 18 Awg, 20 Awg, Crimp, Copper Alloy Rohs Compliant: Yes |Molex 45570-3050 | Newark Electronics |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 455703050?
Additional datasheets, footprints and schematics for 455703050 are listed on our Part Details page. You can also find images and similar parts to 455703050 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 455703050 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 455703050 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 455703050 fall under?
The 455703050 is listed under Crimp Terminals.
Can I view similar or alternative parts?
You can view similar parts to 455703050 when available in the Crimp Terminals range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 455703050 you can contact the distributor directly for product support, shipping queries etc.
Is the 455703050 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 455703050 have stock available?
Authorised distributors including TTI Americas, TME, RS, Avnet America and RS Americas have stock available or on a lead time for 455703050.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 455703050 often in real-time on the comparison pages.
What if I can't find stock of 455703050?
You can fill out our help required form which you can use to request a quote for 455703050 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
