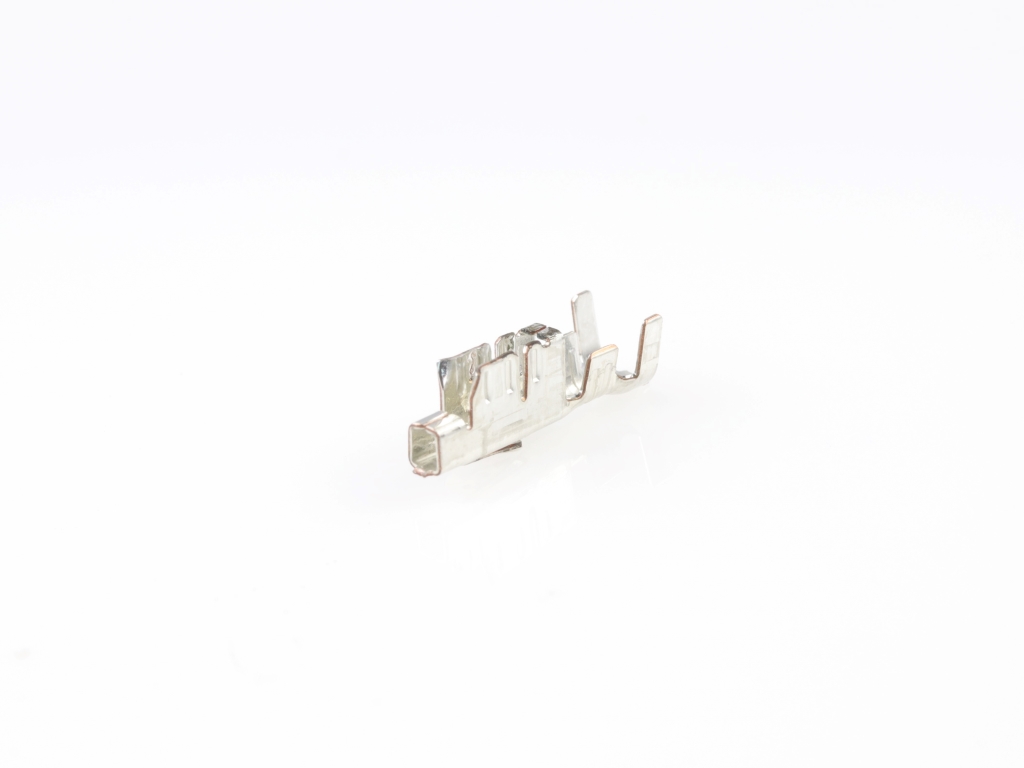

455703052 KK 396,KK Plus by Molex
Female Crimp Terminal for 3.96mm Pitch Housing, 20-18 AWG, Tin (Sn) over Nickel (Ni) Plating, Bag
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
45570-3052,
0455703052 |
Where to Buy
Prices starting from US$0.07
Specifications
| Product Name | KK 396,KK Plus |
|---|---|
| Application | Wire-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 13.0A |
| Voltage Maximum | 600V DC |
Physical |
|
|---|---|
| Durability Mating Cycles Max | 25 |
| Gender | Female |
| Material Metal | Copper Alloy |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 0.242/g |
| Packaging Alternative Part | Array |
| Plating Min Mating | 5.080µm |
| Plating Min Termination | 5.080µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 3.12mm |
| Wire Size Awg | 18, 20 |
| Wire Size Mm | 1.14 |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex 455703052 Crimp Terminal | RS |
| KKGEN2 156 TIN/NICKEL LOOSE CR | Heilind Americas |
| Contact, Female, 20-18Awg, Crimp | Newark Electronics |
| KKGEN2 156 TIN/NICKEL LOOSE CRIMP 18-20 | RS Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 455703052?
Additional datasheets, footprints and schematics for 455703052 are listed on our Part Details page. You can also find images and similar parts to 455703052 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 455703052 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 455703052 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 455703052 fall under?
The 455703052 is listed under Crimp Terminals.
Can I view similar or alternative parts?
You can view similar parts to 455703052 when available in the Crimp Terminals range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 455703052 you can contact the distributor directly for product support, shipping queries etc.
Is the 455703052 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 455703052 have stock available?
Authorised distributors including RS, Heilind Americas, Newark Electronics, RS Americas and Heilind Europe have stock available or on a lead time for 455703052.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 455703052 often in real-time on the comparison pages.
What if I can't find stock of 455703052?
You can fill out our help required form which you can use to request a quote for 455703052 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
