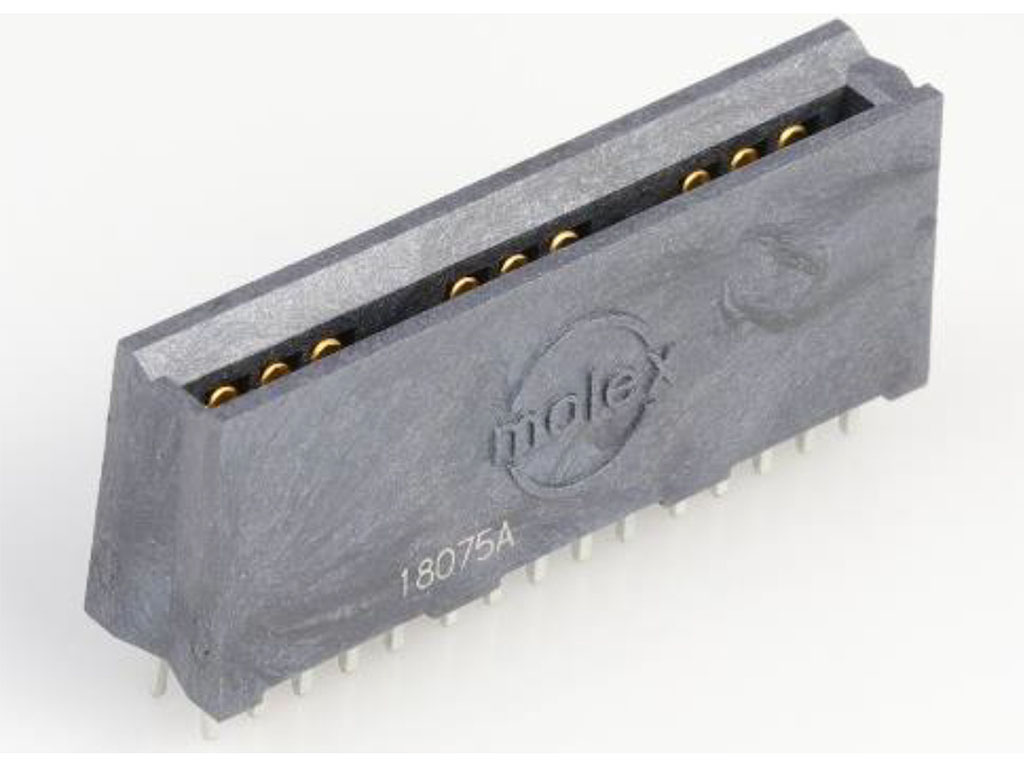

457190001 Bus Bar Socket,EXTreme PowerEdge by Molex
12.90mm Pitch EXTreme PowerEdge Connector, 2 Segments, 4.50mm Tail Length, Through Hole, Mates to 1.57mm Thick Card Edge or Bus Bar Tab
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
45719-0001,
0457190001 |
Specifications
| Product Name | Bus Bar Socket,EXTreme PowerEdge |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 40.0A |
| Data Rate | Unrated |
| High Power Bay300a Or More | Yes |
| Voltage Maximum | 250V |
Physical |
|
|---|---|
| Circuits Loaded | 4 |
| Circuits Maximum | 4 |
| Color Resin | Black |
| Durability Mating Cycles Max | 50 |
| Edge Card Thickness | 1.57mm |
| Entry Angle | Vertical (Top Entry) |
| Flammability | 94V-0 |
| Keying To Mating Part | N/A |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 5.072/g |
| Orientation | Vertical |
| Pcb Thickness Recommended | 2.36mm, 3.18mm |
| Pc Tail Length | 4.50mm |
| Pitch Mating Interface | 12.90mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 2.540µm |
| Power Signal Configuration | 4p - 0s |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
