457503212 Mini-Fit Plus by Molex

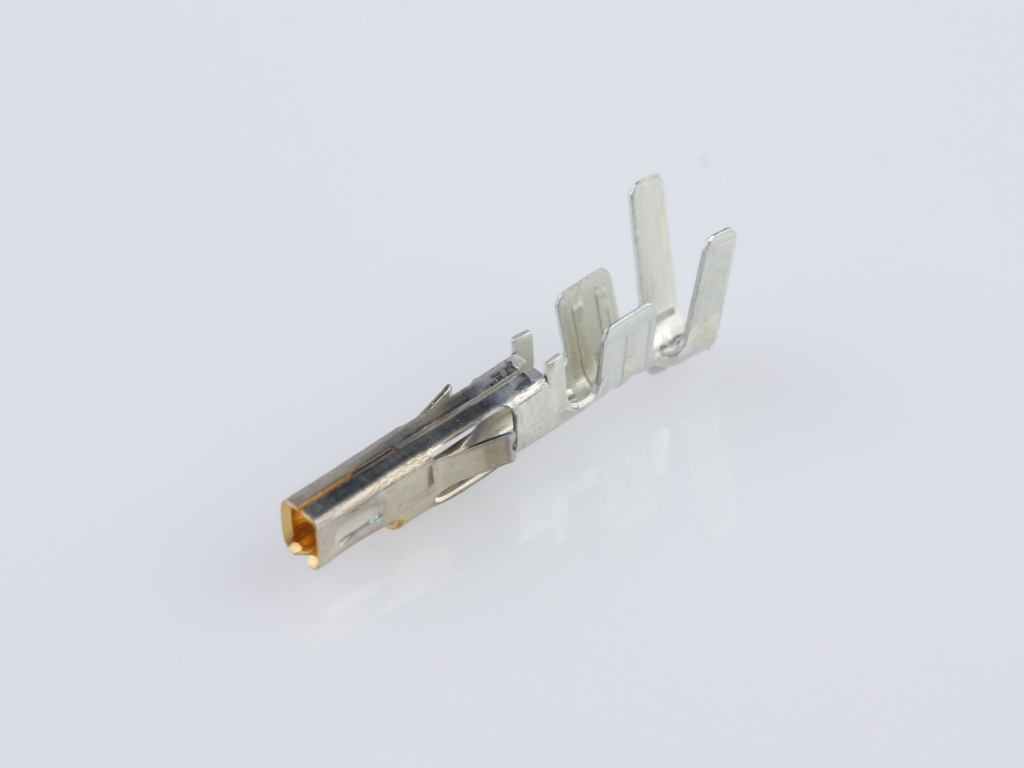

Mini-Fit Plus Female Crimp Terminal, 16 AWG, Copper Alloy, 0.76µm Gold (Au) Selective Plating, Bag
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
45750-3212,
0457503212 |
Where to Buy
Prices starting from US$0.32
| Distributor | Stock | ||
|---|---|---|---|
|
element14
from US$0.56
|
3,407
in stock
|
Buy Now |
|
Farnell
from US$0.61
|
3,407
in stock
|
Buy Now |
|
Conrad
from US$0.63
|
3,074
in stock
|
Buy Now |
|
Heilind Americas
from US$0.32
|
2,823
in stock
|
Buy Now |
|
Avnet America
from US$0.44
|
0
in stock
|
Buy Now |
|
Compona
from US$0.39
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.37
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit Plus |
|---|---|
| Application | Wire-to-Board, Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 13.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Durability Mating Cycles Max | 250 |
| Gender | Female |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Net Weight | 0.148/g |
| Packaging Alternative Part | Array |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 2.540µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 3.50mm |
| Wire Size Awg | 16 |
| Wire Size Mm | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CONTACT, SOCKET, 16AWG, CRIMP | element14 |
| MINIFIT 457503212 Molex Inhalt: 1 St. | Conrad |
| MF PLUS HCS CRIMP TERM. FEMALE | Heilind Americas |
| Contact SKT Crimp ST Cable Mount Bag | Avnet America |
| MOLEX 45750-3212 Crimp Terminal, 16 AWG, Bag Copper Alloy, Gold Selective | Compona |
