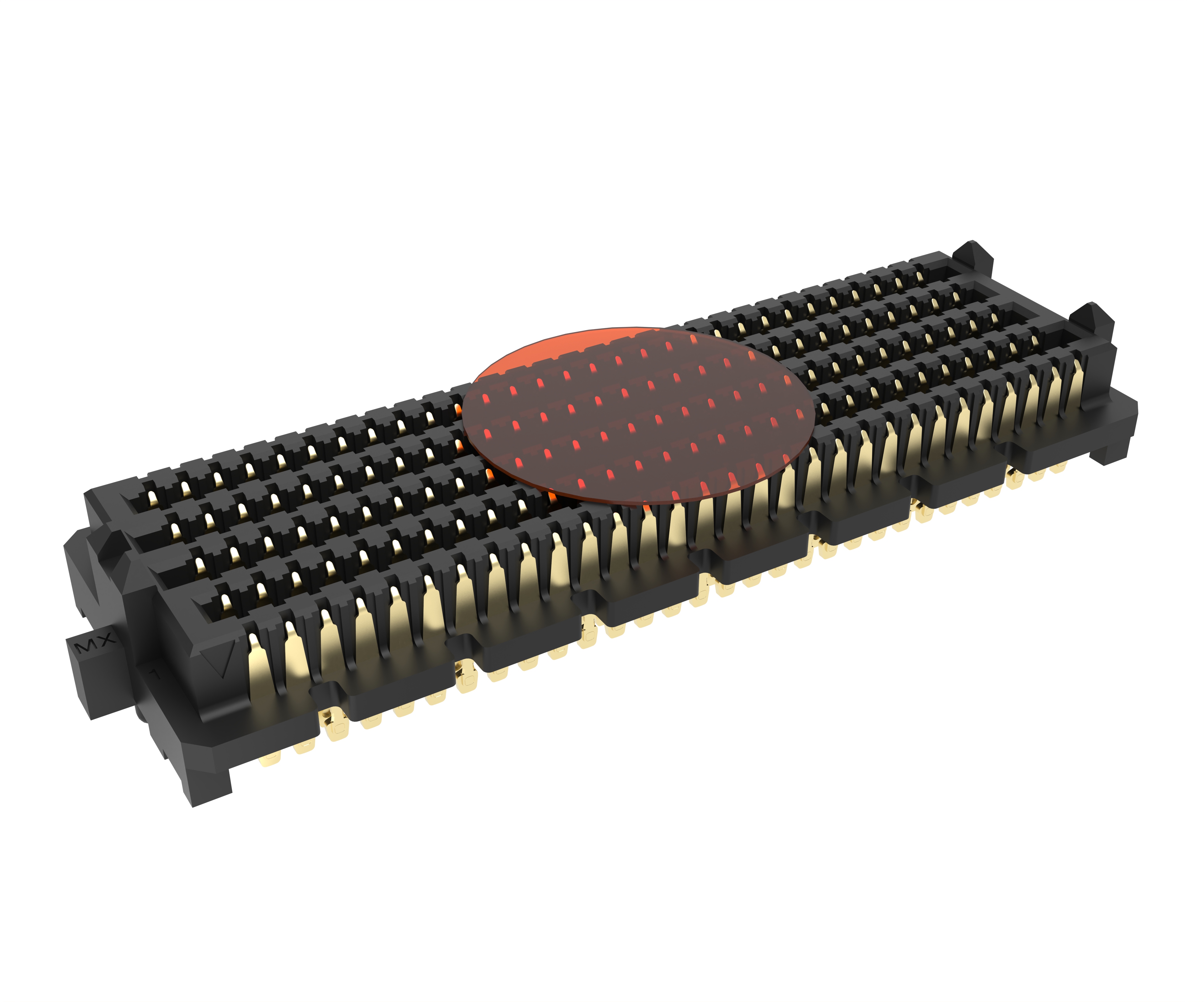

459703115 SEARAY by Molex
1.27mm Pitch, SEARAY Plug, 300 Circuits, 2.00mm Unmated Height, 10 Rows, with Pegs, Solder Charge Lead-Free
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
45970-3115,
0459703115 |
Where to Buy
Prices starting from US$22.43
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$22.43
|
1,500
in stock
|
Buy Now |
|
TME
from US$24.45
|
1,500
in stock
|
Buy Now |
|
Conrad
from US$24.04
|
1,500
in stock
|
Buy Now |
|
Farnell
from US$25.48
|
1,500
in stock
|
Buy Now |
|
element14
from US$24.29
|
5
in stock
|
Buy Now |
|
RS
from US$42.88
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$23.52
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$25.84
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | SEARAY |
|---|---|
| Application | Board-to-Board, Mezzanine |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 2.7A |
| Voltage Maximum | 240V AC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 300 |
| Circuits Maximum | 300 |
| Color Resin | Black |
| Durability Mating Cycles Max | 100 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | Yes |
| Keying To Mating Part | Yes |
| Lock To Mating Part | No |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 3.926/g |
| Number Of Rows | 10 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 1.27mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Robotic Placement | Pick and Place Cap |
| Shrouded | Unshrouded |
| Stackable | No |
| Temperature Range Operating | -55° to +125°C |
| Termination Interface Style | Surface Mount |
| Unmated Height | 2.00mm |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connectors 1.27Mm Searay Plug 10Row 300P 3.5Mm Sh |Molex 45970-3115 | Newark Electronics |
| Connector: PCB to PCB | TME |
| Molex Mezzanine-Steckverbinder 45970-3115 1 St. Tape on Full reel | Conrad |
| MEZZANINE - ARRAYS | Farnell |
| CONNECTOR, STACKING, HDR, 300POS, 10ROWS | element14 |
| Molex 45970-3115 PCB Header | RS |
| SEARAY PLUG ASSY 10X30X1. REEL | Heilind Americas |
