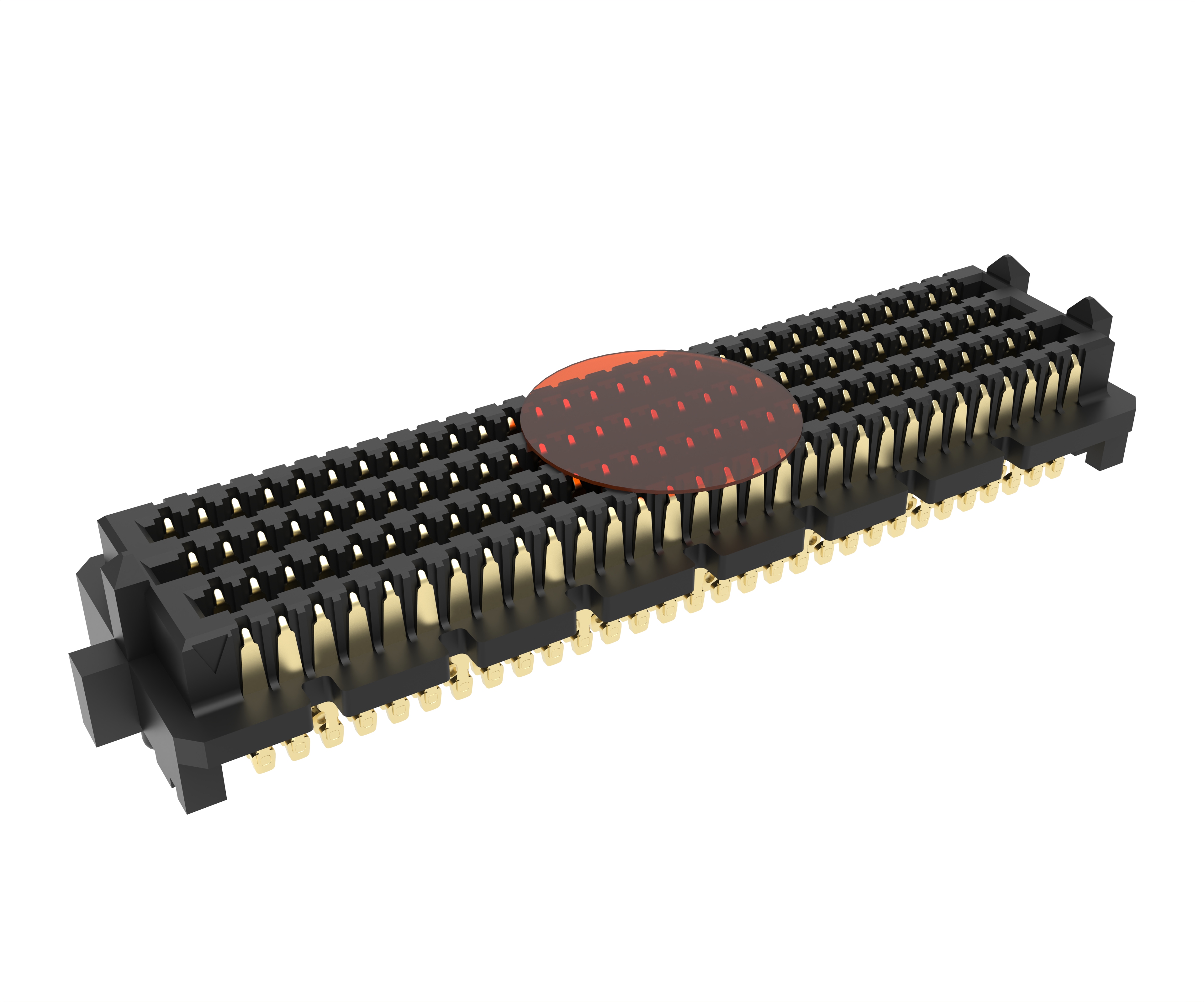

459703385 SEARAY by Molex
1.27mm Pitch, SEARAY Plug, 240 Circuits, 3.50mm Unmated Height, 8 Rows, with Pegs, Solder Charge Lead-Free
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
45970-3385,
0459703385 |
Where to Buy
Prices starting from US$16.64
Specifications
| Product Name | SEARAY |
|---|---|
| Application | Board-to-Board, Mezzanine |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 2.7A |
| Voltage Maximum | 240V AC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 240 |
| Circuits Maximum | 240 |
| Color Resin | Black |
| Durability Mating Cycles Max | 100 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | Yes |
| Keying To Mating Part | Yes |
| Lock To Mating Part | No |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 3.044/g |
| Number Of Rows | 8 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 1.27mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Robotic Placement | Pick and Place Cap |
| Shrouded | Unshrouded |
| Stackable | No |
| Temperature Range Operating | -55° to +125°C |
| Termination Interface Style | Surface Mount |
| Unmated Height | 3.50mm |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector, Stacking, Hdr, 240Pos, 8Row | Newark Electronics |
| SEARAY PLUG ASSY 08X30X3.4 TIN REEL | RS Americas |
| SEARAY PLUG ASSY 08X30X3.4 TI REEL | Heilind Americas |
