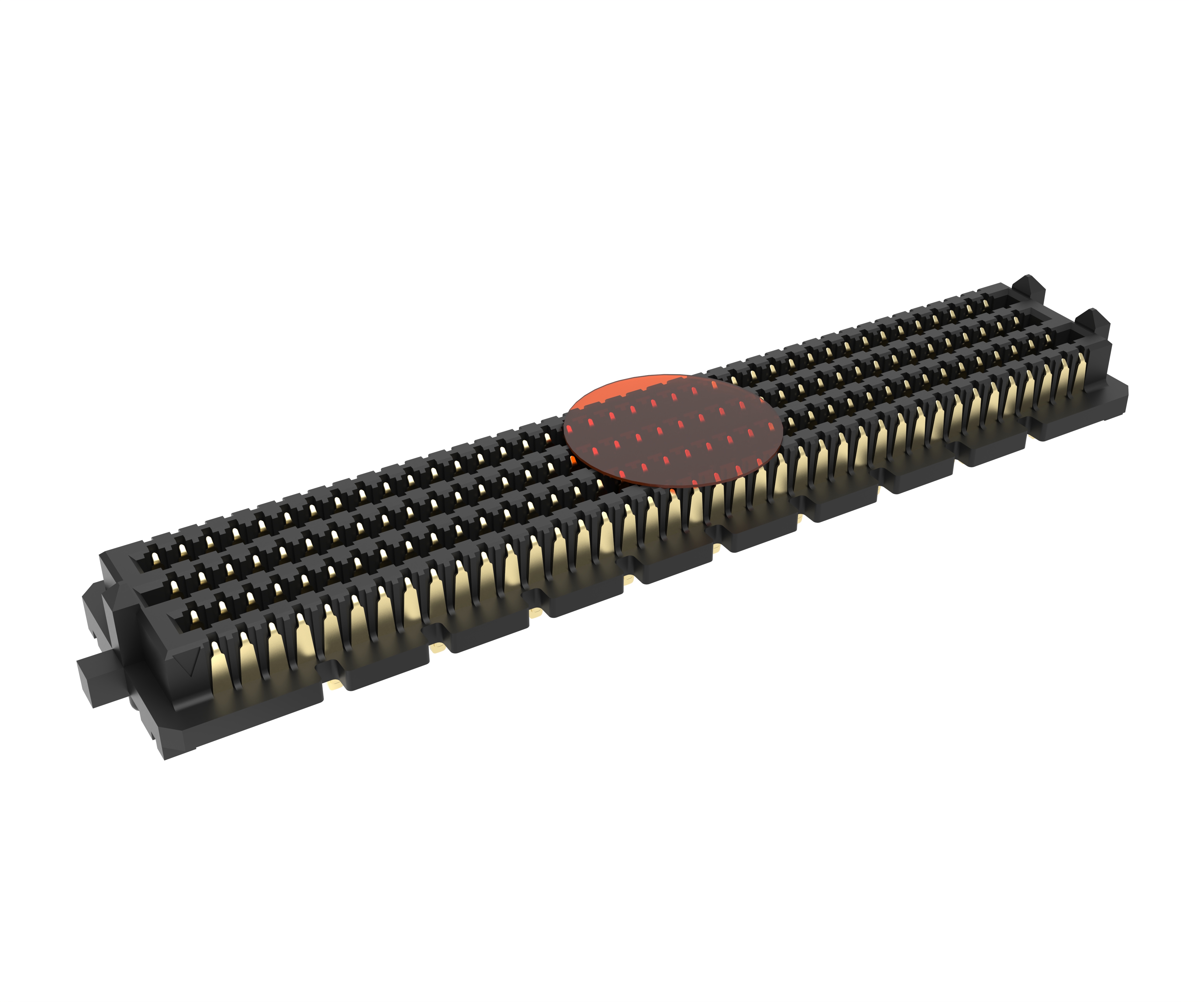

459704185 SEARAY by Molex
1.27mm Pitch, SEARAY Plug, 320 Circuits, 2.00mm Unmated Height, 8 Rows, with Pegs, Solder Charge Lead-Free
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
45970-4185,
0459704185 |
Where to Buy
Prices starting from US$22.34
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$55.07
|
190
in stock
|
Buy Now |
|
Farnell
from US$52.60
|
190
in stock
|
Buy Now |
|
TTI Americas
from US$62.33
|
94
in stock
|
Buy Now |
|
Avnet America
from US$22.99
|
0
in stock
|
Buy Now |
|
RS Americas
from US$36.78
|
0
in stock
|
Buy Now |
|
Sager
from US$32.38
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$31.87
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$41.09
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$22.34
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | SEARAY |
|---|---|
| Application | Board-to-Board, Signal, Mezzanine |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 2.7A |
| Voltage Maximum | 240V AC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 320 |
| Circuits Maximum | 320 |
| Color Resin | Black |
| Durability Mating Cycles Max | 100 |
| First Mate Last Break | No |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | Yes |
| Keying To Mating Part | Yes |
| Lock To Mating Part | No |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 4.130/g |
| Number Of Rows | 8 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 1.27mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Robotic Placement | Pick and Place Cap |
| Shrouded | Unshrouded |
| Stackable | No |
| Temperature Range Operating | -55° to +125°C |
| Termination Interface Style | Surface Mount |
| Unmated Height | 2.00mm |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Mezzanine Conn, Hdr, 320Pos, 8Row/1.27Mm Rohs Compliant: Yes |Molex 45970-4185 | Newark Electronics |
| MEZZANINE CONN, HDR, 320POS, 8ROW/1.27MM | Farnell |
| SEARAY PLUG ASSY 8X40X1.9 | TTI Americas |
| Conn Board to Board PL 320 POS 1.27mm Solder ST SMD Embossed T/R | Avnet America |
| SeaRay Plug Assy 08x40x1.9 Tin Reel | RS Americas |
| Board to Board & Mezzanine Connectors SEARAY PLUG ASSY 8X40X1.9 | Sager |
| SEARAY PLUG ASSY 08X40X1.9 TI REEL | Heilind Americas |
