459714515 SEARAY by Molex

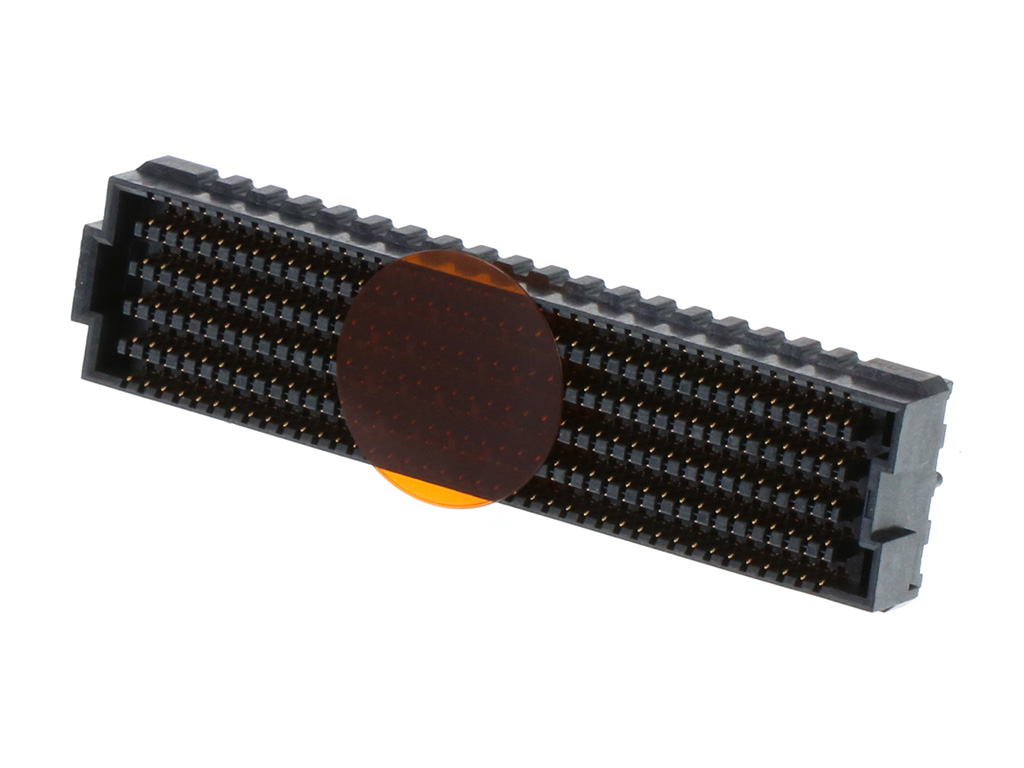

1.27mm Pitch, SEARAY Receptacle, 400 Circuits, 8.00mm Unmated Height, 10 Rows, with Pegs, Solder Charge Lead-Free
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
45971-4515,
0459714515 |
Where to Buy
Prices starting from US$20.13
Specifications
| Product Name | SEARAY |
|---|---|
| Application | Board-to-Board, Mezzanine |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 2.7A |
| Voltage Maximum | 240V AC |
Physical |
|
|---|---|
| Circuits Loaded | 400 |
| Circuits Maximum | 400 |
| Color Resin | Black |
| Durability Mating Cycles Max | 100 |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 7.125/g |
| Number Of Rows | 10 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 1.27mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Robotic Placement | Pick and Place Cap |
| Stackable | No |
| Temperature Range Operating | -55° to +125°C |
| Termination Interface Style | Surface Mount |
| Unmated Height | 8.00mm |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Stacking Conn, Rcpt, 400Pos, 1.27Mm Rohs Compliant: Yes |Molex 45971-4515 | Newark Electronics |
| SeaRay Recpt Assy 10x40x8.1 Tin Reel | RS Americas |
| SEARAY RECPT ASSY 10X40X8.1 T N REEL | Heilind Americas |
| SEARAY RECPT ASSY 10X40X8.1 TIN REEL | Farnell |
