459844343 EXTreme LPHPower by Molex

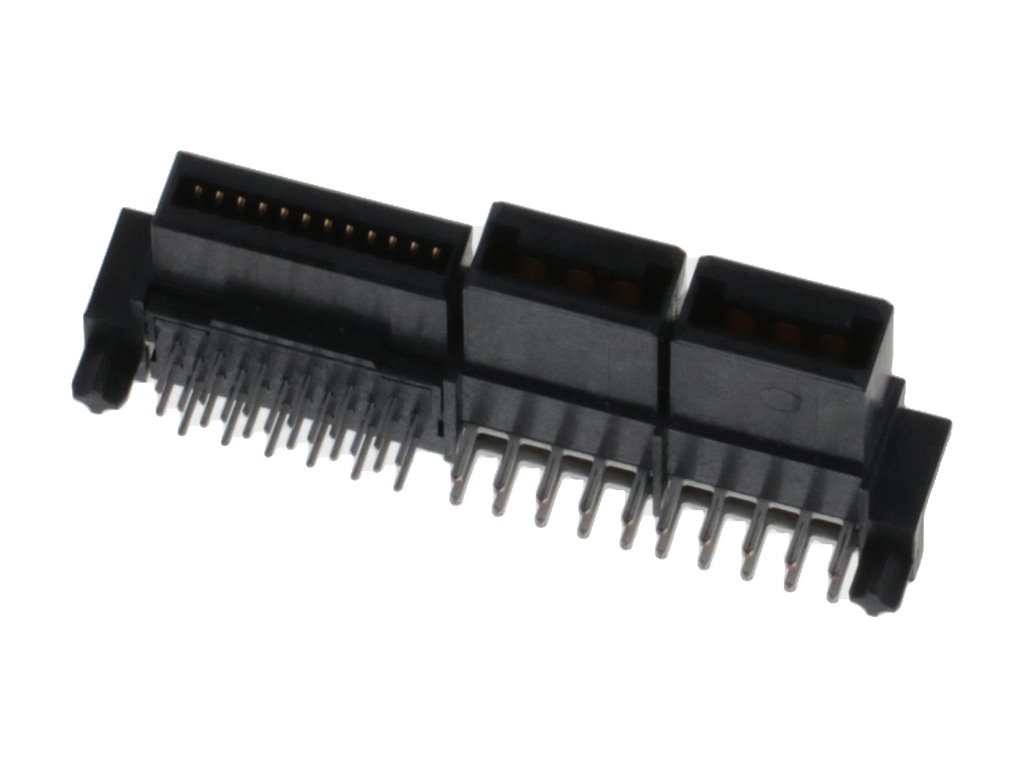

EXTreme LPHPower Receptacle Header, Right-Angle, 4 Power Contacts, 24 Signal Contacts, Select Gold (Au) Plating, for 1.57mm Thick PC Board, with Press-fit Plastic Pegs
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
45984-4343,
0459844343 |
Where to Buy
Prices starting from US$5.49
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$15.67
|
7
in stock
|
Buy Now |
|
Heilind Americas
from US$13.00
|
6
in stock
|
Buy Now |
|
RS Americas
from US$7.82
|
4
in stock
|
Buy Now |
|
Avnet America
from US$13.85
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$11.62
|
0
in stock
|
Buy Now |
|
Sager
from US$12.68
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$5.49
|
0
in stock
|
Buy Now |
|
Farnell
from US$8.47
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$8.06
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | EXTreme LPHPower |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 30.0A |
| Voltage Maximum | 250V AC (RMS)/DC (Power), 30V DC (Signal) |
Physical |
|
|---|---|
| Circuits Loaded | 28 |
| Circuits Maximum | 28 |
| Color Resin | Black |
| Durability Mating Cycles Max | 250 |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Metal | High Performance Alloy (HPA) |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 7.178/g |
| Number Of Rows | 2 |
| Orientation | Right Angle |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.57mm |
| Pc Tail Length | 2.90mm |
| Pitch Mating Interface | 12.00mm, 1.27mm |
| Pitch Termination Interface | 2.00mm, 2.50mm, 1.27mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 3.810µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Power Signal Configuration | 4p - 24s |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole |
