460181541 Mini-Fit Plus by Molex

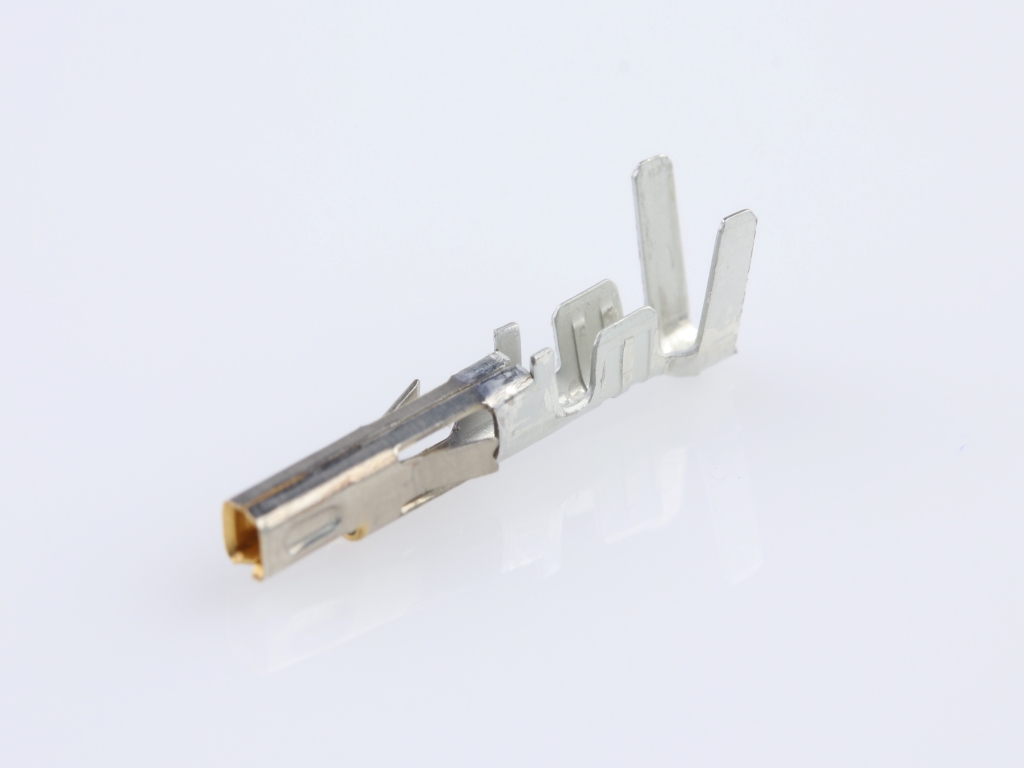

Mini-Fit Plus High Mating Cycle Female Crimp Terminal, 20-18 AWG, Reel, Select Gold (Au) Plating with Proprietary Molex Advanced Contact Surface Finish (CSF) in Contact Area
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
46018-1541,
0460181541 |
Where to Buy
Prices starting from US$0.17
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.29
|
180,000
in stock
|
Buy Now |
|
element14
from US$0.40
|
3,108
in stock
|
Buy Now |
|
Newark Electronics
from US$0.64
|
225
in stock
|
Buy Now |
|
TTI Europe
from US$0.30
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.26
|
0
in stock
|
Buy Now |
|
Farnell
from US$0.40
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.17
|
0
in stock
|
Buy Now |
|
Offical Electronic
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit Plus |
|---|---|
| Application | Wire-to-Board, Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 13.0A |
| Voltage Maximum | 600V |
Physical |
|
|---|---|
| Durability Mating Cycles Max | 1500 |
| Gender | Female |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Net Weight | 0.150/g |
| Plating Min Mating | 0.051µm |
| Plating Min Termination | 2.540µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 1.65-2.95mm |
| Wire Size Awg | 18, 20 |
| Wire Size Mm | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MF PLUS HMC CRIMP TERM FEM 18-20GA | Heilind Americas |
| CONTACT, SOCKET, 18AWG, CRIMP | element14 |
| Contact, Socket, 18Awg, Crimp | Newark Electronics |
| MF PLUS HMC CRIMP TERM FE | TTI Europe |
| MINI FIT +HMC FE TERM 18-20AWG | TTI Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 460181541?
Additional datasheets, footprints and schematics for 460181541 are listed on our Part Details page. You can also find images and similar parts to 460181541 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 460181541 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 460181541 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 460181541 fall under?
The 460181541 is listed under Crimp Terminals.
Can I view similar or alternative parts?
You can view similar parts to 460181541 when available in the Crimp Terminals range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 460181541 you can contact the distributor directly for product support, shipping queries etc.
Is the 460181541 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 460181541 have stock available?
Authorised distributors including Heilind Americas, element14, Newark Electronics, TTI Europe and Heilind Europe have stock available or on a lead time for 460181541.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 460181541 often in real-time on the comparison pages.
What if I can't find stock of 460181541?
You can fill out our help required form which you can use to request a quote for 460181541 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
