461120201 EXTreme LPHPower by Molex

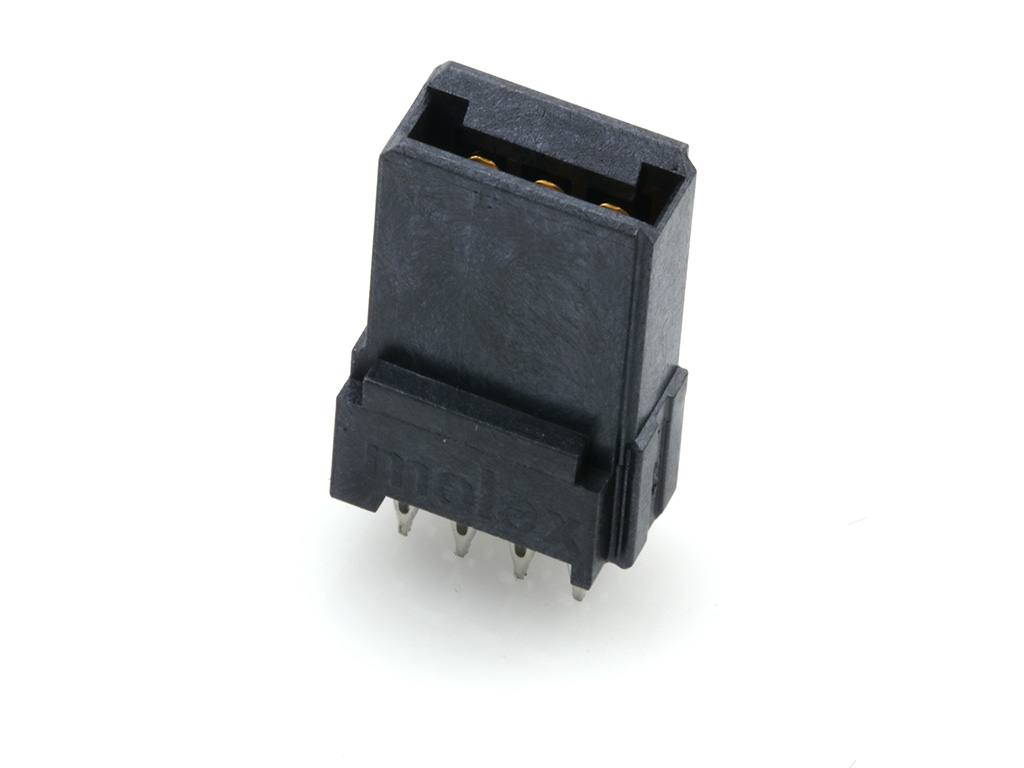

12.00mm Pitch, EXTreme LPHPower Receptacle Header, Vertical, 2 Power Contact, Select Gold (Au) Plating, without BMI Guides
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
46112-0201,
0461120201 |
Where to Buy
Prices starting from US$2.75
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$5.95
|
29,811
in stock
|
Buy Now |
|
Newark Electronics
from US$4.18
|
29,706
in stock
|
Buy Now |
|
TME
from US$2.82
|
29,706
in stock
|
Buy Now |
|
Farnell
from US$4.08
|
28,185
in stock
|
Buy Now |
|
RS Americas
from US$3.04
|
20
in stock
|
Buy Now |
|
|
RS
from US$5.46
|
0
in stock
|
Buy Now |
|
Avnet America
from US$3.51
|
0
in stock
|
Buy Now |
|
element14
from US$4.20
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$3.50
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$2.75
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | EXTreme LPHPower |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | Contact Molex |
| Voltage Maximum | 250V AC (RMS)/DC |
Physical |
|
|---|---|
| Circuits Loaded | 2 |
| Circuits Maximum | 2 |
| Color Resin | Black |
| Durability Mating Cycles Max | 250 |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Metal | High Performance Alloy (HPA) |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 1.840/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pitch Mating Interface | 12.00mm |
| Pitch Termination Interface | 12.00mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 1.270µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Power Signal Configuration | 2p - 0s |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole - Compliant Pin |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Buchsengehäuse-Platine Rastermaß: 12.00 mm 461120201 1 St. Tube | Conrad |
| 12.00Mm Pitch Extreme Lphpower Receptacle Header |Molex 46112-0201 | Newark Electronics |
| Contact | TME |
| PCB RECEPTACLES | Farnell |
| LPH VERT.POWER ASSY W INTERLOCK 2CKT | RS Americas |
| Molex 46112-0201 PCB Socket | RS |
| Conn LPH RCP 2 POS 12mm Solder ST Thru-Hole 8 Terminal 1 Port Tray | Avnet America |
| BTB CONN, RCPT, 2POS, 2ROW, PRESS FIT | element14 |
| LPH VERT.POWER ASSY W INTERLOCK 2CKT | Heilind Americas |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 461120201?
Additional datasheets, footprints and schematics for 461120201 are listed on our Part Details page. You can also find images and similar parts to 461120201 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 461120201 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 461120201 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 461120201 fall under?
The 461120201 is listed under Board-to-Board Connectors.
Can I view similar or alternative parts?
You can view similar parts to 461120201 when available in the Board-to-Board Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 461120201 you can contact the distributor directly for product support, shipping queries etc.
Is the 461120201 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 461120201 have stock available?
Authorised distributors including Conrad, Newark Electronics, TME, Farnell and RS Americas have stock available or on a lead time for 461120201.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 461120201 often in real-time on the comparison pages.
What if I can't find stock of 461120201?
You can fill out our help required form which you can use to request a quote for 461120201 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
