461142121 EXTreme LPHPower by Molex

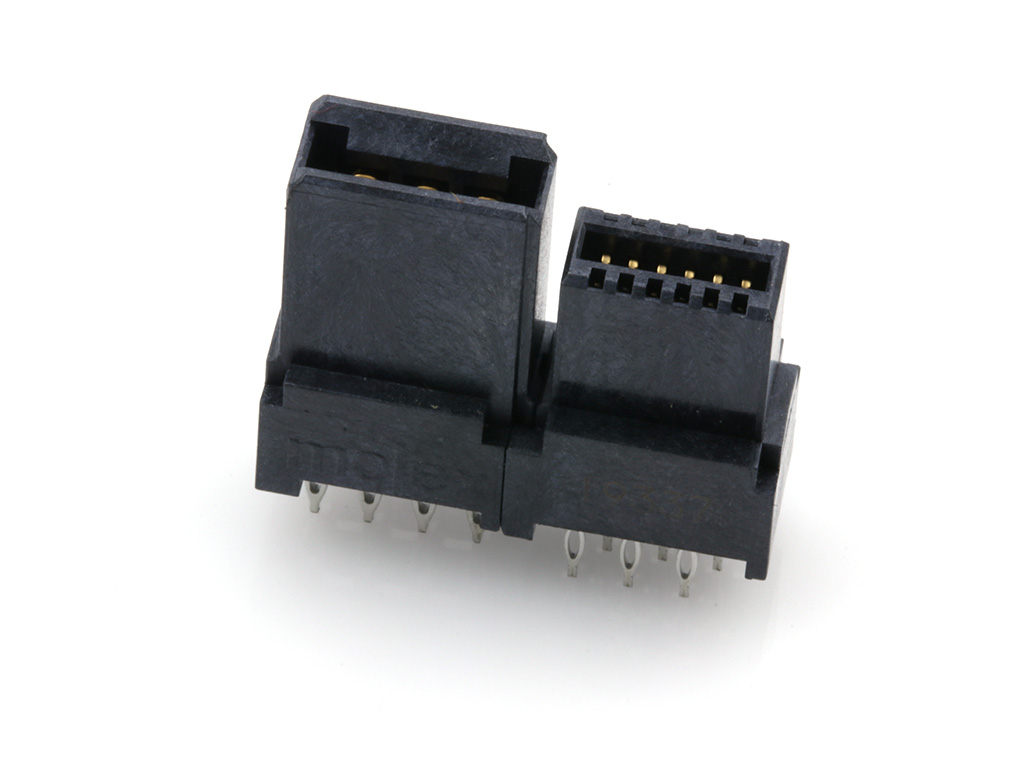

1.27mm, 12.00mm Pitch, EXTreme LPHPower Receptacle Header, Vertical, 2 Power Contacts, 12 Signal Contacts, Select Gold (Au) Plating, without BMI Guides
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
46114-2121,
0461142121 |
Where to Buy
Prices starting from US$3.94
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Europe
from US$5.52
|
52
in stock
|
Buy Now |
|
Newark Electronics
from US$5.21
|
0
in stock
|
Buy Now |
|
Avnet America
from US$3.94
|
0
in stock
|
Buy Now |
|
RS Americas
from US$7.00
|
0
in stock
|
Buy Now |
|
Sager
from US$4.20
|
0
in stock
|
Buy Now |
|
Farnell
from US$5.99
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | EXTreme LPHPower |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 30.0A |
| Voltage Maximum | 250V AC (RMS)/DC |
Physical |
|
|---|---|
| Circuits Loaded | 14 |
| Circuits Maximum | 14 |
| Color Resin | Black |
| Durability Mating Cycles Max | 250 |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Metal | High Performance Alloy (HPA) |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 3.468/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pitch Mating Interface | 1.27mm, 12.00mm |
| Pitch Termination Interface | 1.27mm, 2.50mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Power Signal Configuration | 2p - 12s |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole - Compliant Pin |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 1.27MM VERTICAL RECPT HEADER | TTI Europe |
| Connector, Rcpt, 14Pos, 2Rows | Newark Electronics |
| LPH VERT. ASSY NO GUIDES 2PX12S CKT | RS Americas |
| Heavy Duty Power Connectors LPH VERT. ASSY NO GUIDES 2PX12S CKT | Sager |
| CONNECTOR, RCPT, 14POS, 2ROWS | Farnell |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 461142121?
Additional datasheets, footprints and schematics for 461142121 are listed on our Part Details page. You can also find images and similar parts to 461142121 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 461142121 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 461142121 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 461142121 fall under?
The 461142121 is listed under Board-to-Board Connectors.
Can I view similar or alternative parts?
You can view similar parts to 461142121 when available in the Board-to-Board Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 461142121 you can contact the distributor directly for product support, shipping queries etc.
Is the 461142121 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 461142121 have stock available?
Authorised distributors including TTI Europe, Newark Electronics, Avnet America, RS Americas and Sager have stock available or on a lead time for 461142121.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 461142121 often in real-time on the comparison pages.
What if I can't find stock of 461142121?
You can fill out our help required form which you can use to request a quote for 461142121 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
