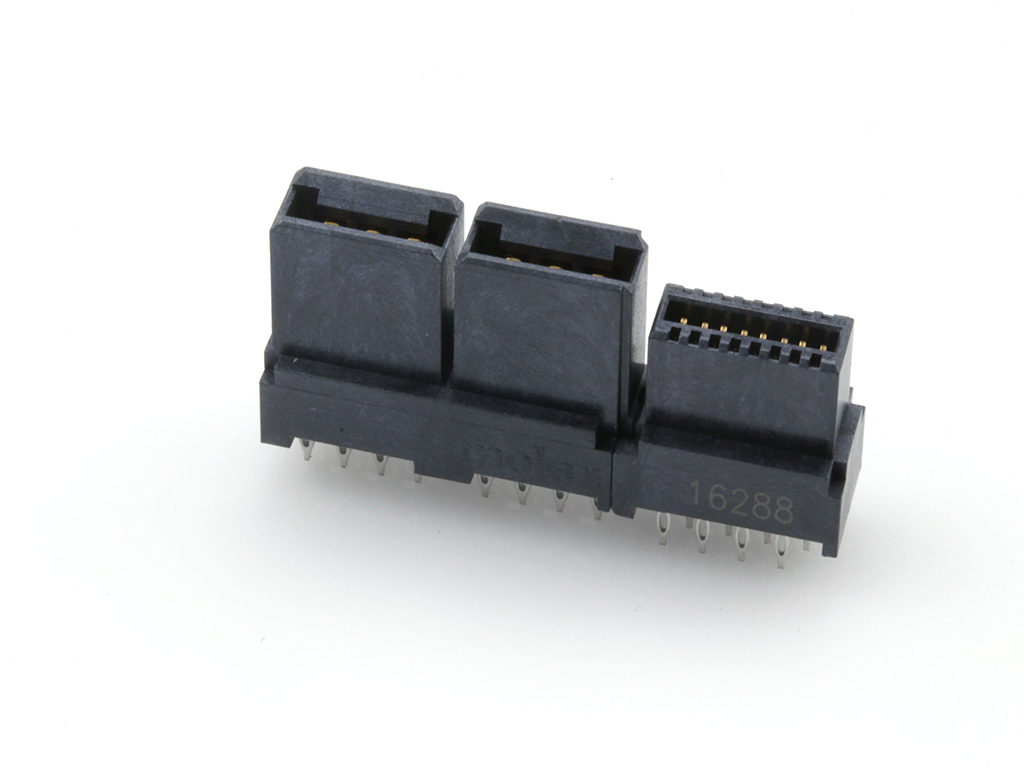

461144161 EXTreme LPHPower by Molex
1.27mm, 12.00mm Pitch, EXTreme LPHPower Receptacle Header, Vertical, 4 Power Contacts, 16 Signal Contacts, Select Gold (Au) Plating, without BMI Guides
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
46114-4161,
0461144161 |
Where to Buy
Prices starting from US$5.67
| Distributor | Stock | ||
|---|---|---|---|
|
TME
from US$8.18
|
160
in stock
|
Buy Now |
|
Conrad
from US$8.94
|
160
in stock
|
Buy Now |
|
element14
from US$7.54
|
142
in stock
|
Buy Now |
|
Farnell
from US$10.64
|
142
in stock
|
Buy Now |
|
Newark Electronics
from US$7.85
|
0
in stock
|
Buy Now |
|
Avnet America
from US$7.28
|
0
in stock
|
Buy Now |
|
RS Americas
from US$7.85
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$6.20
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$5.67
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | EXTreme LPHPower |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 30.0A |
| Voltage Maximum | 250V AC (RMS)/DC |
Physical |
|
|---|---|
| Circuits Loaded | 20 |
| Circuits Maximum | 20 |
| Color Resin | Black |
| Durability Mating Cycles Max | 250 |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Metal | High Performance Alloy (HPA) |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 5.804/g |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pitch Mating Interface | 1.27mm, 12.00mm |
| Pitch Termination Interface | 1.27mm, 2.50mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Power Signal Configuration | 4p - 16s |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Through Hole - Compliant Pin |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Contact | TME |
| Molex Buchsengehäuse-Platine 461144161 1 St. Tube | Conrad |
| CONNECTOR, RCPT, 20POS, 2ROWS | element14 |
| Connector, Rcpt, 20Pos, 2Rows | Newark Electronics |
| Conn LPH RCP 20 POS 1.27mm Solder ST Thru-Hole 20 Terminal 1 Port Tray | Avnet America |
| LPH VERT. ASSY NO GUIDES 4PX16S CKT | RS Americas |
| LPH VERT. ASSY NO GUIDES 4PX1 S CKT | Heilind Americas |
