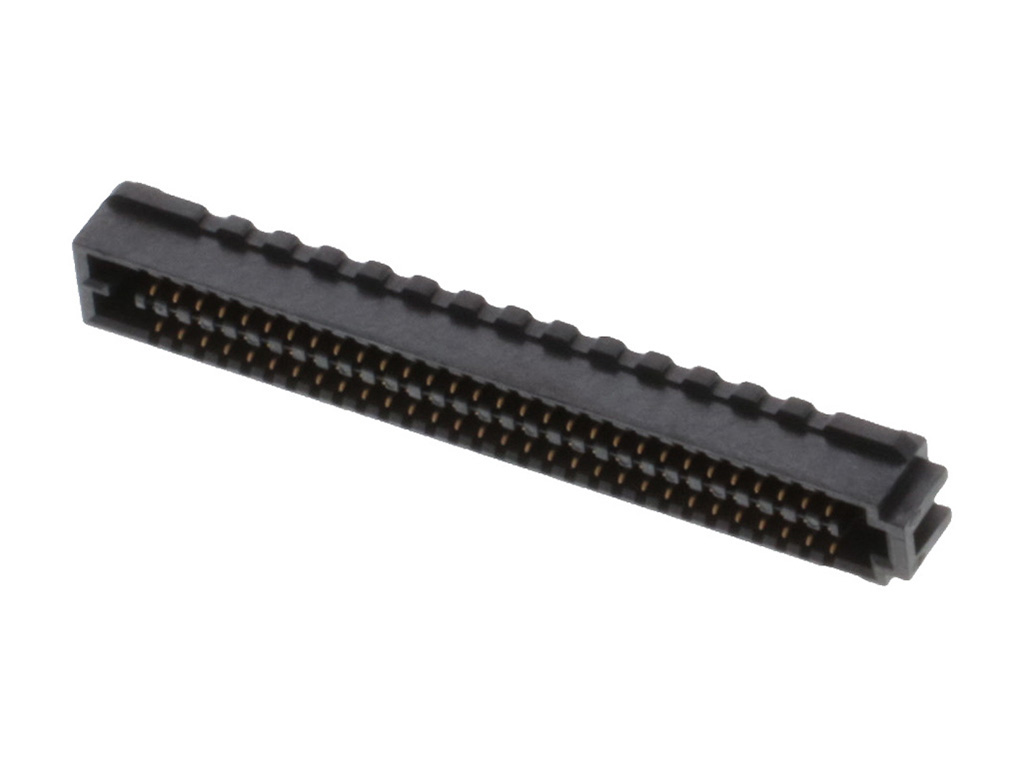

465573145 SEARAY by Molex
SEARAY Slim Receptacle, 120 Circuits, 5.00mm Unmated Height, 4 Rows, with Pegs, Solder Charge Lead-Free
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
46557-3145,
0465573145 |
Where to Buy
Prices starting from US$14.26
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$15.10
|
142
in stock
|
Buy Now |
|
Conrad
from US$15.06
|
142
in stock
|
Buy Now |
|
RS
from US$25.76
|
0
in stock
|
Buy Now |
|
Avnet America
from US$15.83
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$17.73
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$15.36
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$14.26
|
0
in stock
|
Buy Now |
|
Farnell
from US$17.51
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | SEARAY |
|---|---|
| Application | Board-to-Board, Mezzanine |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 2.7A |
| Voltage Maximum | 240V AC |
Physical |
|
|---|---|
| Circuits Loaded | 120 |
| Circuits Maximum | 120 |
| Color Resin | Black |
| Durability Mating Cycles Max | 100 |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | Yes |
| Lock To Mating Part | No |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 1.515/g |
| Number Of Rows | 4 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 2.18mm |
| Pitch Mating Interface | 1.27mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Robotic Placement | Pick and Place Cap |
| Stackable | No |
| Temperature Range Operating | -55° to +125°C |
| Termination Interface Style | Surface Mount |
| Unmated Height | 5.00mm |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connectors 1.27Mm Searay Recpt 4Row 120P 3.5Mm Sh Rohs Compliant: Yes |Molex 46557-3145 | Newark Electronics |
| Molex Stiftgehäuse-Kabel Polzahl Gesamt 120 465573145 1 St. Tape on Full reel | Conrad |
| Molex 46557-3145 PCB Socket | RS |
| SeaRay Slim Rect Assy 04X30X 5.1 Tin | RS Americas |
| SEARAY SLIM RECT ASSY 04X30X .1 TIN | Heilind Americas |
| SEARAY SLIM RECT ASSY 04X30X 5.1 TIN | Farnell |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 465573145?
Additional datasheets, footprints and schematics for 465573145 are listed on our Part Details page. You can also find images and similar parts to 465573145 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 465573145 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 465573145 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 465573145 fall under?
The 465573145 is listed under Board-to-Board Connectors.
Can I view similar or alternative parts?
You can view similar parts to 465573145 when available in the Board-to-Board Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 465573145 you can contact the distributor directly for product support, shipping queries etc.
Is the 465573145 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 465573145 have stock available?
Authorised distributors including Newark Electronics, Conrad, RS, Avnet America and RS Americas have stock available or on a lead time for 465573145.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 465573145 often in real-time on the comparison pages.
What if I can't find stock of 465573145?
You can fill out our help required form which you can use to request a quote for 465573145 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
