465574145 SEARAY by Molex

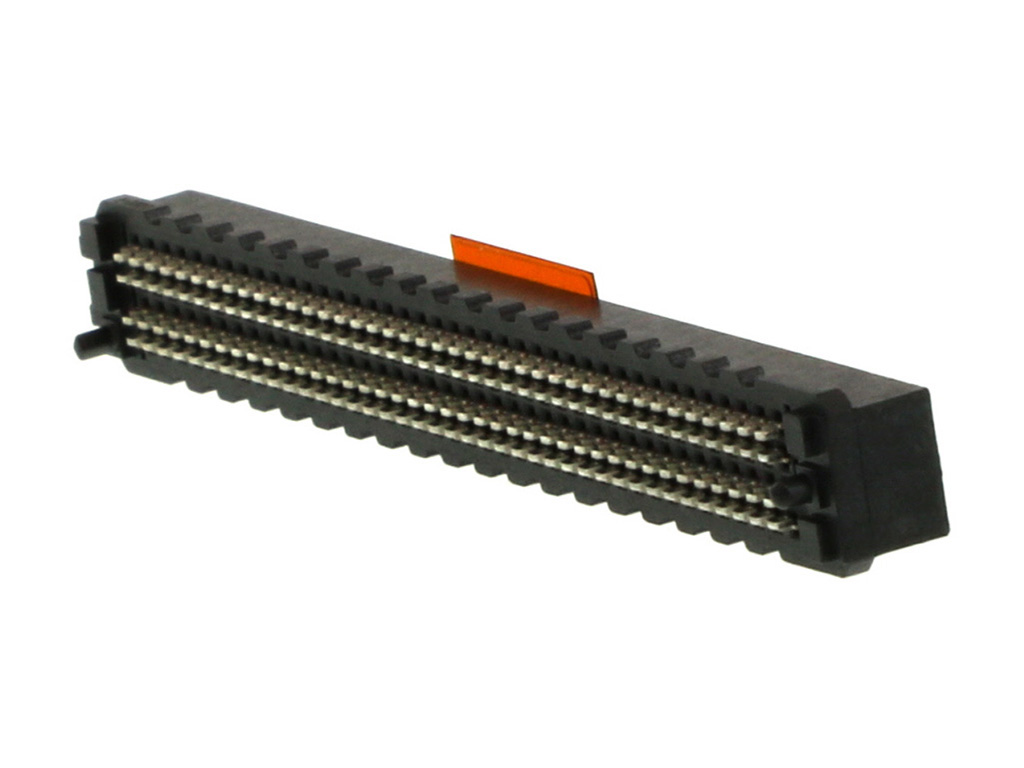

SEARAY Slim Receptacle, 160 Circuits, 5.00mm Unmated Height, 4 Rows, with Pegs, Solder Charge Lead-Free
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
46557-4145,
0465574145 |
Where to Buy
Prices starting from US$4.42
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$22.22
|
20,728
in stock
|
Buy Now |
|
TME
from US$10.56
|
20,300
in stock
|
Buy Now |
|
Farnell
from US$21.42
|
18,978
in stock
|
Buy Now |
|
Newark Electronics
from US$4.42
|
5
in stock
|
Buy Now |
|
element14
from US$20.29
|
5
in stock
|
Buy Now |
|
RS
from US$21.33
|
0
in stock
|
Buy Now |
|
Sager
from US$19.93
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$19.61
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$12.47
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | SEARAY |
|---|---|
| Application | Board-to-Board, Mezzanine |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 2.7A |
| Voltage Maximum | 240V AC |
Physical |
|
|---|---|
| Circuits Loaded | 160 |
| Circuits Maximum | 160 |
| Color Resin | Black |
| Durability Mating Cycles Max | 100 |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | Yes |
| Lock To Mating Part | No |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 1.962/g |
| Number Of Rows | 4 |
| Orientation | Vertical |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 2.18mm |
| Pitch Mating Interface | 1.27mm |
| Pitch Termination Interface | 1.27mm |
| Plating Min Mating | 0.762µm |
| Plating Min Termination | 2.540µm |
| Polarized To Mating Part | Yes |
| Polarized To Pcb | Yes |
| Robotic Placement | Pick and Place Cap |
| Stackable | No |
| Temperature Range Operating | -55° to +125°C |
| Termination Interface Style | Surface Mount |
| Unmated Height | 5.00mm |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Stiftgehäuse-Kabel Polzahl Gesamt 160 465574145 1 St. Tape | Conrad |
| Connector: PCB to PCB | TME |
| MEZZANINE - ARRAYS | Farnell |
| Connector, Stacking, Rcpt, 160Pos, 4Row | Newark Electronics |
| CONNECTOR, STACKING, RCPT, 160POS, 4ROW | element14 |
| Molex 46557-4145 PCB Socket | RS |
| Board to Board & Mezzanine Connectors SEARAY SLIM REC 4R 160C | Sager |
| SEARAY SLIM RECT ASSY 04X .1 TIN | Heilind Americas |
