466230401 Micro-Fit BMI by Molex

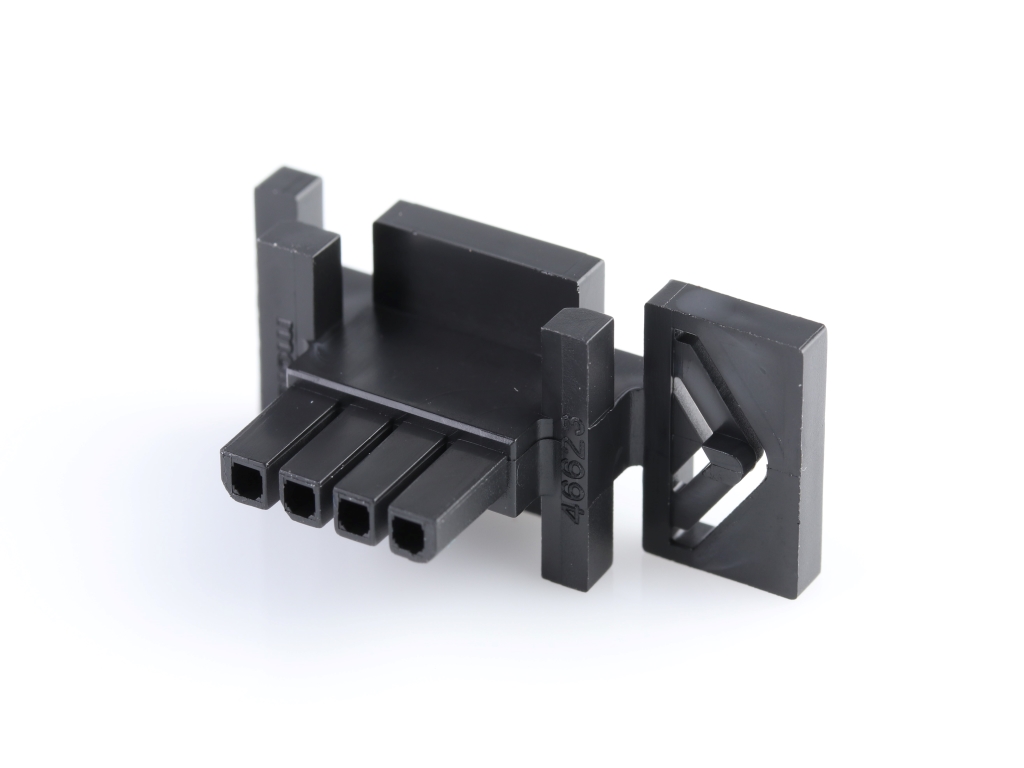

Micro-Fit BMI Receptacle Housing, Single Row, Panel Mount, 4 Circuits, Nylon, UL 94V-0
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
46623-0401,
0466230401 |
Where to Buy
Prices starting from US$0.19
| Distributor | Stock | ||
|---|---|---|---|
|
Heilind Americas
from US$0.27
|
525
in stock
|
Buy Now |
|
Newark Electronics
from US$0.39
|
9
in stock
|
Buy Now |
|
element14
from US$0.27
|
9
in stock
|
Buy Now |
|
Farnell
from US$0.40
|
9
in stock
|
Buy Now |
|
Avnet America
from US$0.19
|
0
in stock
|
Buy Now |
|
RS Americas
from US$0.51
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$0.19
|
0
in stock
|
Buy Now |
|
Sager
from US$0.23
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.28
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Micro-Fit BMI |
|---|---|
| Application | Power, Wire-to-Board, Wire-to-Wire |
Physical |
|
|---|---|
| Circuits Maximum | 4 |
| Color Resin | Black |
| Gender | Receptacle |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Material Resin | Nylon |
| Net Weight | 1.287/g |
| Number Of Rows | 1 |
| Panel Mount | Yes |
| Pitch Mating Interface | 3.00mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MICROFIT3.0 BMI SR FLOATING RECEPT 4CKT | Heilind Americas |
| Connector Housing, Rcpt, 4Pos | Newark Electronics |
| CONNECTOR HOUSING, RCPT, 4POS | element14 |
| Micro-Fit BMI Receptacle Housing Single Row Panel Mount 4 Circuits Nylon Black Bag | Avnet America |
| MICRO-FIT BMI RECEPTACLE HOUSING | RS Americas |
| MICRO-FIT 3.0 BMI REC 1X04P | TTI Americas |
| Headers & Wire Housings MICRO-FIT 3.0 BMI REC 1X04P | Sager |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 466230401?
Additional datasheets, footprints and schematics for 466230401 are listed on our Part Details page. You can also find images and similar parts to 466230401 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 466230401 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 466230401 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 466230401 fall under?
The 466230401 is listed under Connector Housings.
Can I view similar or alternative parts?
You can view similar parts to 466230401 when available in the Connector Housings range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 466230401 you can contact the distributor directly for product support, shipping queries etc.
Is the 466230401 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 466230401 have stock available?
Authorised distributors including Heilind Americas, Newark Electronics, element14, Farnell and Avnet America have stock available or on a lead time for 466230401.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 466230401 often in real-time on the comparison pages.
What if I can't find stock of 466230401?
You can fill out our help required form which you can use to request a quote for 466230401 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
