469922410 Mini-Fit Jr. by Molex

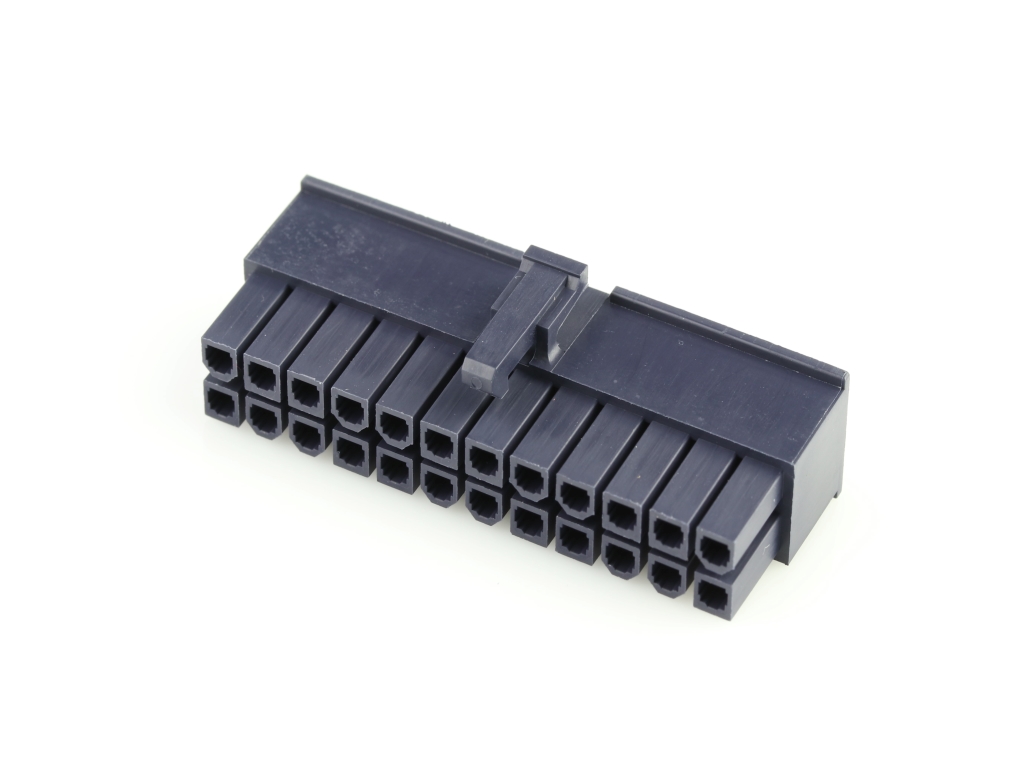

Mini-Fit Jr. Receptacle Housing, Dual Row, Nylon 6/6 UL 94V-2, 24 Circuits, Glow-Wire Capable, Black
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
46992-2410,
0469922410 |
Where to Buy
Prices starting from US$0.69
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$1.36
|
1,806
in stock
|
Buy Now |
|
element14
from US$1.39
|
1,806
in stock
|
Buy Now |
|
Farnell
from US$1.63
|
1,806
in stock
|
Buy Now |
|
Heilind Americas
from US$1.13
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.69
|
0
in stock
|
Buy Now |
|
TTI Asia
from US$1.13
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit Jr. |
|---|---|
| Application | Wire-to-Board, Wire-to-Wire |
Physical |
|
|---|---|
| Circuits Maximum | 24 |
| Color Resin | Black |
| Gender | Receptacle |
| Glow Wire Capable | Yes |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Resin | Nylon |
| Net Weight | 5.163/g |
| Number Of Rows | 2 |
| Panel Mount | No |
| Pitch Mating Interface | 4.20mm |
| Pitch Termination Interface | 4.20mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Minifitjr Rec Hsg Sr V2 24Ckt Black Rohs Compliant: Yes |Molex 46992-2410 | Newark Electronics |
| CONNECTOR HOUSING, RCPT, 24POS, 4.2MM | element14 |
| MINIFITJR REC HSG SR V2 24CKT BLACK | Heilind Americas |
| MINI-FIT JR REC 24P | TTI Asia |
