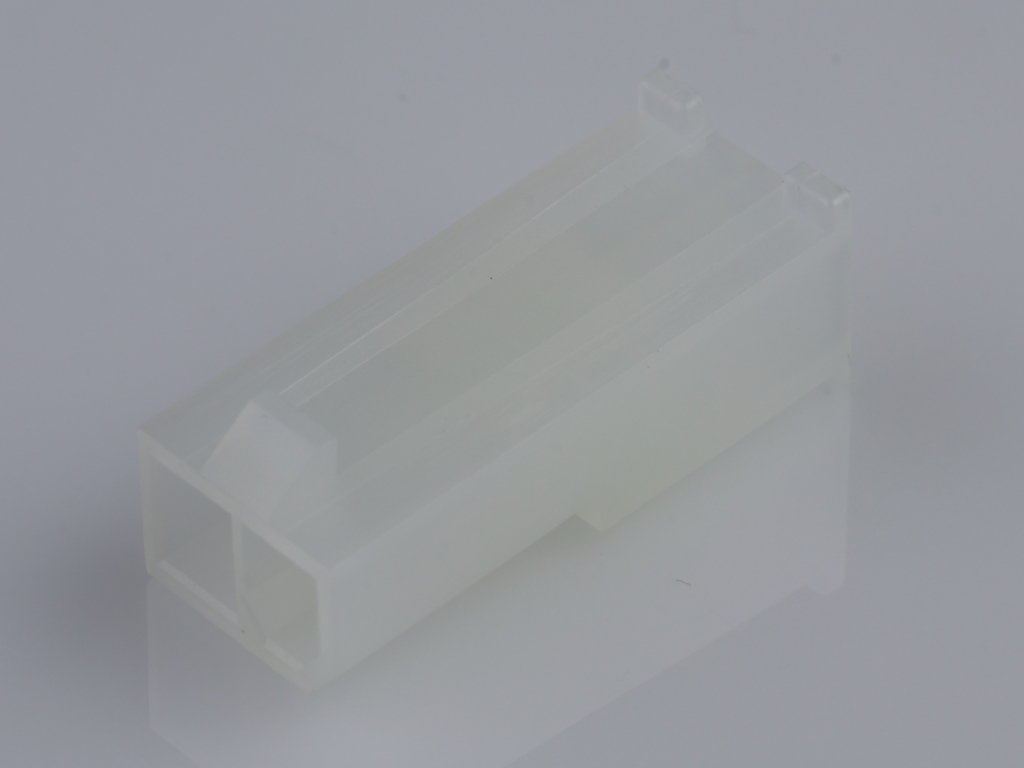

469990656 Mini-Fit Jr. by Molex
Mini-Fit Jr. Plug Housing, Single Row, 2 Circuits, UL 94V-2, without Panel Mounting Ears, Natural
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
46999-0656,
0469990656, 5559-02P3 |
Where to Buy
Prices starting from US$0.08
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$0.13
|
14,900
in stock
|
Buy Now |
|
Offical Electronic
-
|
2,748
in stock
|
Buy Now |
|
Newark Electronics
from US$0.17
|
0
in stock
|
Buy Now |
|
RS Americas
from US$0.13
|
0
in stock
|
Buy Now |
|
element14
from US$0.16
|
0
in stock
|
Buy Now |
|
Conrad
from US$0.29
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$0.10
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$0.10
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.08
|
0
in stock
|
Buy Now |
|
Farnell
from US$0.18
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mini-Fit Jr. |
|---|---|
| Application | Wire-to-Wire |
Physical |
|
|---|---|
| Circuits Maximum | 2 |
| Color Resin | Natural |
| Flammability | 94V-0 |
| Gender | Plug |
| Glow Wire Capable | No |
| Keying To Mating Part | No |
| Lock To Mating Part | Yes |
| Material Resin | Nylon |
| Net Weight | 0.839/g |
| Number Of Rows | 1 |
| Panel Mount | No |
| Pitch Mating Interface | 4.20mm |
| Pitch Termination Interface | 4.20mm |
| Polarized To Mating Part | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MINI-FIT JR PLG 01X02P 94V-2 | TTI Americas |
| Minifitjr Sr Plug Freehng V-2 2 Ckt Rohs Compliant: Yes |Molex 46999-0656 | Newark Electronics |
| MINIFITJR SR PLUG FREEHNG V-2 2 CKT | RS Americas |
| CONNECTOR HOUSING, PLUG, 2POS, 4.2MM | element14 |
| Molex Stiftgehäuse-Kabel 469990656 1 St. | Conrad |
| MINI-FIT JR. PLUG HOUSING | TTI Europe |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 469990656?
Additional datasheets, footprints and schematics for 469990656 are listed on our Part Details page. You can also find images and similar parts to 469990656 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 469990656 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 469990656 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 469990656 fall under?
The 469990656 is listed under Connector Housings.
Can I view similar or alternative parts?
You can view similar parts to 469990656 when available in the Connector Housings range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 469990656 you can contact the distributor directly for product support, shipping queries etc.
Is the 469990656 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 469990656 have stock available?
Authorised distributors including TTI Americas, Offical Electronic, Newark Electronics, RS Americas and element14 have stock available or on a lead time for 469990656.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 469990656 often in real-time on the comparison pages.
What if I can't find stock of 469990656?
You can fill out our help required form which you can use to request a quote for 469990656 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
