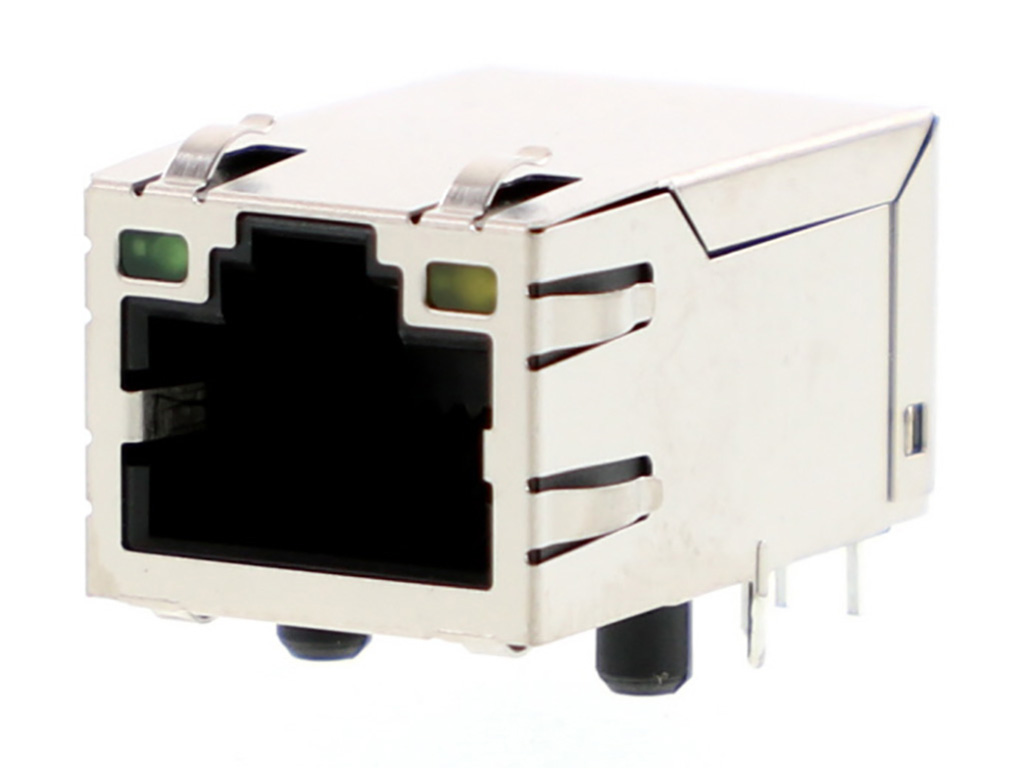

480250002 Magnetic Jack,RJ45 by Molex
Modular Jack, Right-Angle, 10/100, with Integrated Magnetic and LED, 8/8, Tail Length 2.80mm for IR Reflow, Lead-Free
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
48025-0002,
0480250002 |
Where to Buy
Prices starting from US$5.16
| Distributor | Stock | ||
|---|---|---|---|
|
TTI Americas
from US$6.62
|
2,280
in stock
|
Buy Now |
|
Farnell
from US$13.53
|
446
in stock
|
Buy Now |
|
Heilind Americas
from US$5.78
|
33
in stock
|
Buy Now |
|
RS
from US$10.53
|
0
in stock
|
Buy Now |
|
Newark Electronics
from US$8.20
|
0
in stock
|
Buy Now |
|
Avnet America
from US$5.16
|
0
in stock
|
Buy Now |
|
TME
from US$9.18
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$7.35
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$8.02
|
0
in stock
|
Buy Now |
|
Sager
from US$6.78
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$7.39
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$6.74
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Magnetic Jack,RJ45 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Grounding To Panel | Panel Ground Tab |
| Shielded | Yes |
| Voltage Maximum | 150V AC (RMS) |
Physical |
|
|---|---|
| Boot Color | N/A |
| Color Resin | Black |
| Durability Mating Cycles Max | 750 |
| Flammability | 94V-0 |
| Inverted Top Latch | Yes |
| Jack Height | 13.30mm |
| Keying To Mating Part | Yes |
| Light Pipes Leds | LEDs |
| Material Metal | Brass, Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | High Temperature Thermoplastic |
| Net Weight | 7.000/g |
| Orientation | Right Angle (Side Entry) |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 8/8 |
| Temperature Range Operating | -40° to +70°C |
| Termination Interface Style | Through Hole |
| Waterproof Dustproof | No |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MDJCK 8/8 RA TH W/MAGNETIC | TTI Americas |
| MODULAR JACK, RIGHT-ANGLE, 10-100, | Farnell |
| MODR JK RA DIP W/LED FOR IR R FLOW L/F | Heilind Americas |
| Molex 48025-0002 RJ45 Connector | RS |
| Cat5 Modular Jack, 8 Position, 1 Port | Newark Electronics |
| Conn Modular Jack Receptacle 8 POS 2.54mm Solder RA Through Hole 8 Terminal Single Port Tray | Avnet America |
| Connector: RJ45 | TME |
| MODR JK RA DIP W/LED FOR IR REFLOW L/F | RS Americas |
| 8/8 MOD JACK RT ANGLE | TTI Europe |
| Modular Connectors / Ethernet Connectors MDJCK 8/8 RA TH W/MAGNETIC | Sager |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 480250002?
Additional datasheets, footprints and schematics for 480250002 are listed on our Part Details page. You can also find images and similar parts to 480250002 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 480250002 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 480250002 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 480250002 fall under?
The 480250002 is listed under Modular Jacks and Plugs.
Can I view similar or alternative parts?
You can view similar parts to 480250002 when available in the Modular Jacks and Plugs range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 480250002 you can contact the distributor directly for product support, shipping queries etc.
Is the 480250002 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 480250002 have stock available?
Authorised distributors including TTI Americas, Farnell, Heilind Americas, RS and Newark Electronics have stock available or on a lead time for 480250002.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 480250002 often in real-time on the comparison pages.
What if I can't find stock of 480250002?
You can fill out our help required form which you can use to request a quote for 480250002 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
