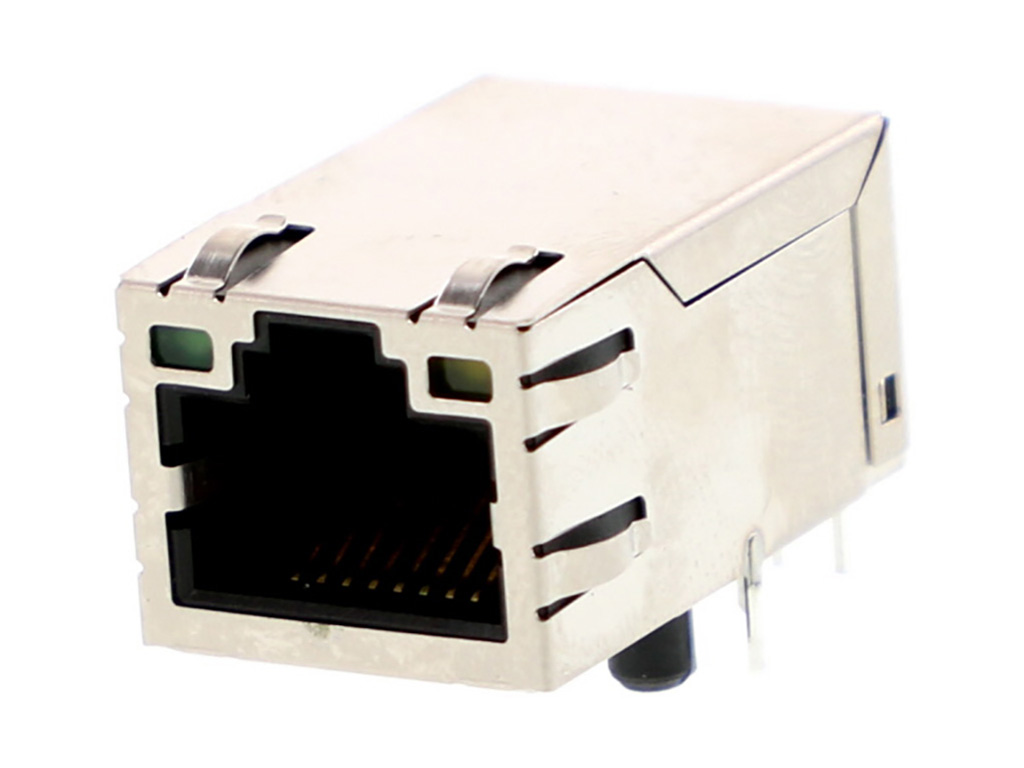

480251190 Magnetic Jack,RJ45 by Molex
Modular Jack, Right-Angle, 10/100, with Integrated Magnetic and LED, 8/8, Lead-Free
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
48025-1190,
0480251190 |
Where to Buy
Prices starting from US$4.06
| Distributor | Stock | ||
|---|---|---|---|
|
Conrad
from US$8.73
|
3,835
in stock
|
Buy Now |
|
Farnell
from US$8.29
|
3,452
in stock
|
Buy Now |
|
RS
from US$8.87
|
101
in stock
|
Buy Now |
|
Newark Electronics
from US$9.31
|
60
in stock
|
Buy Now |
|
TME
from US$9.03
|
6
in stock
|
Buy Now |
|
Avnet America
from US$4.06
|
0
in stock
|
Buy Now |
|
|
RS Americas
from US$7.27
|
0
in stock
|
Buy Now |
|
TTI Americas
from US$4.47
|
0
in stock
|
Buy Now |
|
|
TTI Europe
from US$7.10
|
0
in stock
|
Buy Now |
|
Sager
from US$5.54
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$9.67
|
0
in stock
|
Buy Now |
|
Avnet Abacus
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Magnetic Jack,RJ45 |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.5A |
| Grounding To Panel | Panel Ground Tab |
| Shielded | Yes |
| Voltage Maximum | 150V AC (RMS) |
Physical |
|
|---|---|
| Boot Color | N/A |
| Color Resin | Black |
| Durability Mating Cycles Max | 750 |
| Flammability | 94V-0 |
| Inverted Top Latch | Yes |
| Jack Height | 13.30mm |
| Keying To Mating Part | Yes |
| Light Pipes Leds | LEDs |
| Material Metal | Brass, Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Material Resin | Nylon |
| Net Weight | 7.300/g |
| Orientation | Right Angle (Side Entry) |
| Pcb Locator | Yes |
| Pcb Retention | Yes |
| Pcb Thickness Recommended | 1.60mm |
| Pitch Mating Interface | 1.02mm |
| Pitch Termination Interface | 1.27mm |
| Port Configuration | 1x1 |
| Positions Loaded Contacts | 8/8 |
| Temperature Range Operating | -40° to +70°C |
| Termination Interface Style | Through Hole |
| Waterproof Dustproof | No |
| Wire Cable Type | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Molex Molex 480251190 RJ45 LED Transformer 480251190 Buchse Polzahl Sensoren 8P8C 1 St. | Conrad |
| MOD CONN, R/A RJ45 JACK, 8P8C, 1PORT, TH | Farnell |
| Molex 48025-1190 RJ45 Connector | RS |
| Rj45 Conn, Jack, 8P8C, 1Port, Th | Newark Electronics |
| Connector: RJ45 | TME |
| Conn RJ45 Receptacle 8 POS 1.02mm Solder RA Through Hole 12 Terminal 1 Port Tray | Avnet America |
| MODULAR JACK WINTEGRATED MAGNETIC WLED | RS Americas |
| MDJCK W/MAGNETIC | TTI Americas |
| 8/8 MOD JACK RT ANGLE | TTI Europe |
| Modular Connectors / Ethernet Connectors MDJCK W/MAGNETIC | Sager |
