500398100 Mizu-P25 Waterproof by Molex

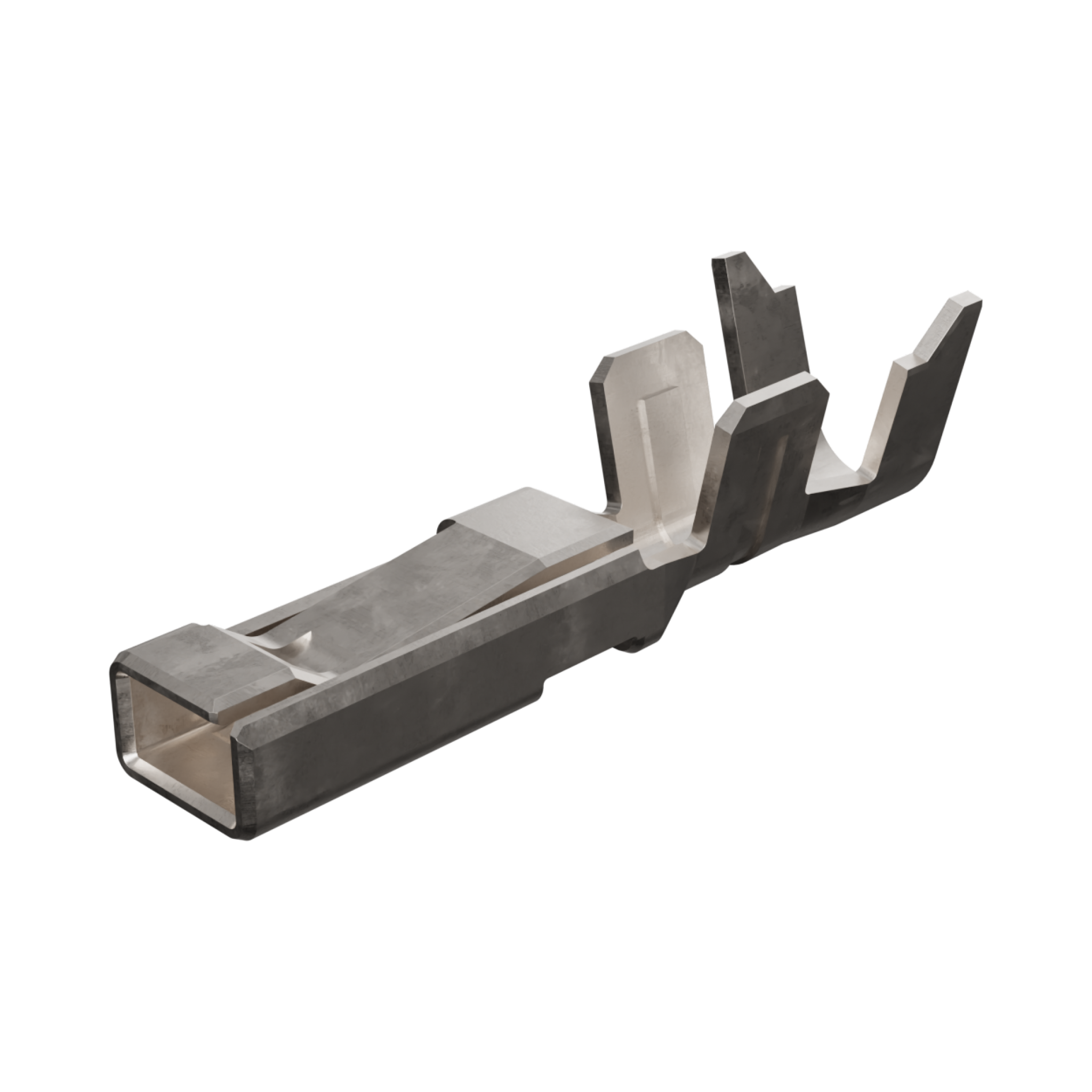

Mizu-P25 Female Crimp Terminal, 2.50mm Pitch, 22-20 AWG, Bag
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
50039-8100,
0500398100 |
Where to Buy
Prices starting from US$0.06
| Distributor | Stock | ||
|---|---|---|---|
|
element14
from US$0.12
|
6,818
in stock
|
Buy Now |
|
Farnell
from US$0.14
|
6,818
in stock
|
Buy Now |
|
TME
from US$0.14
|
424
in stock
|
Buy Now |
|
Newark Electronics
from US$0.17
|
74
in stock
|
Buy Now |
|
Heilind Americas
from US$0.12
|
1
in stock
|
Buy Now |
|
Conrad
from US$0.12
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$0.10
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.09
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$0.06
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Mizu-P25 Waterproof |
|---|---|
| Application | Wire-to-Wire |
Electrical |
|
|---|---|
| Voltage Maximum | 250V |
Physical |
|
|---|---|
| Gender | Female |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Tin |
| Material Plating Termination | Tin |
| Net Weight | 60.500/mg |
| Packaging Alternative Part | Array |
| Plating Min Mating | 0.889µm |
| Plating Min Termination | 0.914µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 1.40-1.90mm |
| Wire Size Awg | 20, 22 |
| Wire Size Mm | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| CONTACT, SOCKET, CRIMP, 20AWG | element14 |
| Connector: wire-wire | TME |
| Contact, Socket, Crimp, 20Awg | Newark Electronics |
| SPLASH PROOF FEMALE TERM 50039 | Heilind Americas |
| Molex 500398100 2.5 FEM TERM SPLASH 500398100 Molex Inhalt: 1 St. | Conrad |
| 2.5MM MIZU-P25 FEMALE TERM | TTI Europe |
| MIZU-P25 CRMP TERMINAL | TTI Asia |
