500798025 PicoBlade by Molex

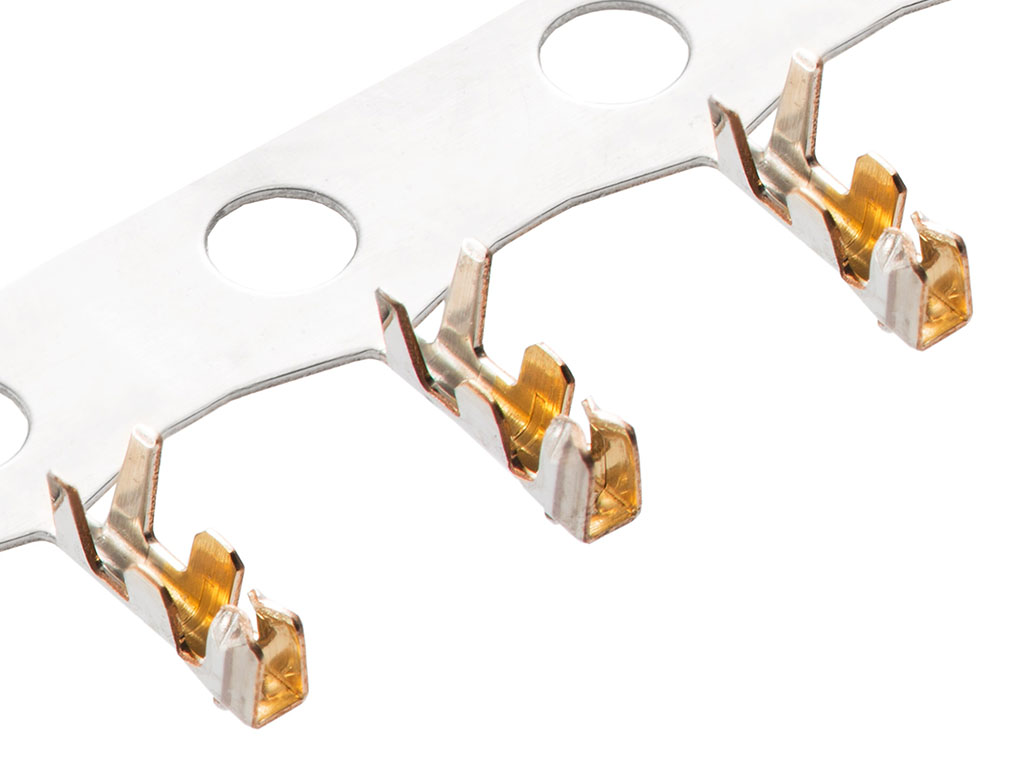

1.25mm Pitch, PicoBlade Female Crimp Terminal, 0.38µm Gold (Au) Plating, 28-26 AWG, Reel
| Status: | Obsolete |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: |
50079-8025,
0500798025 |
Specifications
| Product Name | PicoBlade |
|---|---|
| Application | Wire-to-Board, Wire-to-Wire |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 1.0A |
| Voltage Maximum | 125V AC (RMS)/DC |
Physical |
|
|---|---|
| Durability Mating Cycles Max | 30 |
| Gender | Female |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Net Weight | 29.330/mg |
| Plating Min Mating | 0.380µm |
| Termination Interface Style | Crimp or Compression |
| Wire Insulation Diameter | 1.04mm max. |
| Wire Size Awg | 26, 28 |
| Wire Size Mm | N/A |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| 1.25 W/B CRIMP REC TREM GOLD PLT | RS Americas |
| CONTACT, SOCKET, CRIMP, 28-26AWG | element14 |
| Contact, Socket, Crimp, 28-26Awg | Newark Electronics |
| Headers & Wire Housings 1.25MM CRMP TERM 26-28AWG AU | Sager |
| Contact SKT Crimp ST Cable Mount | Avnet Abacus |
