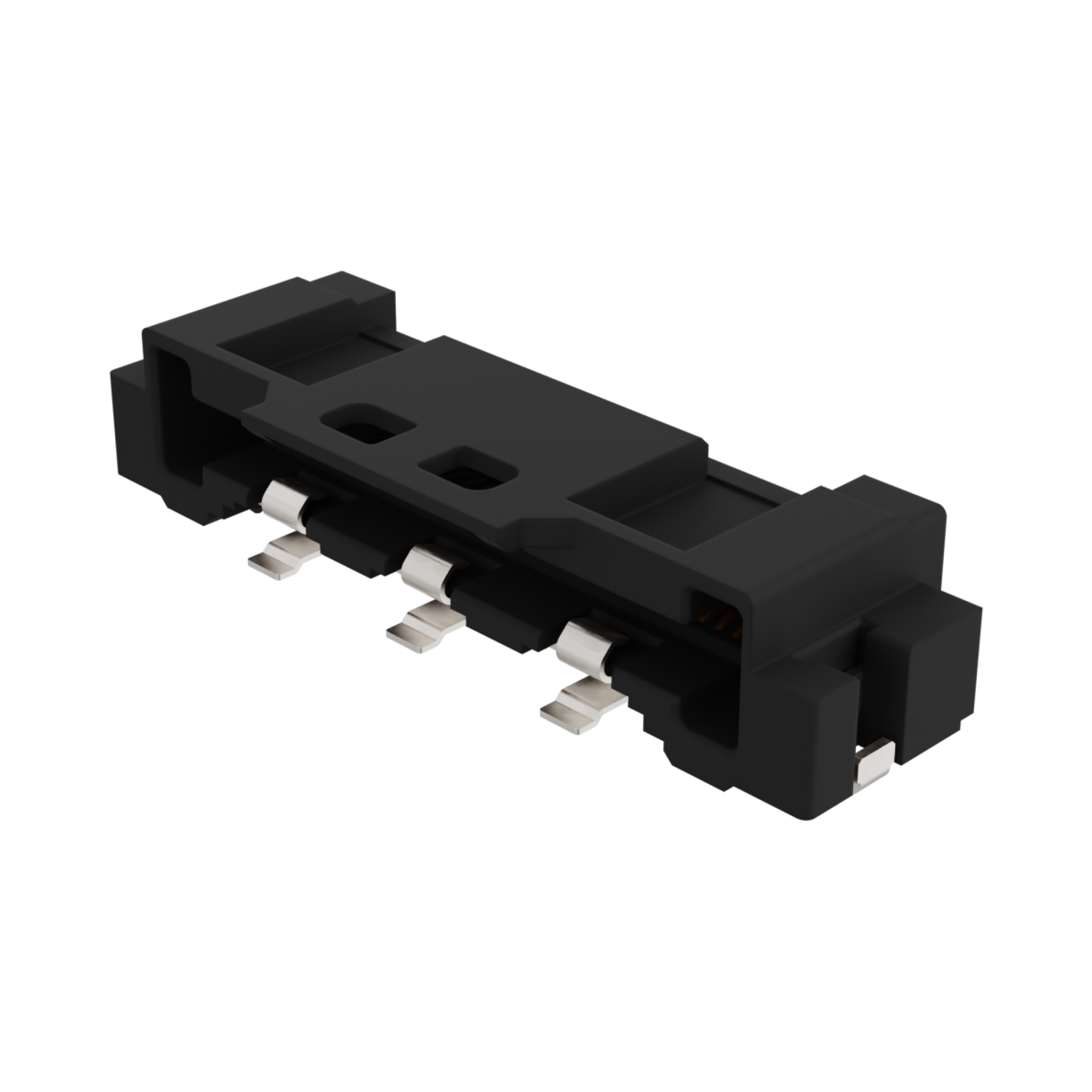

5018643091 Easy-On by Molex
Easy-On FFC/FPC-to-Board Connector, 0.50mm Pitch, Receptacle Housing Assembly, Right-Angle, Surface Mount, with Grounding Terminals, Gold (Au) Plating, 30 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 501864-3091 |
Where to Buy
Prices starting from US$1.27
| Distributor | Stock | ||
|---|---|---|---|
|
Newark Electronics
from US$2.10
|
900
in stock
|
Buy Now |
|
element14
from US$1.91
|
900
in stock
|
Buy Now |
|
Farnell
from US$1.90
|
900
in stock
|
Buy Now |
|
TME
from US$1.76
|
180
in stock
|
Buy Now |
|
Rutronik
from US$1.50
|
0
in stock
|
Buy Now |
|
Conrad
from US$2.80
|
0
in stock
|
Buy Now |
|
TTI Europe
from US$1.44
|
0
in stock
|
Buy Now |
|
Sager
from US$1.77
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.75
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$1.27
|
0
in stock
|
Buy Now |
|
|
TTI Asia
from US$1.52
|
0
in stock
|
Buy Now |
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | Easy-On |
|---|
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V |
Physical |
|
|---|---|
| Actuator Type | Flexi-Latch |
| Circuits Loaded | 30 |
| Color Resin | Black |
| Contact Position | Bottom |
| Durability Mating Cycles Max | 20 |
| Flammability | 94V-0 |
| Mated Height | 4.85mm |
| Material Metal | Phosphor Bronze |
| Material Plating Mating | Gold |
| Material Plating Termination | Gold |
| Material Resin | Liquid Crystal Polymer (LCP) |
| Net Weight | 741.465/mg |
| Orientation | Right Angle |
| Pcb Locator | Yes |
| Pcb Mounting | Surface Mount |
| Pcb Retention | No |
| Pitch Mating Interface | 0.50mm |
| Plating Min Mating | 0.100µm |
| Plating Min Termination | 0.051µm |
| Polarized To Pcb | Yes |
| Stackable | No |
| Temperature Range Operating | -40° to +105°C |
| Wire Cable Type | FFC/FPC |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| Connector, Ffc, 30Pos, 1Row, 0.5Mm | Newark Electronics |
| CONNECTOR, FFC, 30POS, 1ROW, 0.5MM | element14 |
| Connector: FFC/FPC | TME |
| 30P FFC/FPC ZIF SMT 90° 0.50mm Au | Rutronik |
| Molex Einbau-Buchsenleiste (Standard) Polzahl Gesamt 30 Rastermaß: 0.5 mm 5018643091 1 St. Tape on Full reel | Conrad |
| 0.50MM PITCH FC/FPC-TO-BOARD | TTI Europe |
| FFC & FPC Connectors .5MM REC 30P RA SMT | Sager |
| 0.5 FFC TO BOARD RA TYPE EMBSTPPKG | Heilind Americas |
| .5MM REC 30P RA SMT | TTI Asia |
| FFC/FPC Connector Socket 30 Position 0.5 mm Solder Right Angle Surface Mount Emboss T/R | Avnet Asia |
