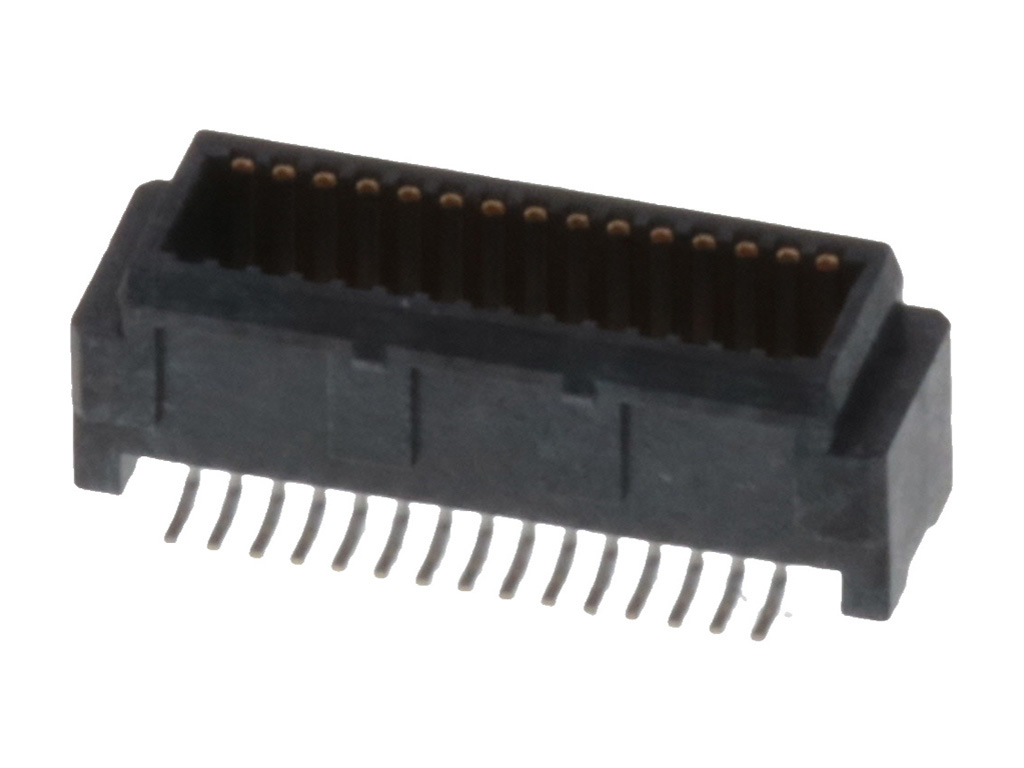

5019203001 SlimStack by Molex
0.50mm Pitch SlimStack Board-to-Board Plug, Surface Mount, Dual Row, Vertical Stacking, 4.00mm Stack Height, without Solder Tabs, 30 Circuits
| Status: | Active |
|---|---|
| Series: | - |
| RoHS: | Compliant |
| Aliases: | 501920-3001 |
Where to Buy
Prices starting from US$0.88
| Distributor | Stock | ||
|---|---|---|---|
|
Farnell
from US$1.49
|
15,000
in stock
|
Buy Now |
|
Newark Electronics
from US$2.27
|
1,184
in stock
|
Buy Now |
|
element14
from US$2.43
|
1,184
in stock
|
Buy Now |
|
TME
from US$1.10
|
0
in stock
|
Buy Now |
|
Sager
from US$2.73
|
0
in stock
|
Buy Now |
|
Heilind Americas
from US$1.90
|
0
in stock
|
Buy Now |
|
|
Heilind Europe
from US$0.88
|
0
in stock
|
Buy Now |
|
Avnet Asia
-
|
0
in stock
|
Buy Now |
| Buy Now |
Specifications
| Product Name | SlimStack |
|---|---|
| Application | Board-to-Board |
Electrical |
|
|---|---|
| Current Maximum Per Contact | 0.5A |
| Voltage Maximum | 50V AC (RMS)/DC |
Physical |
|
|---|---|
| Breakaway | No |
| Circuits Loaded | 30 |
| Circuits Maximum | 30 |
| Color Resin | Black |
| Durability Mating Cycles Max | 30 |
| Flammability | 94V-0 |
| Glow Wire Capable | No |
| Guide To Mating Part | No |
| Keying To Mating Part | No |
| Lock To Mating Part | No |
| Mated Height | 4.00mm |
| Mated Width | 5.40mm |
| Material Metal | Copper Alloy |
| Material Plating Mating | Gold |
| Material Plating Termination | Tin |
| Net Weight | 106.250/mg |
| Number Of Rows | 2 |
| Orientation | Vertical |
| Pcb Locator | No |
| Pcb Retention | No |
| Pitch Mating Interface | 0.50mm |
| Polarized To Mating Part | No |
| Polarized To Pcb | No |
| Temperature Range Operating | -40° to +105°C |
| Termination Interface Style | Surface Mount |
Last 6 months Inventory & Pricing History
Alternative Descriptions
| MEZZANINE - ARRAYS PC BOARD | Farnell |
| Mezzanine Conn, Hdr, 30Pos, 2Row, 0.5Mm Rohs Compliant: Yes |Molex 501920-3001 | Newark Electronics |
| MEZZANINE CONN, HDR, 30POS, 2ROW, 0.5MM | element14 |
| Connector: PCB to PCB | TME |
| Board to Board & Mezzanine Connectors .5MM PLG HSG HSG ASSY 30P | Sager |
| 0.5 B/B PLUG HSG ASSY 30C BSTP PKG | Heilind Americas |
| Conn Board to Board HDR 30 POS 0.5mm Solder ST SMD T/R | Avnet Asia |
Frequently Asked Questions
Where can I find additional details, specifications and documents for a 5019203001?
Additional datasheets, footprints and schematics for 5019203001 are listed on our Part Details page. You can also find images and similar parts to 5019203001 on this page.
What pricing and inventory information can I view?
Distributor pricing and stock information is available for 5019203001 on our Product Comparison page. Access via the 'View Pricing & Stock' button to view 5019203001 price breaks, MOQs, lead times, inventory and SKUs from distributors.
What category does 5019203001 fall under?
The 5019203001 is listed under Board-to-Board Connectors.
Can I view similar or alternative parts?
You can view similar parts to 5019203001 when available in the Board-to-Board Connectors range under the specifications section at the bottom of the details page.
Who can I contact for technical support of the product?
Submit any questions directly to the customer support team of the distributor listing the product. For the 5019203001 you can contact the distributor directly for product support, shipping queries etc.
Is the 5019203001 RoHS compliant?
Yes. This part has been flagged as RoHS Compliant by Molex.
Which authorised distributors for 5019203001 have stock available?
Authorised distributors including Farnell, Newark Electronics, element14, TME and Sager have stock available or on a lead time for 5019203001.
How do I check stock and lead times for all distributors?
Stock availability and lead times will be displayed for 5019203001 often in real-time on the comparison pages.
What if I can't find stock of 5019203001?
You can fill out our help required form which you can use to request a quote for 5019203001 from some of our verified obsolescence suppliers. Alternatively, contact us via our web chat in the bottom left of your screen and one of our team will try to help.
